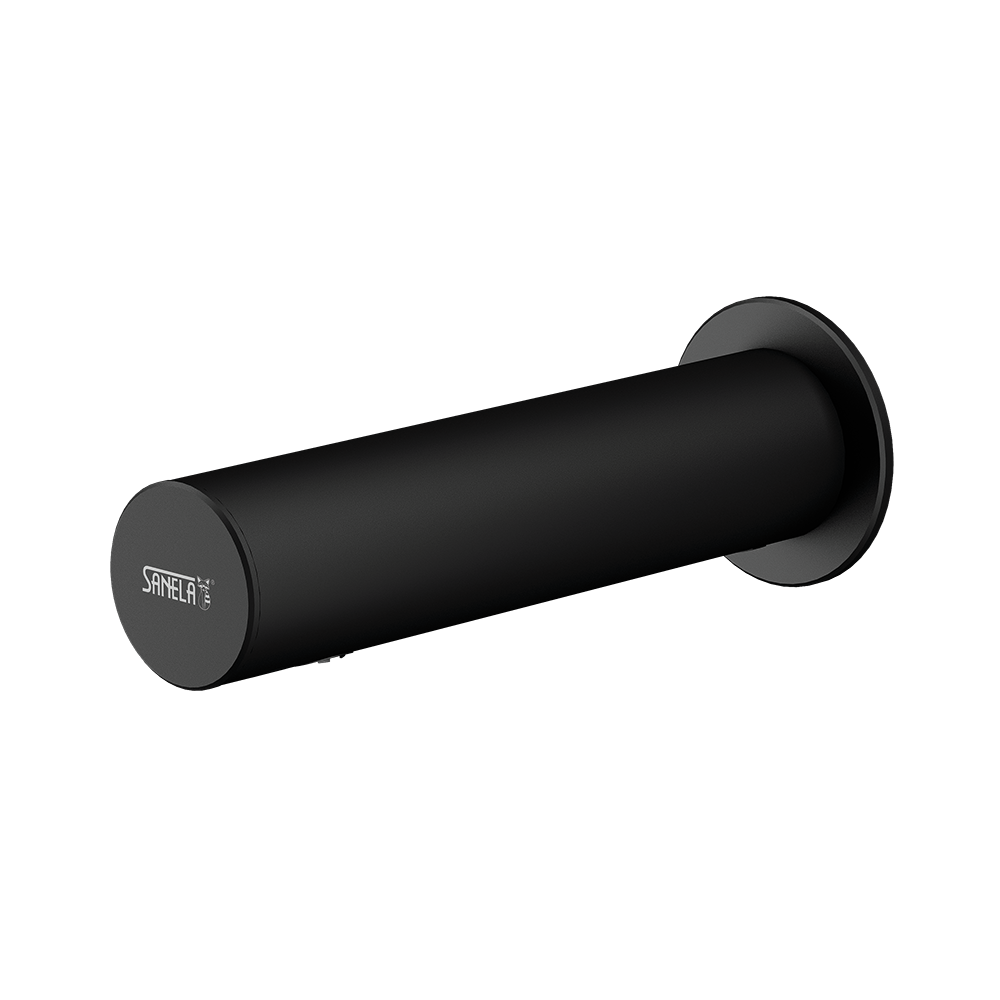

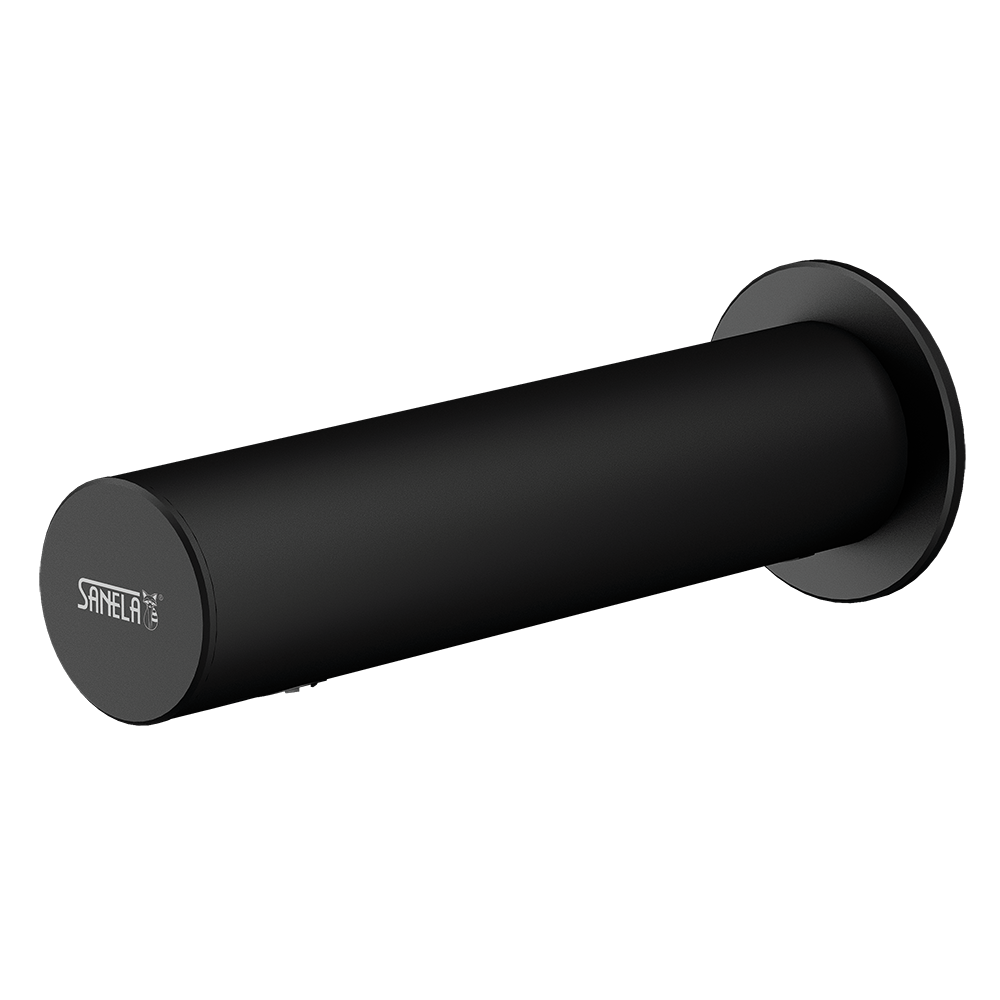

SLU 43VB

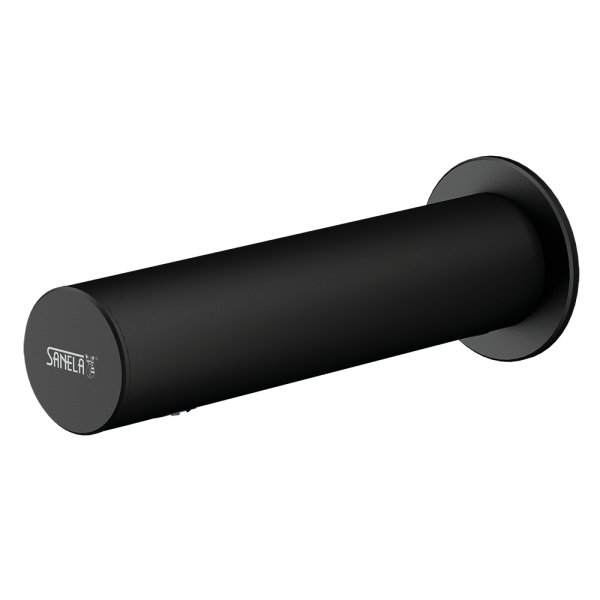

Wall-mounted tap for cold or premixed water, black, 6 V
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- lead free
- is destined for cold or premixed water
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 03434
I am interested in more information:
Supply specification
SLU 43VB - Supply No. 03434 - black faucet with electronics and electromagnetic valve, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Technical information
| Material: | stainless steel |
| Temperature regulation: | for cold or premixed water |
| Power supply: | battery operated |
| Control: | infra-red |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day) |
| Active range: | standard 0,11 - 0,15 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (2.59 MB)
- Catalogue list (128.76 kB)
- 2D Drawing (53.13 kB)
