SLZN 83EVR

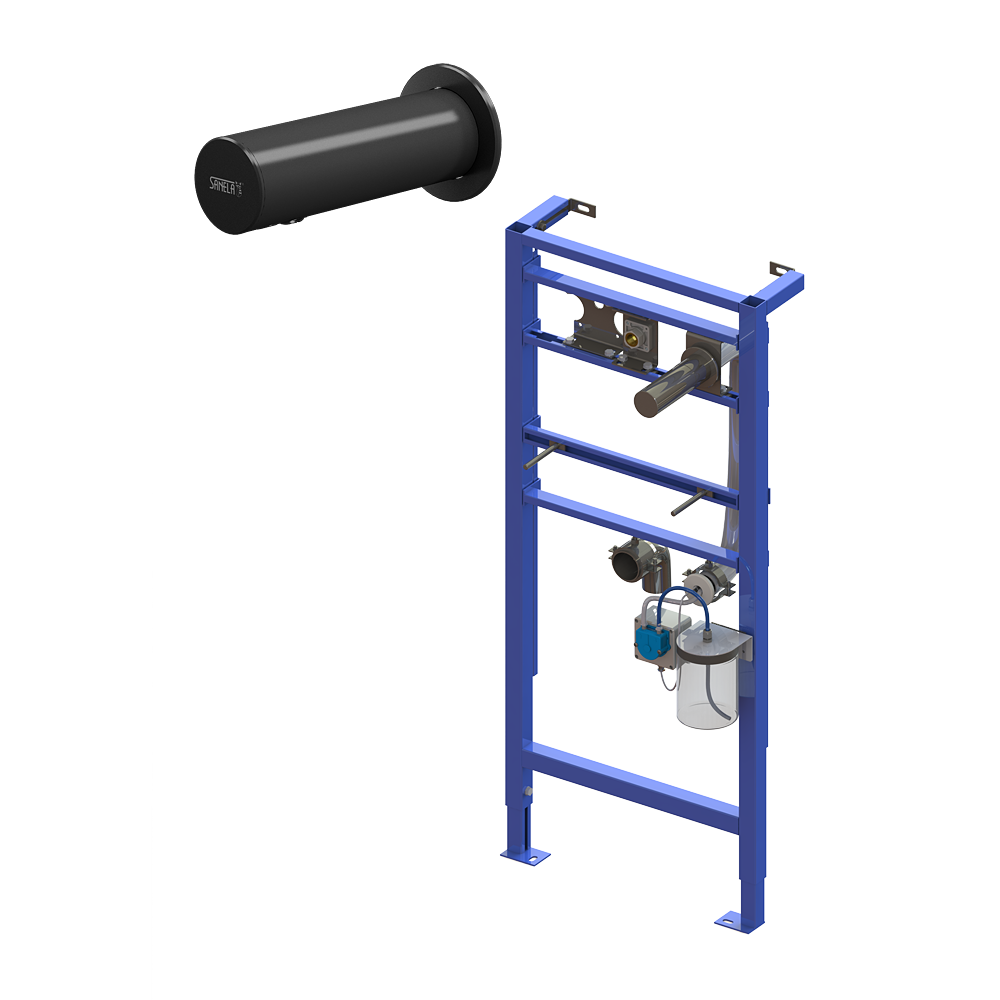

Automatic stainless steel wall hung soap dispenser, 1 l soap canister, mounting frame SLR 24 included, black, 230 V AC
Characteristics
- easy soap refilling
- soap economy
- one dose of soap is flowing as hands are in the active range of the sensor (can be set in range 1,3 - 13 s), standard 2,6 s
- suitable for private places; container for soap 1 l
- parameters adjustment using by the remote control SLD 03

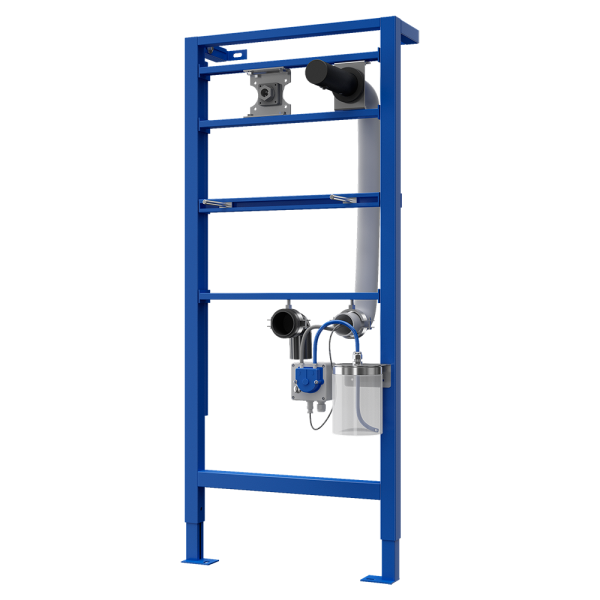

- including the mounting frame SLR 24
- Order number: 85839
I am interested in more information:
Supply specification
SLZN 83EVR - Supply No. 85839 - black stainless steel spout with electronics, grip plate, inlet hoses and cabels, security tube 80 cm, peristaltic pump for liquid soap and container for liquid soap 1 l, SLZ 07 - wall socket power supply 230 V AC/ 24 V DC, mounting frame SLR 24
Technical information
| Dispenser type: | for soap |
| Dispenser type: | automatic |
| Category: | soap and disinfection dispensers |
| Operating voltage: | 230 V AC |
| Active range: | 0,11 - 0,15 m |
| Recommended soap viscosity: | 10 mPa*s - 5000 mPa*s (don‘t use chemical solvents and disinfection) |
Downloads
- Mounting instructions (3.77 MB)
- Catalogue list (235.44 kB)
- 2D Drawing (734.44 kB)
