SLU 04P25

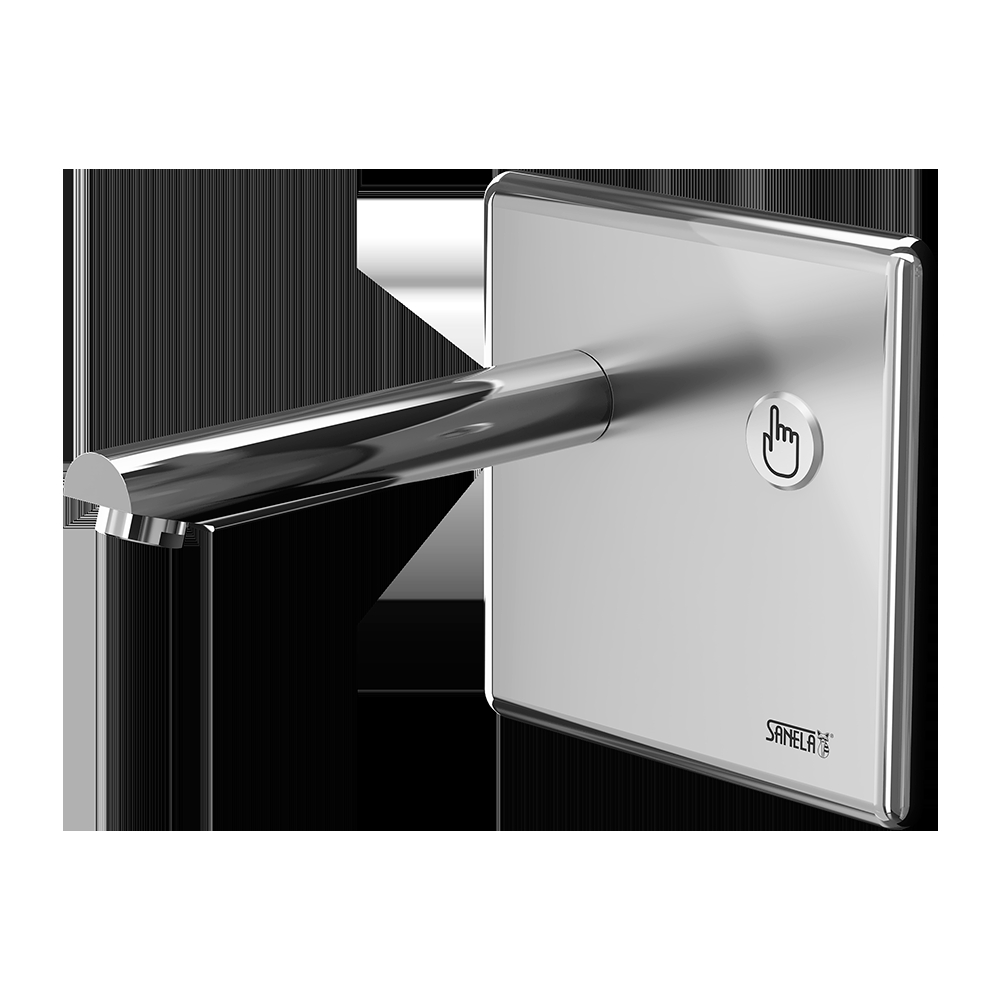

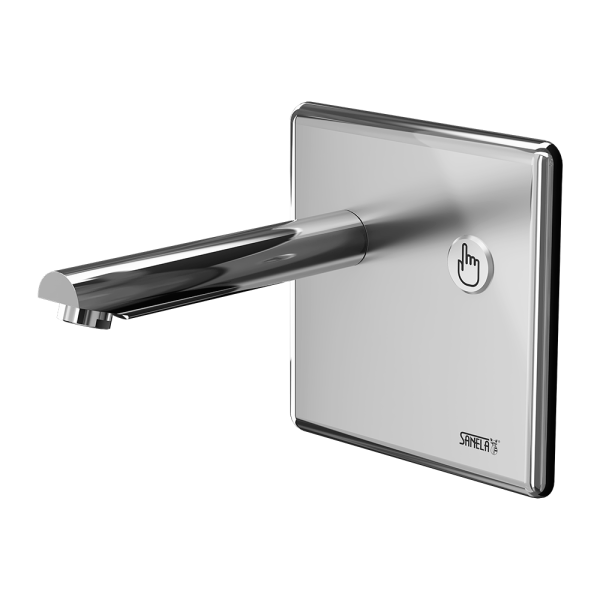

Wall-mounted piezo tap, spout of 250 mm, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • suitable for medical facilities
  • are destined for cold or premixed water
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
  • water could be stopped by follow-up soft push of piezo button
  • parameter adjustment using by the remote control SLD 04
  • water flow can be regulated by ball valve
  • Order number: 53042

Supply specification

SLU 04P25 - Supply No. 53042 - spout, stainless steel cover with piezo electronics, stainless steel mounting box with screw coupling, electromagnetic valve and ball valve

Technical information

material: stainless steel
temperature regulation: for cold or premixed water
power supply: 24V DC
control: piezo
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 155 x 155 x 82 mm
Length of the spout: 250 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 3/4“
