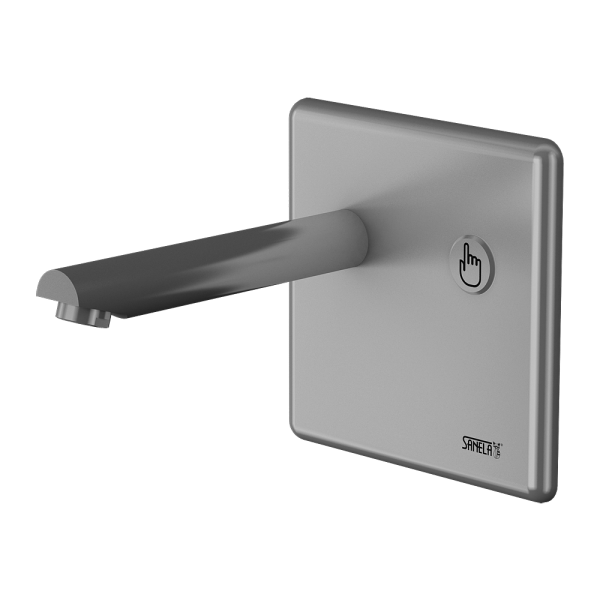

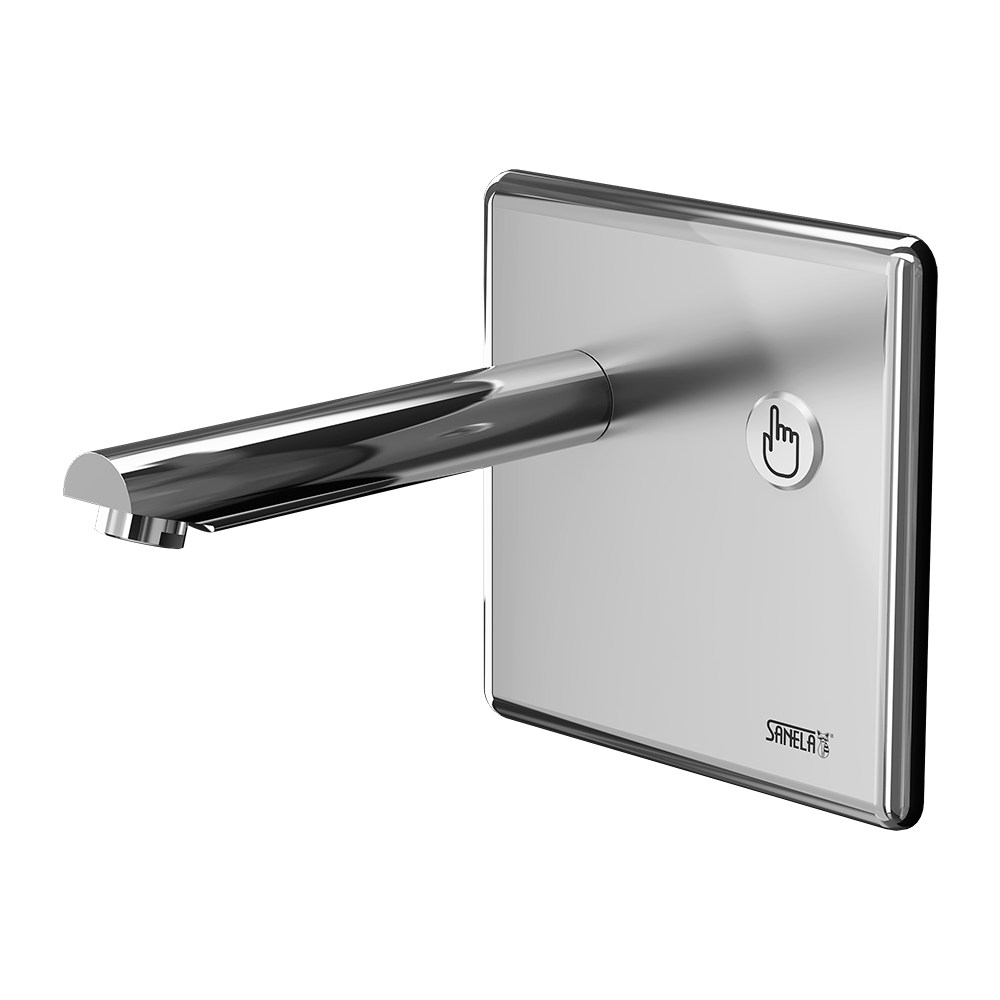

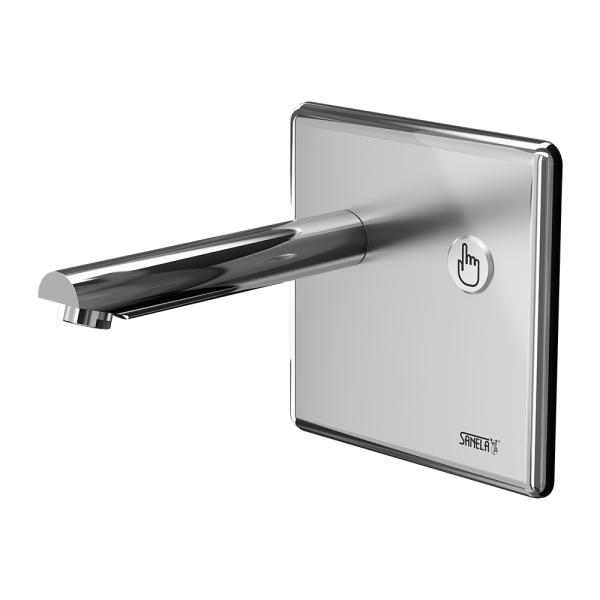

SLU 04P17B
Wall-mounted piezo tap, spout of 170 mm, 6 V
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- vandal-proof
- suitable for medical facilities
- are destined for cold or premixed water
- water flows after soft push of the piezo button
- water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
- water could be stopped by follow-up soft push of piezo button
- monitoring of battery capacity
- parameter adjustment using by the remote control SLD 04
- water flow can be regulated by ball valve
- Order number: 53043
I am interested in more information:
Supply specification
SLU 04P17B - Supply No. 53043 - spout, stainless steel cover with piezo electronics, stainless steel mounting box with screw coupling, electromagnetic valve and ball valve, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Technical information
| Material: | stainless steel |
| Temperature regulation: | for cold or premixed water |
| Power supply: | battery operated |
| Control: | piezo |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 155 x 155 x 82 mm |
| Length of the spout: | 170 mm |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh approx. 2 years (100 uses per day) |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 3/4“ |
Downloads
- Mounting instructions (2.1 MB)
- Catalogue list (204.21 kB)
- 2D Drawing (127.52 kB)
