SLU 04P17

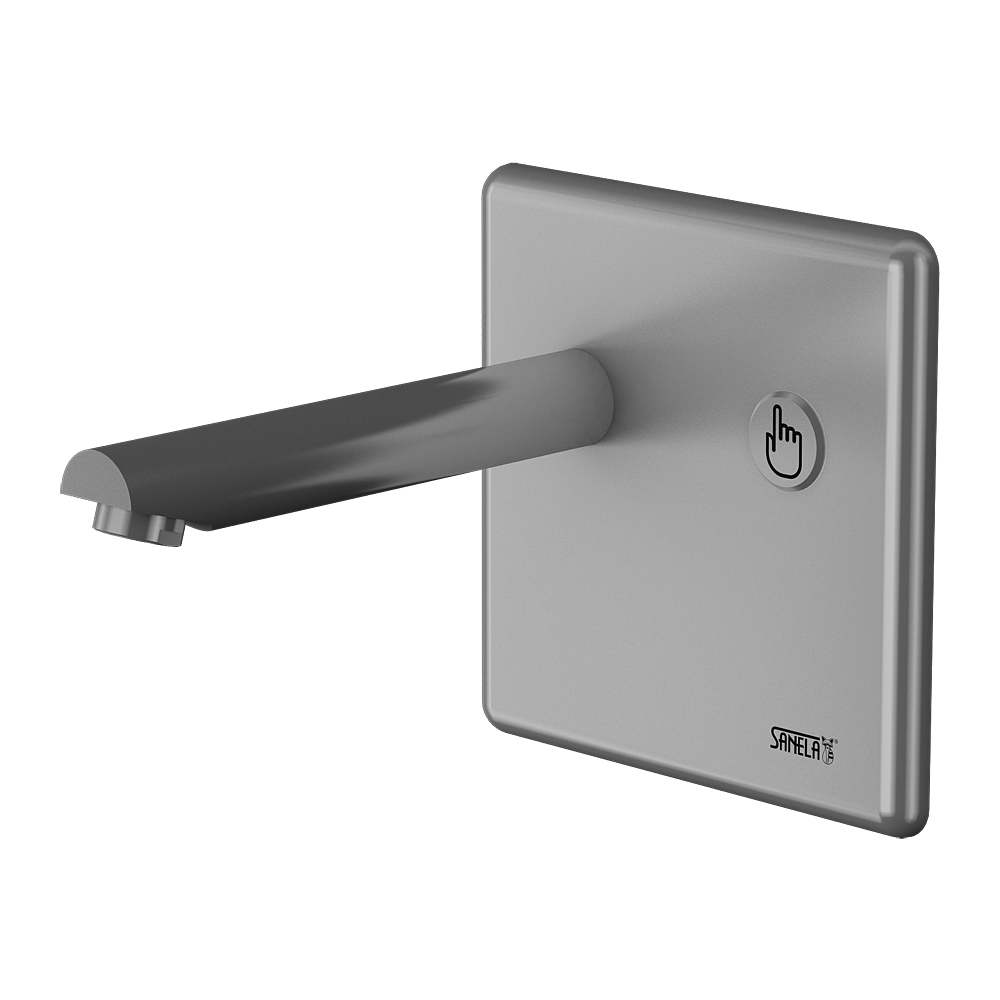

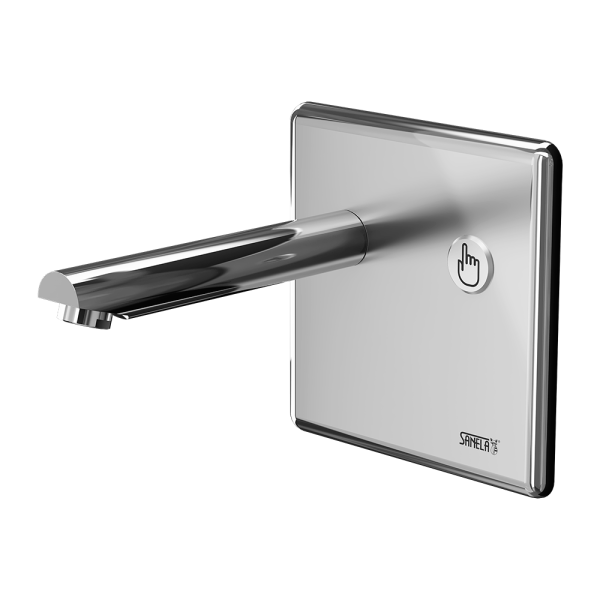

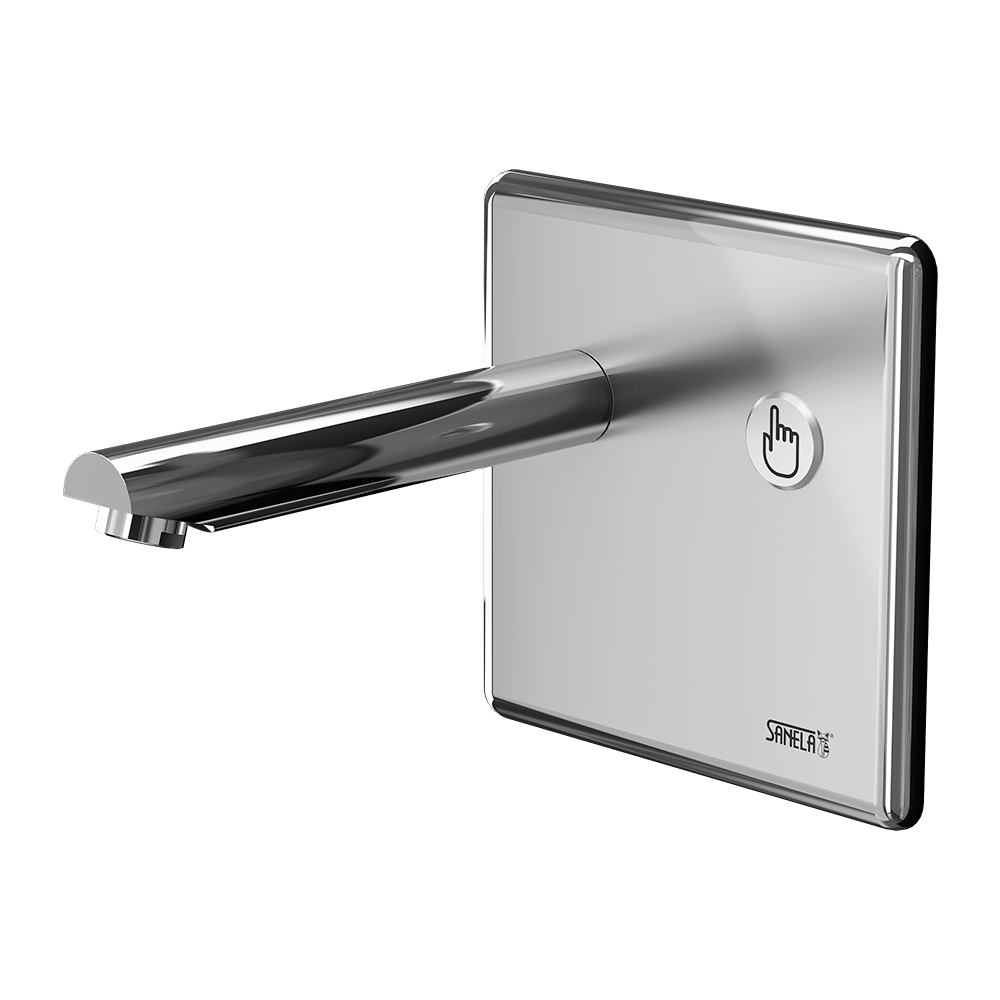

Wall-mounted piezo tap, spout of 170 mm, 24 V DC

Characteristics

economical aerator, rate of flow 6 l/min
hygienic flush
vandal-proof
suitable for medical facilities
are destined for cold or premixed water
water flows after soft push of the piezo button
water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
water could be stopped by follow-up soft push of piezo button
parameter adjustment using by the remote control SLD 04
water flow can be regulated by ball valve

Order number	53041
Code	SLU 04P17

Supply specification

SLU 04P17 - Supply No. 53041 - spout, stainless steel cover with piezo electronics, stainless steel mounting box with screw coupling, electromagnetic valve and ball valve

Technical information

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 155 x 155 x 82 mm
Length of the spout: 170 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 3/4“
