SLSN 02E

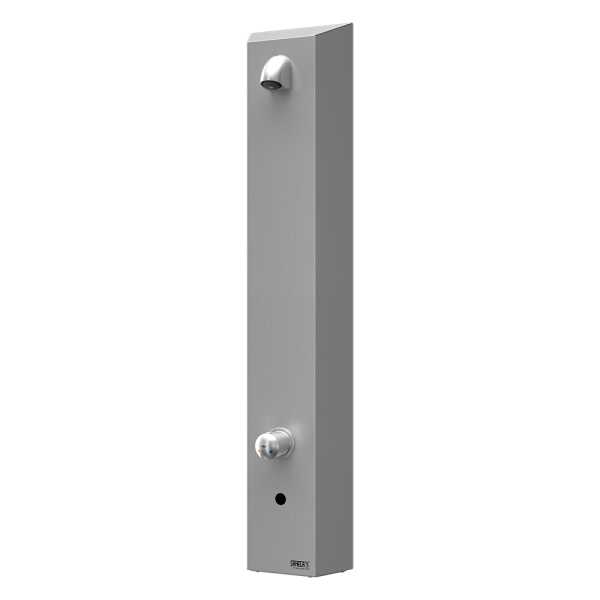

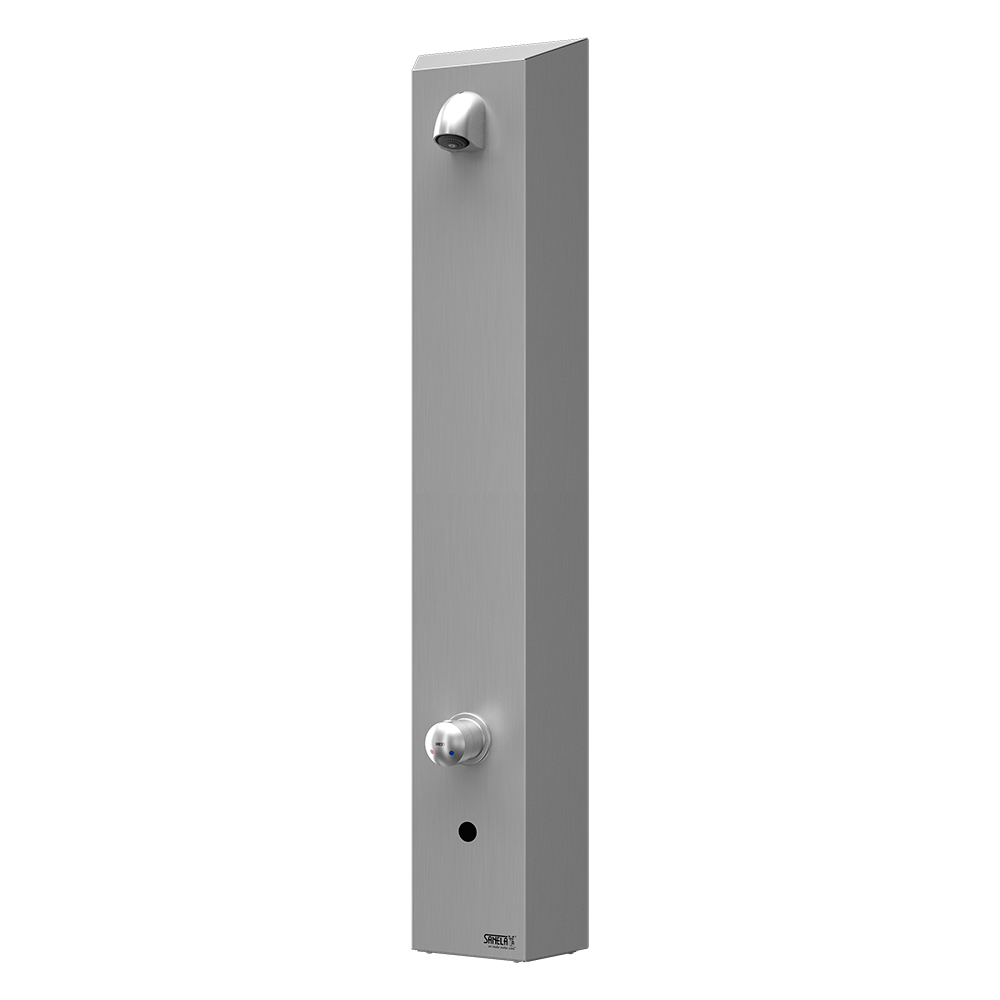

Stainless steel automatic shower panel with a mixer, 24 V DC

Characteristics

hygienic flush
stainless steel wall hung shower panels with integrated infra-red electronics
with possibility to set an angle of water
SLSN 02E is destined for cold and hot water, temperature is regulated by mixer
water starts to flow immediately after entrance of user to the active range of sensor
water stops flowing after adjustable flowing time (can be set in 0,25 – 7,75 s), standard 3 s
function of automatic water stop after 5 minut of continuous flow
START/STOP program
parameter adjustment using by the remote control SLD 03
material AISI - 304
brushed finish

Order number	92021
Code	SLSN 02E

Supply specification

SLSN 02E - Supply No. 92021 - stainless steel shower panel with electronics, electromagnetic valve (1 pc.), mixer, connecting hoses, angle valve with filter and check valve (2 pcs.)

Technical information

Operating voltage: 24 V DC
Active range: standard 0,27 - 0,35 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2"
