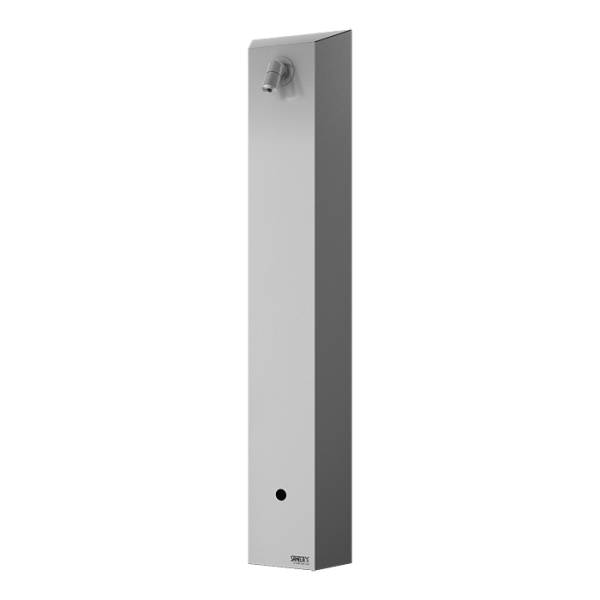

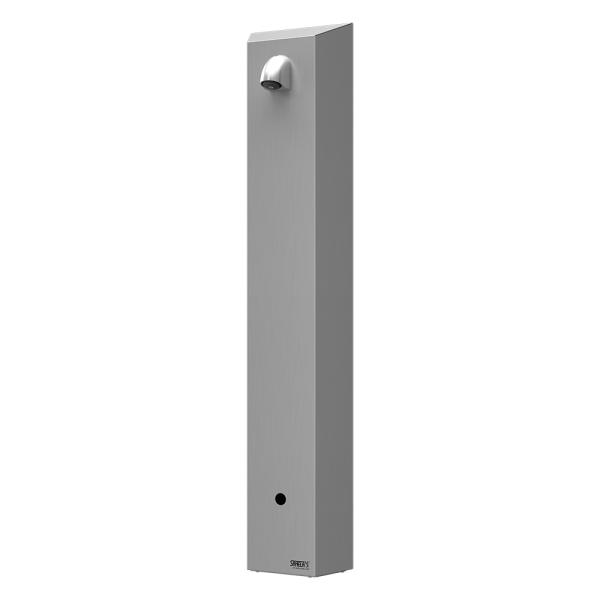

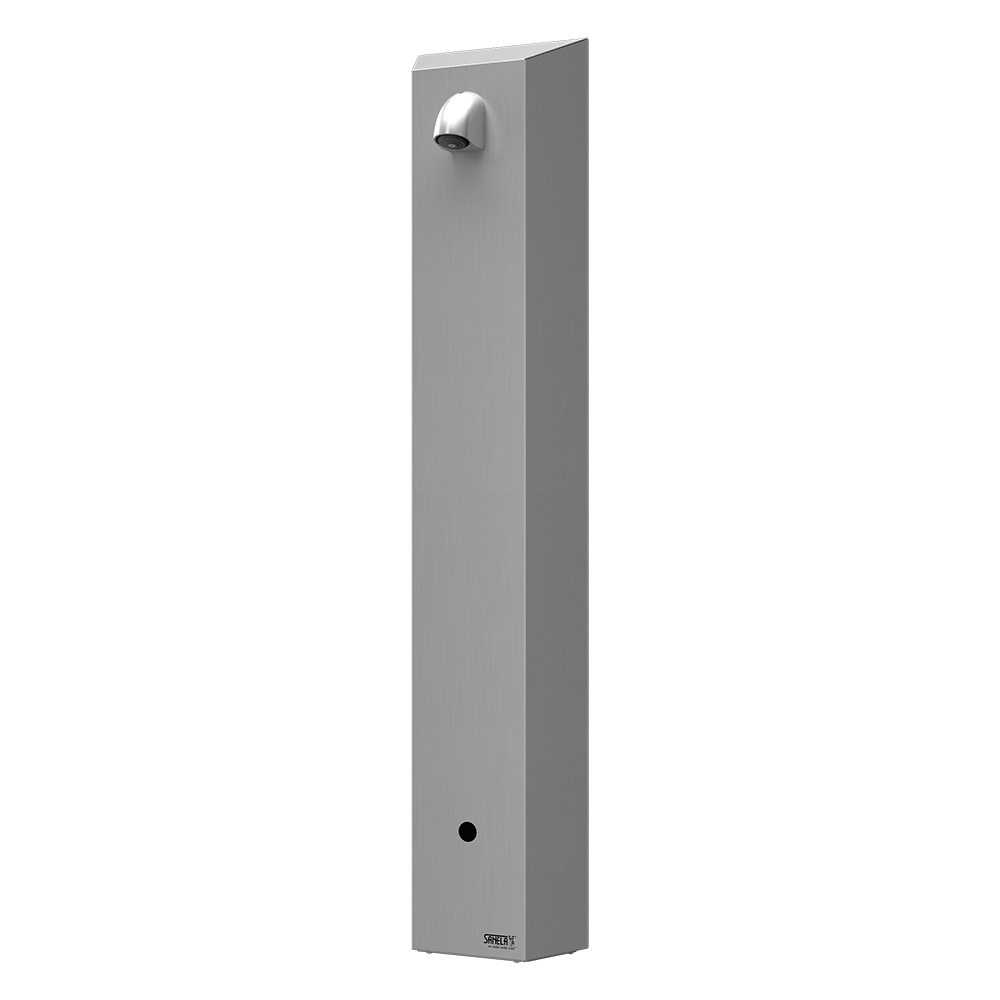

SLSN 01EB

Stainless steel automatic shower panel for cold or premixed water, 6 V

Characteristics

  • hygienic flush
  • stainless steel wall hung shower panels with integrated infra-red electronics
  • with possibility to set an angle of water
  • SLSN 01E is destined for cold or premixed water
  • water starts to flow immediately after entrance of user to the active range of sensor
  • water stops flowing after adjustable flowing time (can be set in 0,25 – 7,75 s), standard 3 s
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • material AISI - 304
  • brushed finish
  • Order number: 92013

Supply specification

SLSN 01EB - Supply No. 92013 - stainless steel shower panel with electronics, electromagnetic valve (1 pc.), connecting hoses, angle valve with filter (1 pc.), 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh

Technical information

material: stainless steel
temperature regulation: for cold or premixed water
power supply: battery operated
control: infra-red
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day)
Active range: standard 0,27 - 0,35 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2"

Downloads

Accessories

Set of 4 pcs. of alcaline batteries
Remote control for an adjustment of…
Thermostatic mixing valve 3/4" (28l/min)
Thermostatic mixing valve 1/2” (20l/min)
