SLSN 01E

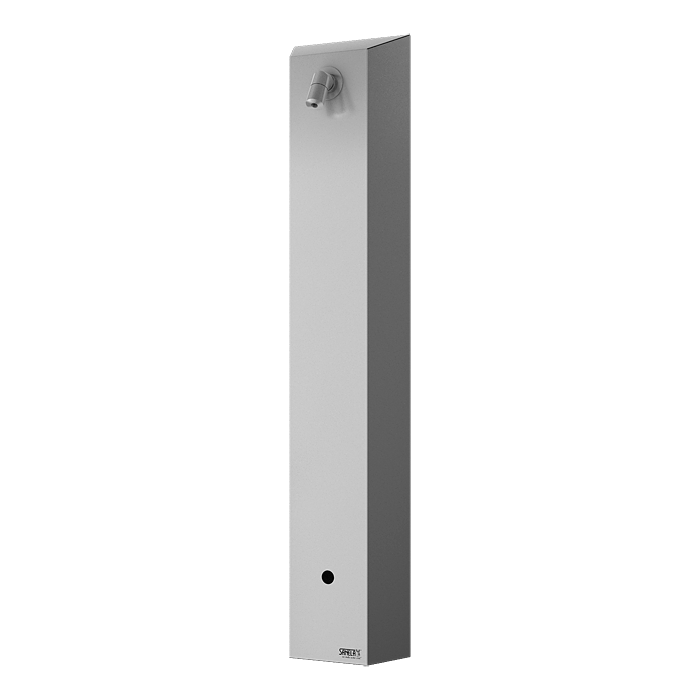

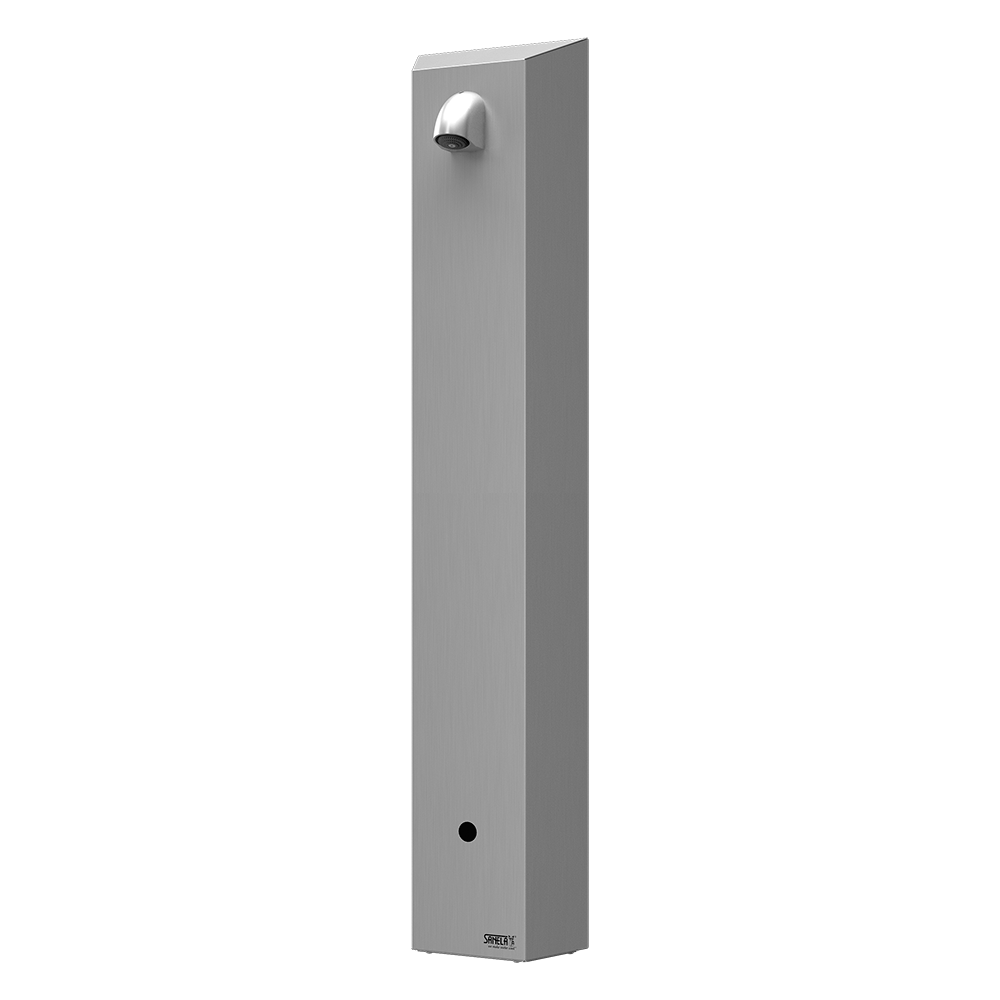

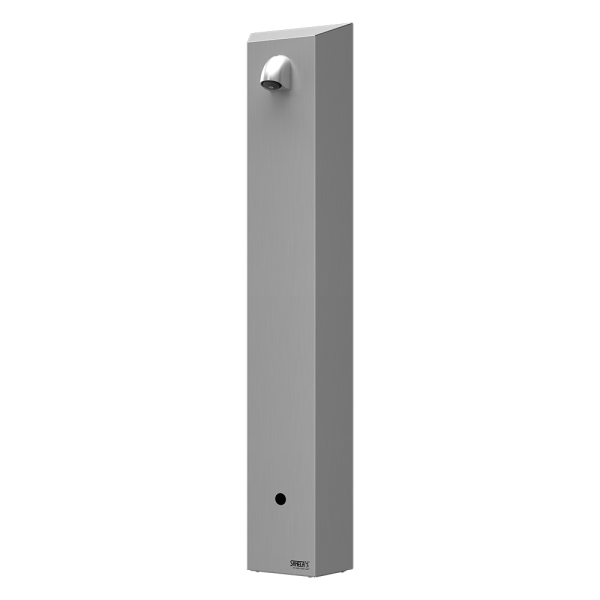

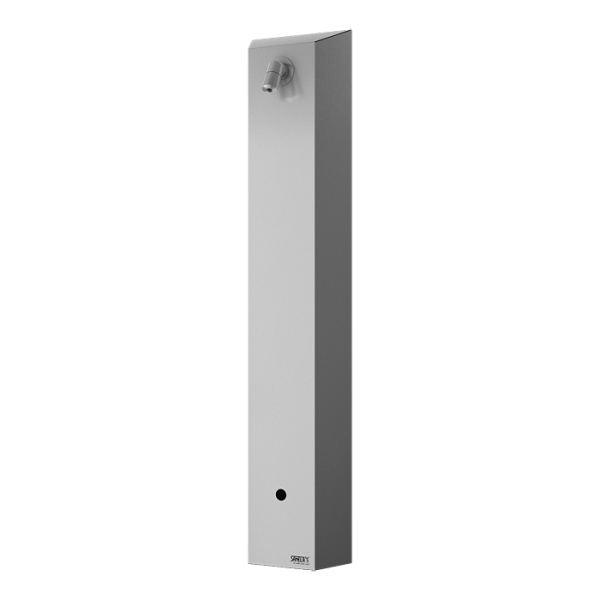

Stainless steel automatic shower panel for cold or premixed water, 24 V DC

Characteristics

  • hygienic flush
  • stainless steel wall hung shower panels with integrated infra-red electronics
  • with possibility to set an angle of water
  • SLSN 01E is destined for cold or premixed water
  • water starts to flow immediately after entrance of user to the active range of sensor
  • water stops flowing after adjustable flowing time (can be set in 0,25 – 7,75 s), standard 2 s
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • material AISI - 304
  • brushed finish
  • Order number: 92011
I am interested in more information:

Supply specification

SLSN 01E - Supply No. 92011 - stainless steel shower panel with electronics, electromagnetic valve (1 pc.), connecting hoses, angle valve with filter (1 pc.)

Technical information

Material: stainless steel
Temperature regulation: for cold or premixed water
Power supply: 24V DC
Control: infra-red
Operating voltage: 24 V DC
Active range: standard 0,27 - 0,35 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 9 l/min. (inf. data)
Water inlet: male thread G 1/2"
