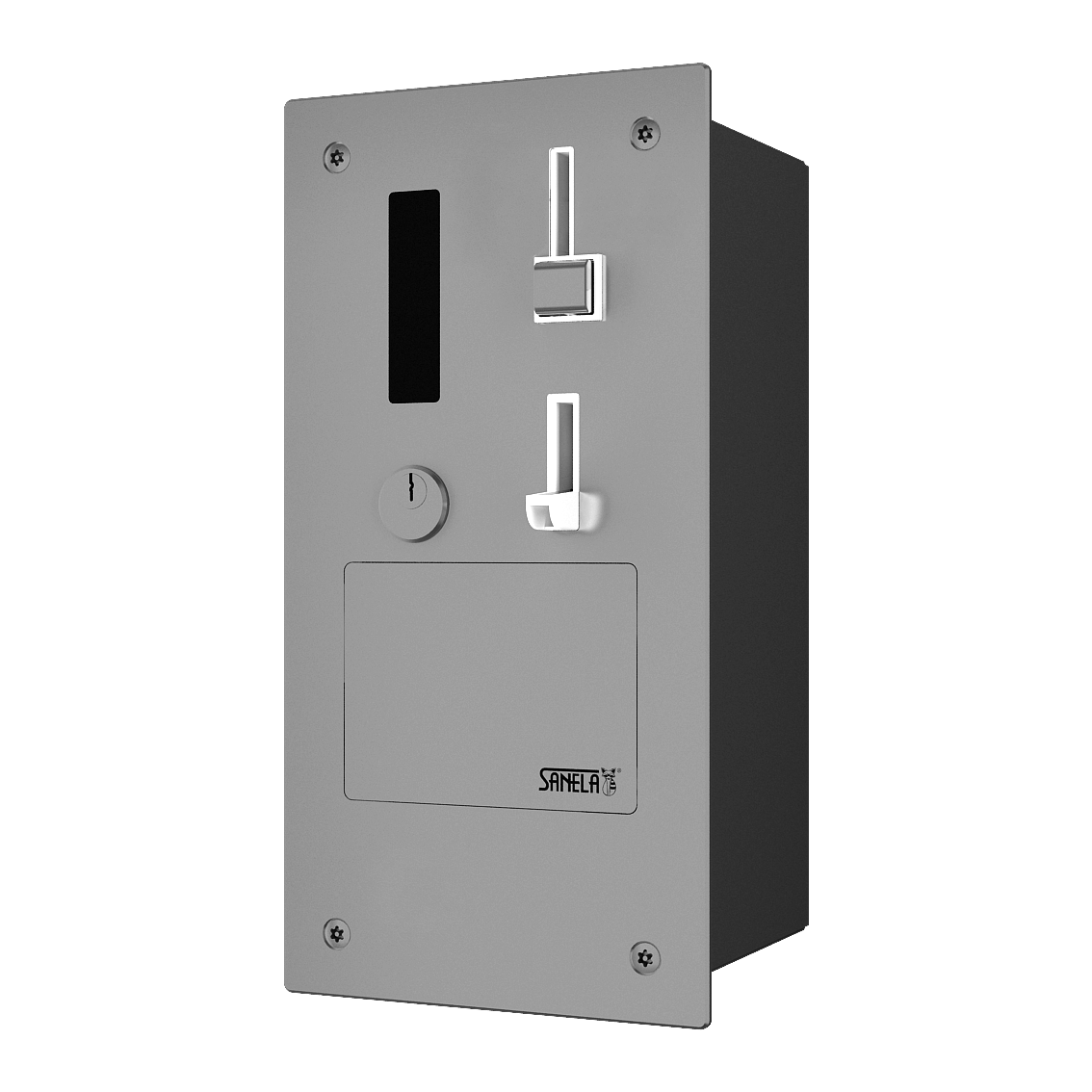

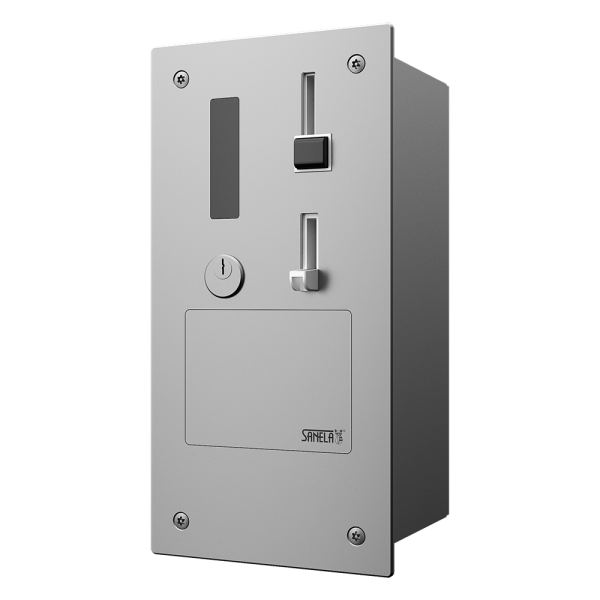

SLZA 40GZ
Recessed coin and token machine for door opening with GSM module, 24V DC
Characteristics
- for disabled and persons with limited mobility
- vandal-proof
- coin and token device for door opening (12 V), electromagnetic lock, GSM module
- after inserting the minimal requested credit (coin or token) the door lock opens for adjusted time
- SMS message about filling in the cash register, including the current value of €
- the device adds up the coins but does not return
- recessed
- parameters adjustment on display inside of the machine using by the remote control SLD 05 (door lock unlocking interval, value for unlocking, current euro exchange rate, choice of control - mode with or without door contact)
- lockable
- for indoor use, temperature range +5 to +40 °C
- material stainless steel AISI 304 (1.4301)
- brushed finish
- Order number: 88403
I am interested in more information:
Supply specification
SLZA 40GZ - Supply No. 88403 - stainless steel coin device with electronics, coin holder and coin box, eurokey, set of keys (2 pcs.) mounting frame, remote control SLD 05
Technical information
| Niche dimensions: | 265 x 127 x 125 mm |
| Dimensions: |
285 x 145 x 142 mm |
| Weight: |
4,8 kg |
| Thickness of material: |
1,5 mm |
| Operating voltage: |
24 V DC |
| Max. power input
of electromagnetic lock: |
20 W |
| Power input in sleep mode: |
2,5 W |
| Accepted coins: |
1 and 2 €,
token (other
currencies
on request) |
| Adjustable time for unlocking: |
1 - 310 sec.,
standard 10 s |
| Adjustable minimum value
for unlocking: |
1 -19 €,
standard 1 € |
Downloads
- Mounting instructions (1.78 MB)
- User guide (24.29 kB)
- Catalogue list (299.79 kB)
- Circuit diagram (1.91 MB)
- 2D Drawing (266.93 kB)
- General installation requirements (97.83 kB)
