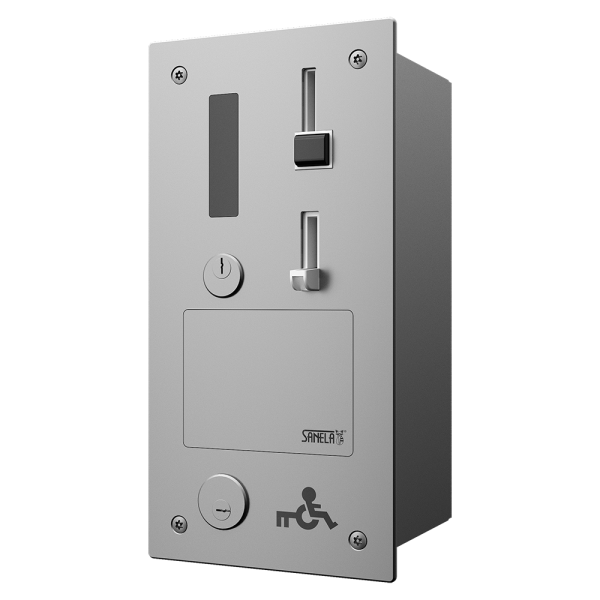

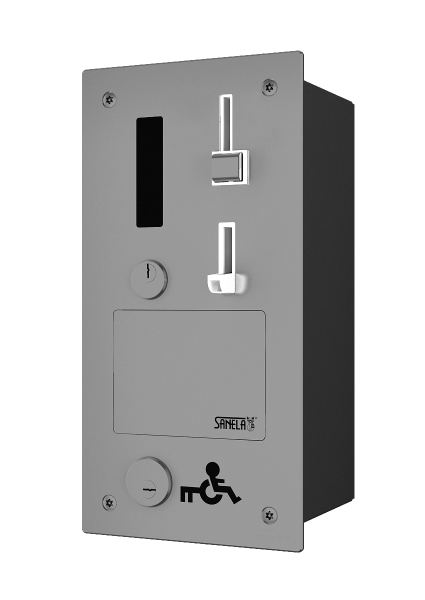

SLZA 40GVZ
Recessed coin and token machine for door opening with GSM module, EURO KEY, 24V DC
Characteristics
- for disabled people
- vandal-proof
- coin and token machine for door opening (12 V), electromagnetic lock, GSM module
- after inserting the minimal requested credit (coin or token) the door lock opens for adjusted time
- SMS message about filling in the cash register, including the current value of CZK
- the machine adds up the coins but does not return
- model with index V - with eurokey
- model with index Z - recessed
- parameters adjustment on display inside of the machine using by the remote control SLD 05 (door lock unlocking interval, value for unlocking, current euro exchange rate, choice of control - mode with or without door contact)
- lockable
- for indoor use, temperature range +5 to +40 °C
- material AISI - 304
- brushed finish
- Order number: 88407
I am interested in more information:
Supply specification
SLZA 40GVZ - Supply No. 88407 - stainless steel coin machine with electronics, coin holder and coin box, eurokey, set of keys (2 pcs.) mounting frame, SLD 05
Technical information
Niche dimensions: | 265 x 127 x 125 mm |
Operating voltage: | 24 V DC |
Accepted coins: | 1 and 2 €, token (other currencies on request) |
Adjustable time for unlocking: | 1 - 310 s, standard 10 s |
Adjustable minimum value for unlocking: | 1 -19 €, standard 1 € |
Downloads
- Mounting instructions (1.96 MB)
- User guide (24.29 kB)
- Catalogue list (299.79 kB)
- Circuit diagram (1.93 MB)
- 2D Drawing (266.24 kB)
