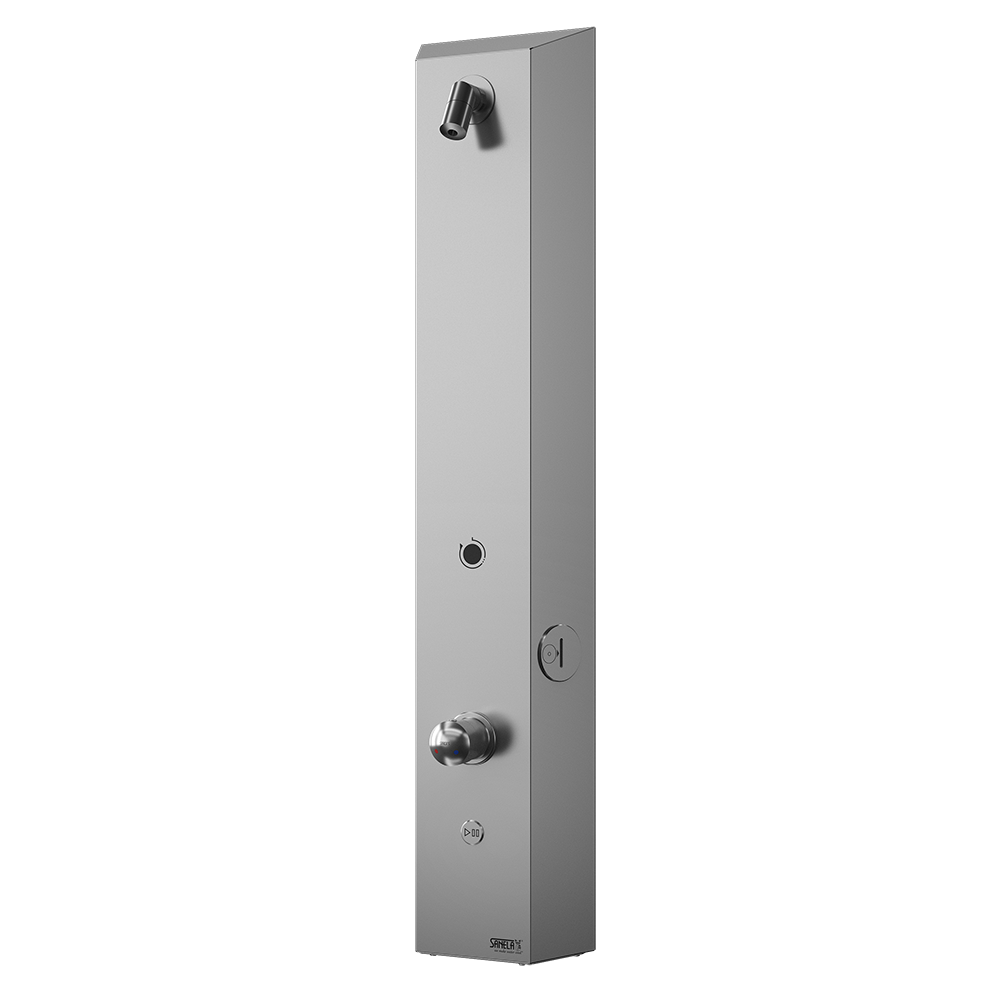

SLZA 29

Stainless steel token shower panel, with mixer for cold and hot water, 24 V DC

Characteristics

  • hygienic flush
  • stainless steel token wall hung shower panels with bin for tokens
  • SLZA 29 is destined for cold and hot water, temperature is regulated by mixer
  • after inserting a token SLZA 52 in to the panel, system reacts on the push of the mechanical button by inmediate water flow
  • system reacts on the push of the button by immediate water flow and 10 red diods light on, gradual lighting off count down the shower time
  • the user can start and stop the water directly in the shower
  • 30 % of the time paid before the end of the water supply, the user is notified by interruption of the water flow
  • parameters adjustment using by the remote control SLD 04
  • material AISI - 304
  • brushed finish
Order number 89290
Code SLZA 29

Supply specification

SLZA 29 - Supply No. 89290 - stainless steel shower planel with electronics and bin for tokens, shower head with a possibility to set an angle of water flow, electromagnetic valve (1 pc.), mixer, connecting hoses, angle valve with filter and check valve (2 pcs.)

Technical information

Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2"
  • Print

Accessories

Remote control for an adjustment of…
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for mounting…
External power supply 24 V DC for mounting…
External power supply 24 V DC for mounting…
External power supply for 1 washbasin tap…
Set of 50 pcs. of tokens for token machines…
