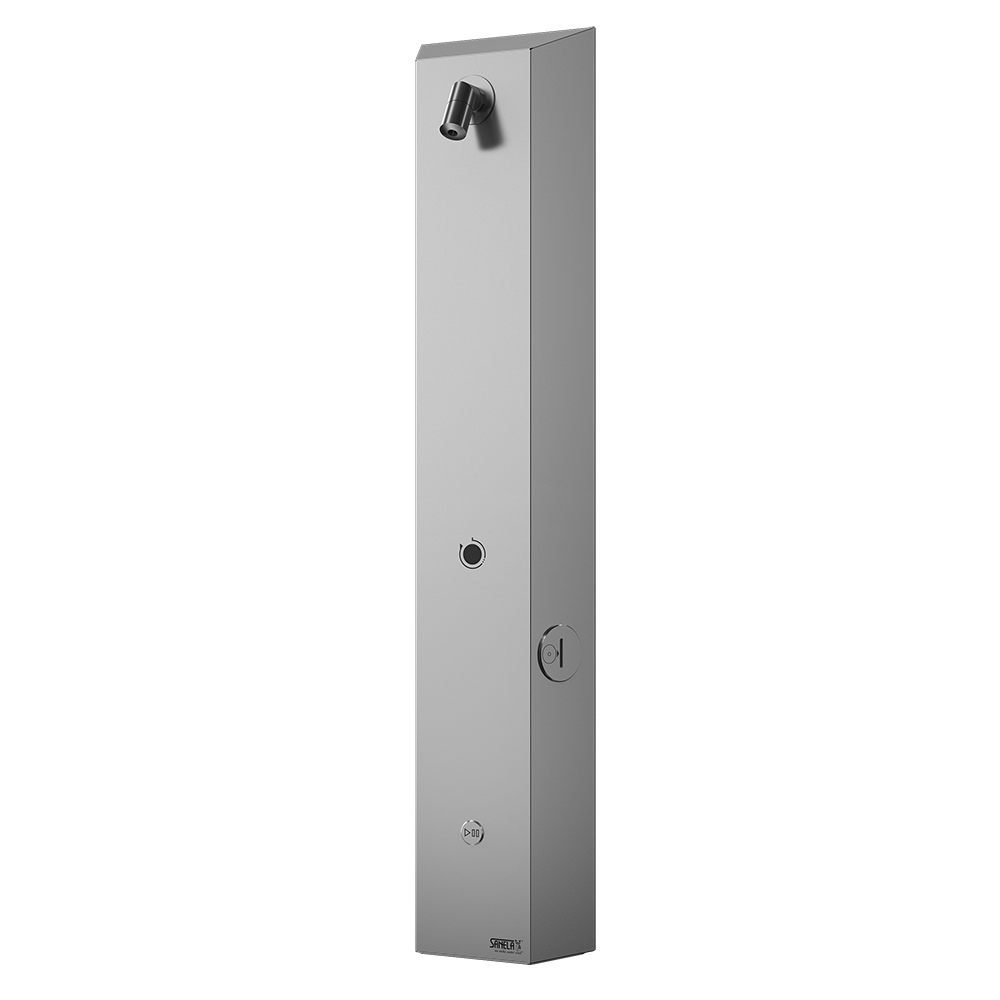

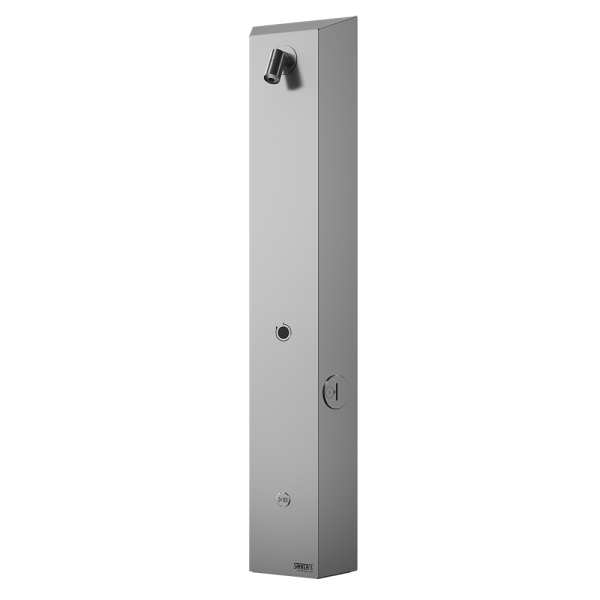

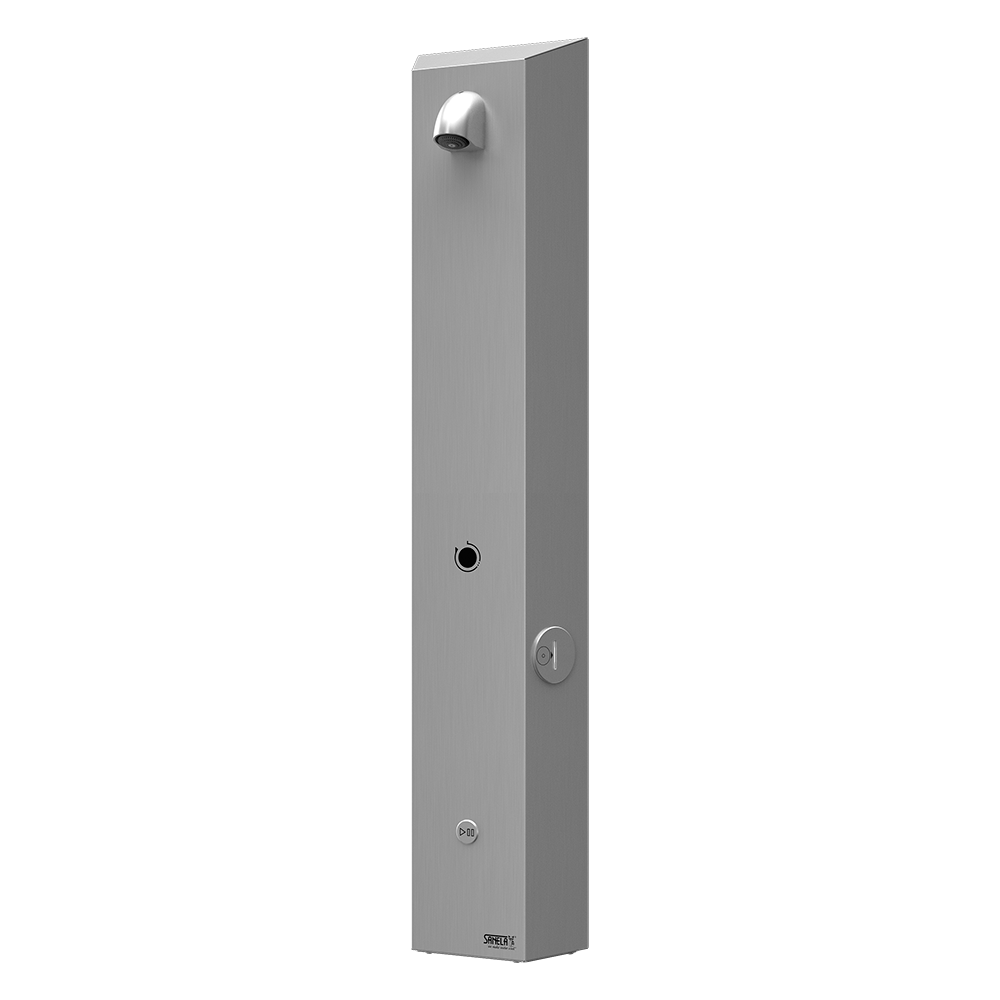

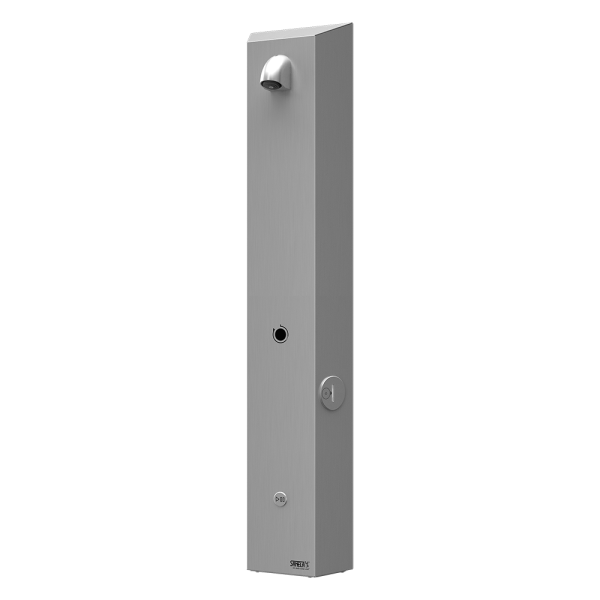

SLZA 28

Stainless steel token shower panel, for cold or premixed water, 24 V DC

Characteristics

  • hygienic flush
  • stainless steel token wall hung shower panels
  • SLZA 28 is destined for cold or premixed water
  • after inserting a token SLZA 52 in to the panel, system reacts on the push of the mechanical button by inmediate water flow
  • system reacts on the push of the button by immediate water flow and 10 red diods light on, gradual lighting off count down the shower time
  • the user can start and stop the water directly in the shower
  • 30 % of the time paid before the end of the water supply, the user is notified by interruption of the water flow
  • parameters adjustment using by the remote control SLD 04
  • material AISI - 304
  • brushed finish
  • Order number: 89286
I am interested in more information:

Supply specification

SLZA 28 - Supply No. 89286 - stainless steel shower planel with electronics, shower head with a possibility to set an angle of water flow, electromagnetic valve (1 pc.), connecting hoses, angle valve with filter (1 pc.)

Technical information

Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 9 l/min. (inf. data)
Water inlet: male thread G 1/2"

Downloads

Accessories

Remote control for an adjustment of…
Thermostatic mixing valve 3/4" (28l/min)
Thermostatic mixing valve 1/2” (20l/min)
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply for 1 washbasin…
Set of 50 pcs. of tokens for token…
