SLZA 03NZ

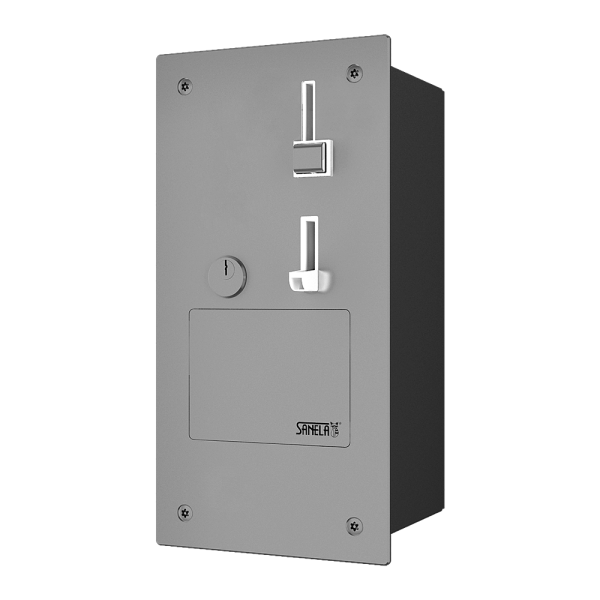

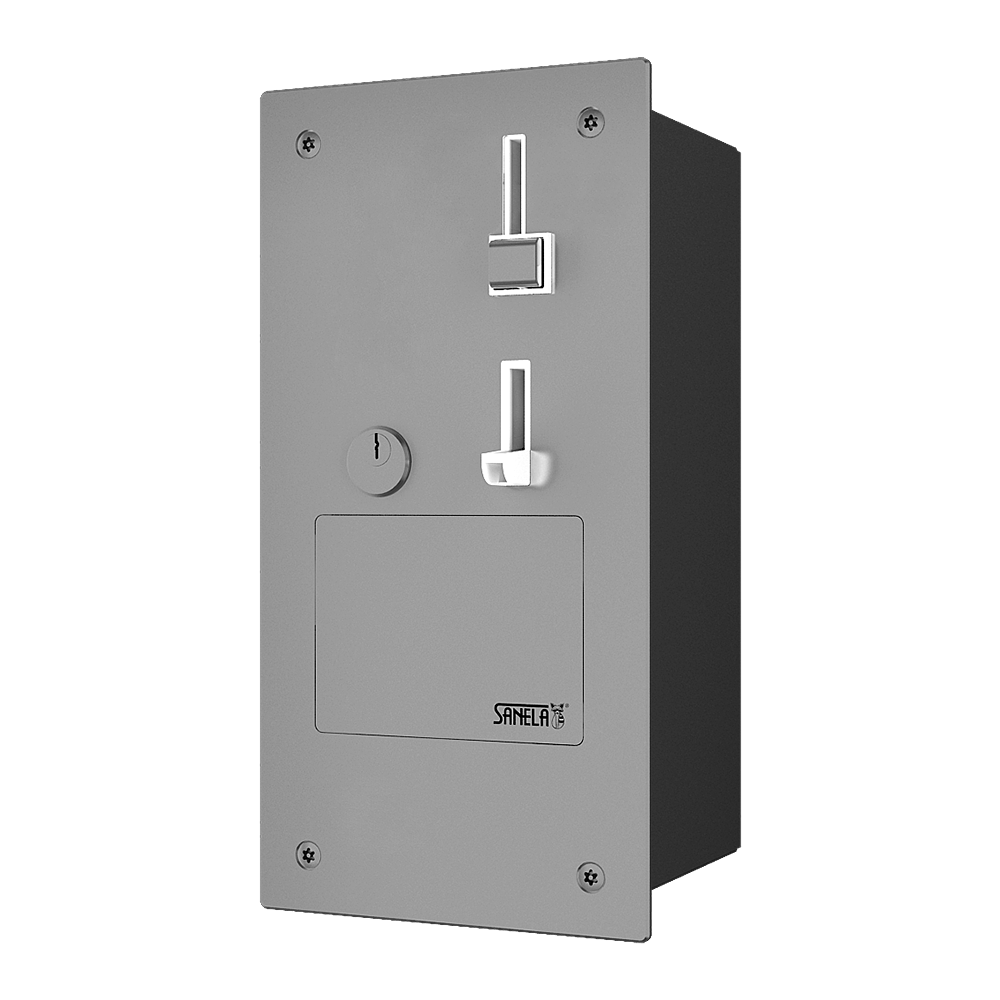

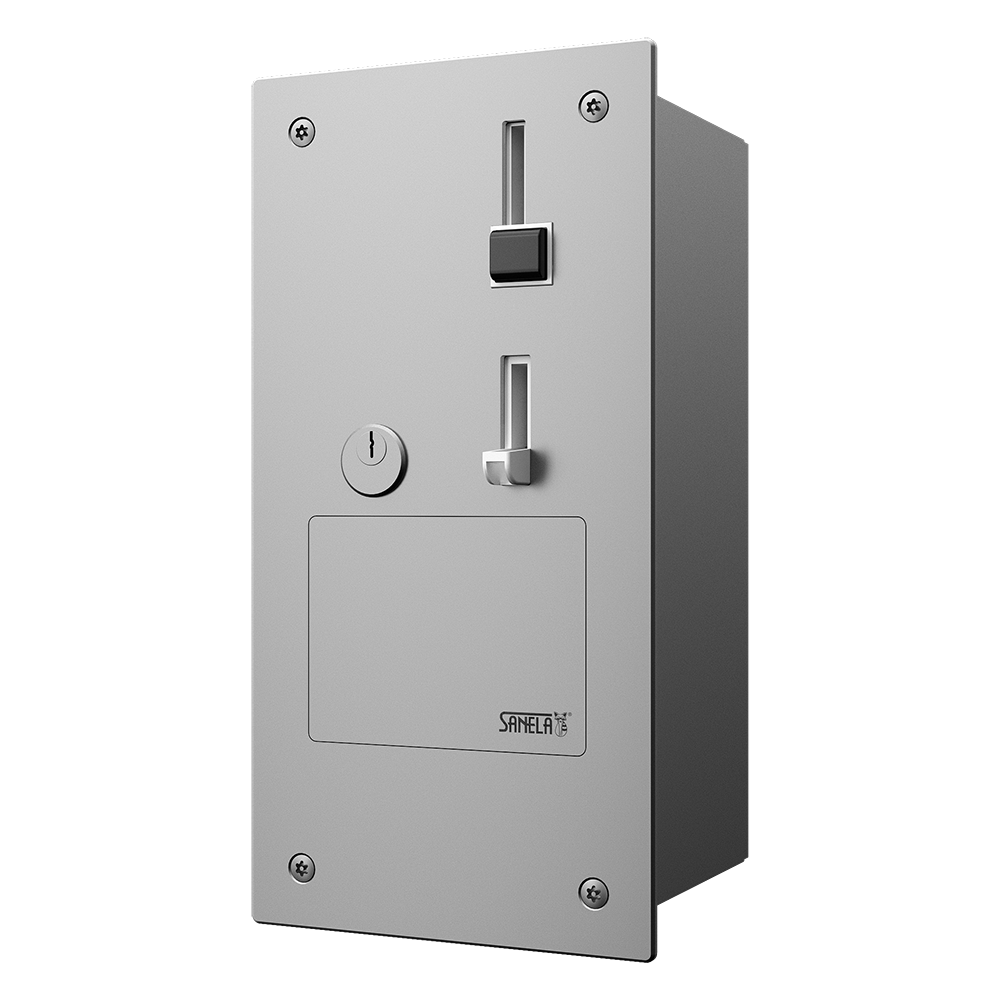

Recessed coin and token shower timer, 24 V DC, interactive control

Characteristics

  • hygienic flush
  • vandal-proof
  • interactive control

- after inserting a coin or a token the machine starts water flow on several seconds in the shower
- the user can start and stop the water directly in the shower

  • 30 s before the end of water supply the user is warned by interrupting of water flow
  • the machine adds up the coins but does not return
  • index Z - recessed
  • parameters adjustment using by the remote control SLD 05 (adjustment of shower time according to the thrown coin or token, time delay of switch on, possible activation of hygienic flush, time value, current euro exchange, token value)
  • lockable
  • material AISI - 304
  • could be made to order from stainless steel AISI - 316L
  • brushed finish
  • Order number: 88034
I am interested in more information:

Supply specification

SLZA 03NZ - Supply No. 88034 - stainless steel coin machine with electronics, coin holder and coin box, set of keys (2 pcs.), mounting frame

Technical information

Niche dimensions: 265 x 127 x 125 mm
Operating voltage: 24 V DC
Accepted coins: 1 and 2 €, token
  (OTHER CURRENCIES ON REQUEST)
Switch on delay: 0 – 300 sec., standard 30 sec.
Showering time: 5 - 1200 sec.
