SLZA 21PT

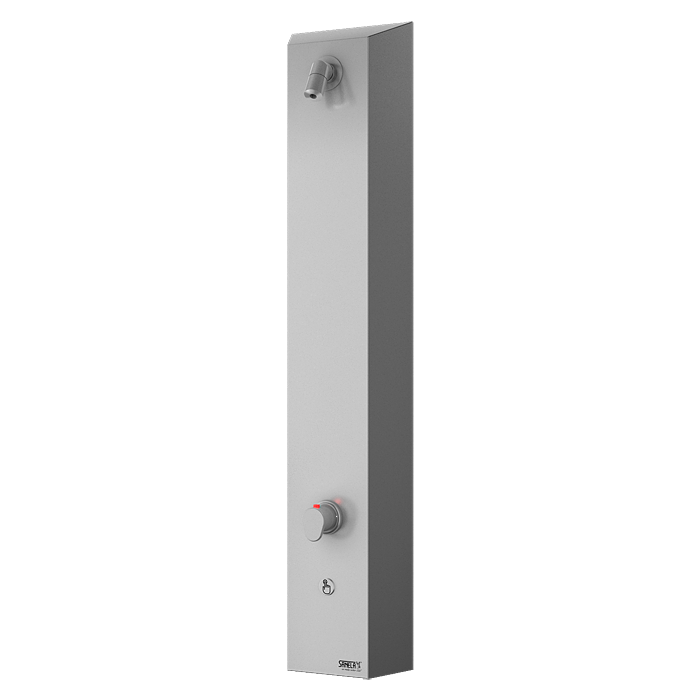

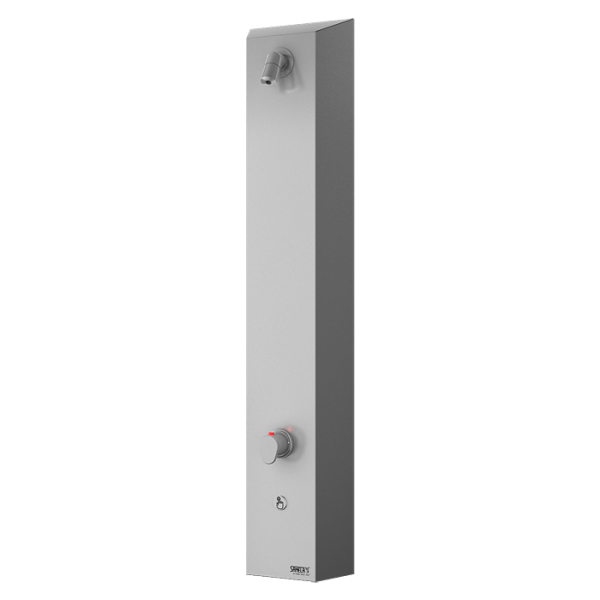

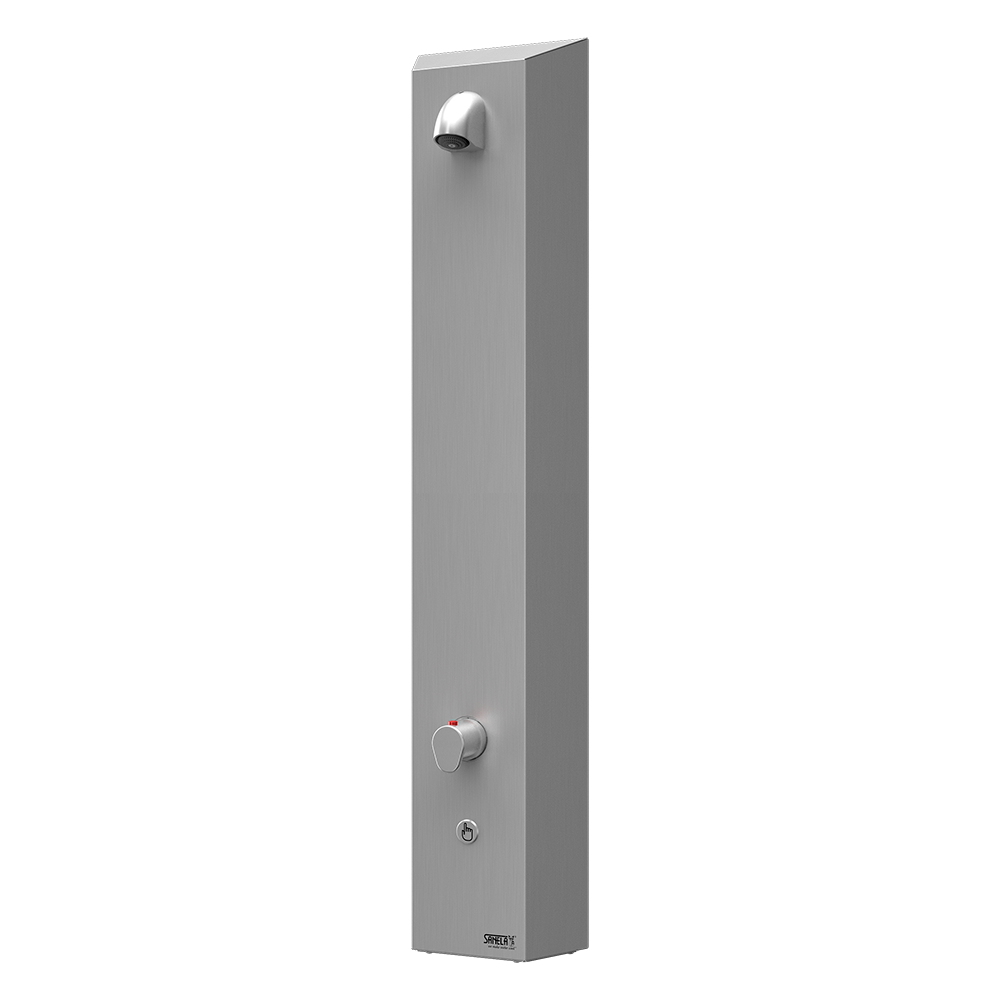

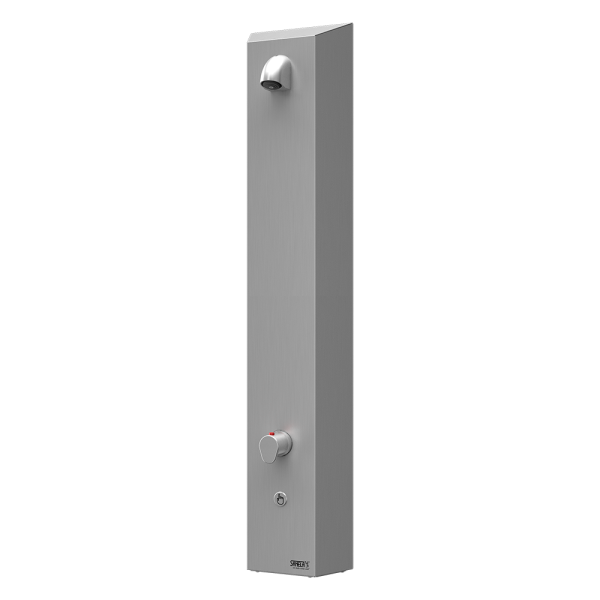

Stainless steel shower panel with piezo button for coin and token shower timers with index N - for cold and hot water, temperature regulated by thermostatic mixer

Characteristics

  • hygienic flush
  • vandal-proof
  • wall hung shower panel with piezo button for automatic device with index N
  • is designed for cold and hot water, temperature is regulated by thermostatic mixer
  • safety fuse against scalding
  • stop flowing of hot water in case of cold water failure
  • Order number: 88219
I am interested in more information:

Supply specification

SLZA 21PT - Supply No. 88209 - stainless steel shower panel, electromagnetic valve (1 pc.), thermostatic mixer, connecting hoses, angle valve with filter and check valve (2 pcs.)

Technical information

Dimensions: 1050 x 220 x 143 mm
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 9 l/min. (inf. data)
Water inlet: male thread G 1/2“
