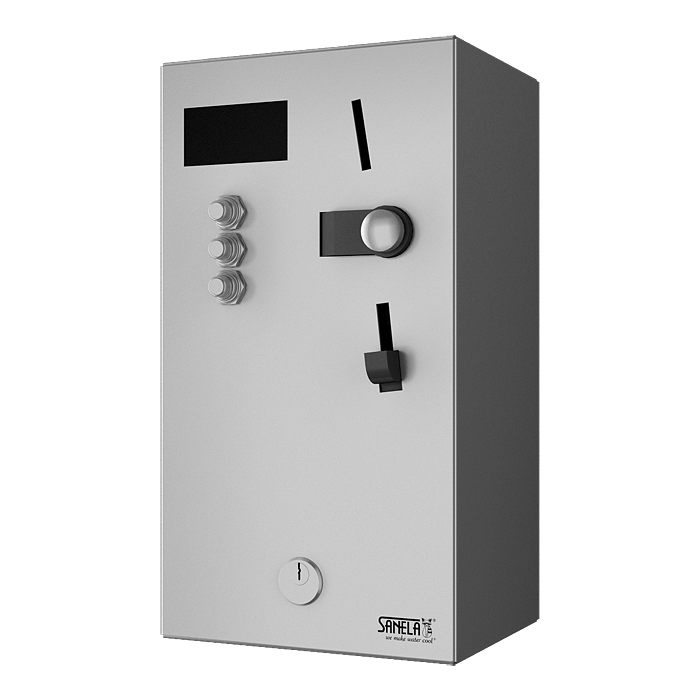

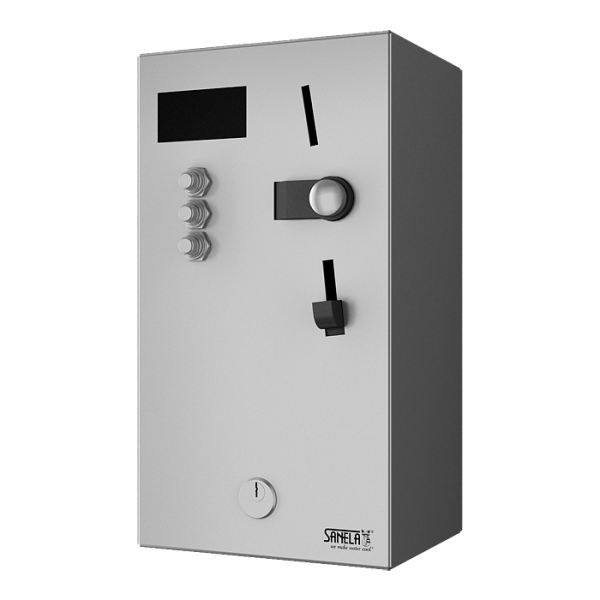

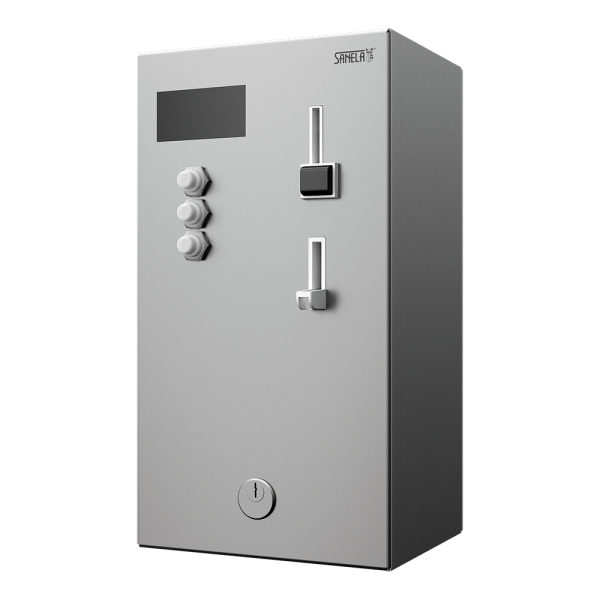

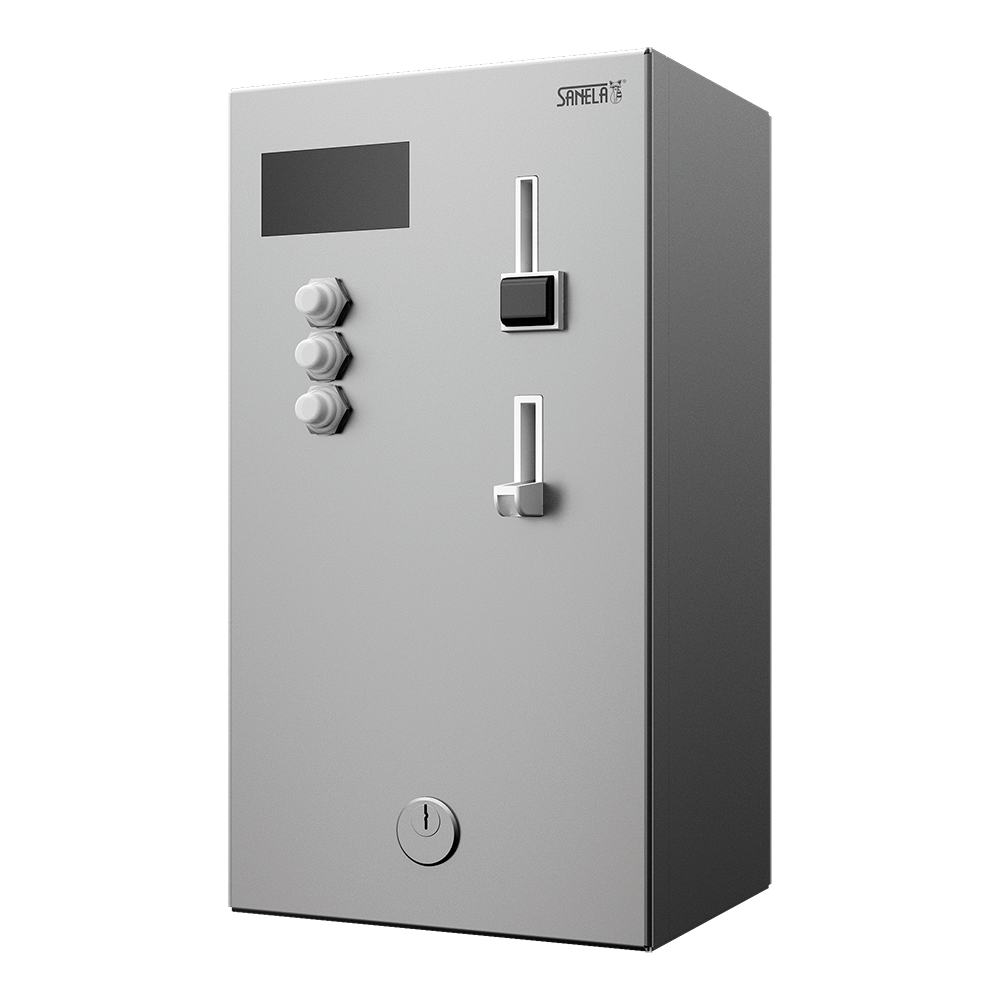

SLZA 01N
Coin and token shower timer for one to three showers, 24 V DC, choice of shower by the machine, interactive control
Characteristics
- hygienic flush
- vandal-proof
- choice of shower by the machine - after inserting a coin or a token the device assigns the shower to the user and shows the number of shower on display
- interactive control - after inserting a coin or a token the device starts water flow on several seconds to indicate the chosen shower, the user can start or stop the water directly in the shower
- 30 s before the end of water supply the user is warned by interrupting of water flow
- the device adds up the coins but does not return
- recessed
- parameters adjustment using by the remote control SLD 05 (adjustment of shower time according to the thrown coin or token, time value, current euro exchange, display contrast, possibility switch off some from showers)
- marking of the buttons by symbols could be made to order
- the possibility of obtaining the statistical information, device diagnostics
- lockable
- for indoor use, temperature range +5 to +40 °C
- material stainless steel AISI 304 (1.4301)
- brushed finish
- Order number: 88013
I am interested in more information:
Supply specification
SLZA 01N - Supply No. 88013 - stainless steel coin device with electronics, coin holder and coin box, set of keys (2 pcs.)
Technical information
| Installation: | wall hung |
| Dimensions: |
300 x 165 x 132 mm |
| Weight: |
4,1 kg |
| Thickness of material: |
1,5 mm |
| Operating voltage: | 24 V DC |
| Power input: |
26 W
(depends on the accessories and the number of showers) |
| Accepted coins: | 1 and 2 €, token (other currencies on request) |
| Switch on delay: | 0 – 255 sec., standard 30 sec. |
| Showering time: | 5 – 1200 sec. |
Downloads
- Mounting instructions (2.58 MB)
- User guide (29.16 kB)
- Catalogue list (990.68 kB)
- Circuit diagram (1.02 MB)
- 2D Drawing (334.52 kB)
