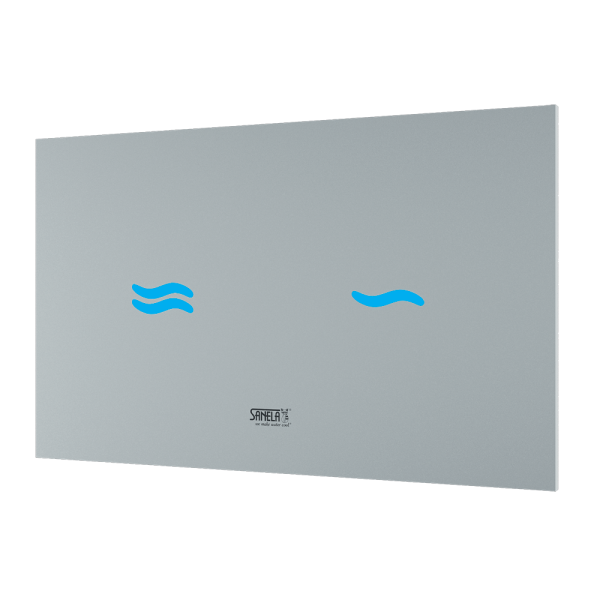

SLW 30A
Electronic touch toilet flushing unit, glass colour REF 9003 white, backlighting blue, 24 V DC
Characteristics
- is destined for mounting to the mounting frame SLR 21
- water is flowing after the gentle touch of a symbol on a glass cover
- flushing time: „short flushing“ (2 s), „long flushing“ (5 s)
- automatic hygiene flush after each eighth flush or 24 hours non using of toilet
- parameters adjustment using by the remote control SLD 04
- Order number: 04300
I am interested in more information:
Supply specification
SLW 30A - Supply No. 04300 - glass cover in stainless steel mounting frame with electronics and two buttons, (colour white REF 9003, backlit blue), stainless steel holder of electromagnet, electromagnet
Technical information
| Flushing type: | from tank in mounting frame |
| Material: | glass |
| Power supply: | 24V DC |
| Control: | electronic touch |
| Glass cover dimension: | 230 x 150 mm |
| Operating voltage: | 24 V DC |
Downloads
- Mounting instructions (2.78 MB)
- Catalogue list (175.38 kB)
- 2D Drawing (86.9 kB)
