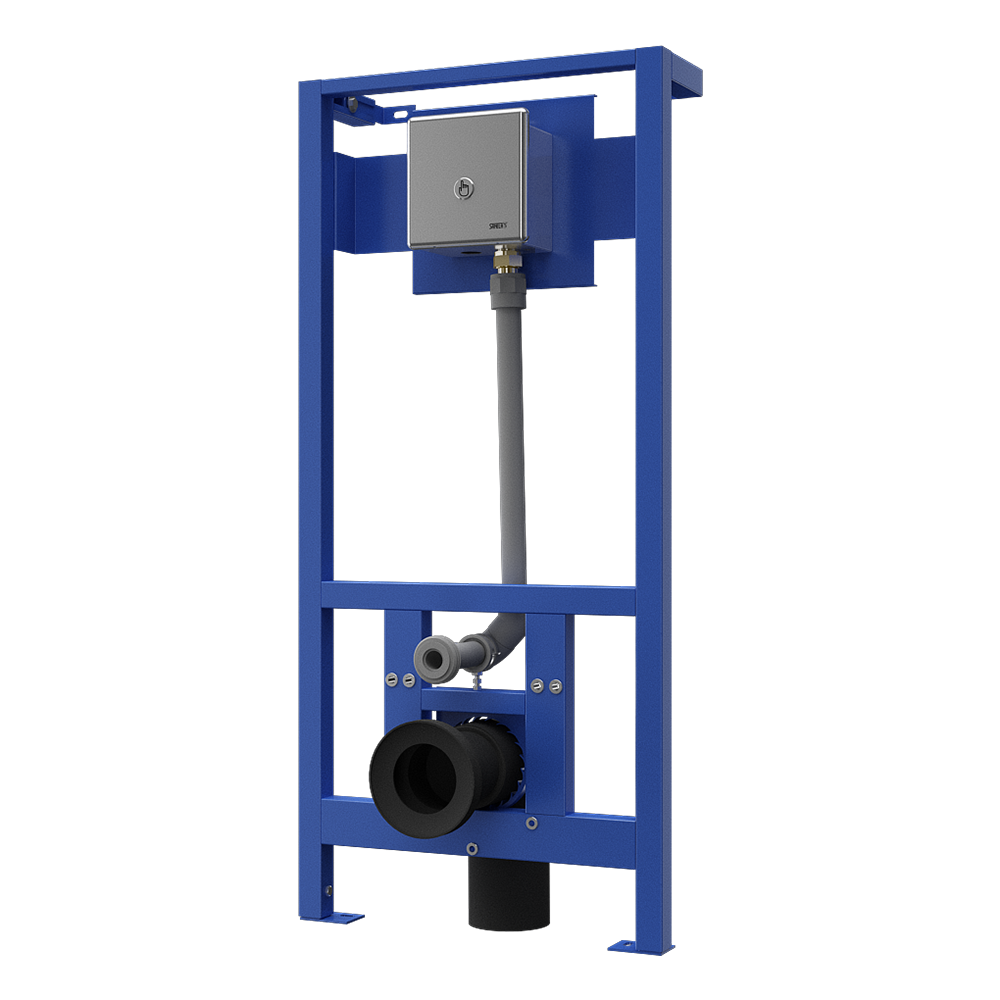

SLW 10PX
Set of SLW 01PX and SLR 03, brushed, 24 V DC
Characteristics
- vandal-proof design
- including mounting frame SLR 03
- frame designed for brick partition
- five-point system for mounting stainless steel WC
- metal frame structure with blue surface finish powder coating
- mounting screws M10, waste holder with connection kit Ø 50 mm and waste holder with elbow Ø 110 mm
- is intended for pressurized water from the supply, cannot be used for toilets with cistern
- responds to a gentle press of the piezo button with immediate flushing
- flush duration of the flush is adjustable from 0.5 to 15.5 s, standard 8 s
- automatic flushing after 24 hours non-use
- parameter setting using remote control SLD 04
- brushed finish
- Order number: 04100
- EAN: 8591385041006
I am interested in more information:
Supply specification
SLW 10PX - Supply No. 04100 - stainless steel cover with piezo electronics, stainless steel mounting box with screw connection and with solenoid valve, outlet fitting with gasket, mounting frame SLR 03
Technical information
| Stainless steel cover dimensions: |
170 x 160 x 10 mm |
| Mounting box dimensions: |
150 x 150 x 100 mm |
| Frame dimensions: |
1120 - 1290 x 510
x 155 - 235 mm |
| Operating voltage: |
24 V DC |
| Power input: |
7 W |
| Recommended flow pressure: |
0.15 - 0.6 MPa |
| Rate of flow: |
70 l/min. (inf. data) |
| Water inlet: |
cross-section min. 32 mm
(PN 16) external thread
min. G 1″ |
| Water outlet: |
outlet fitting with gasket |
Downloads
- Mounting instructions (7.32 MB)
- Catalogue list (162.92 kB)
- 2D Drawing (468.45 kB)
