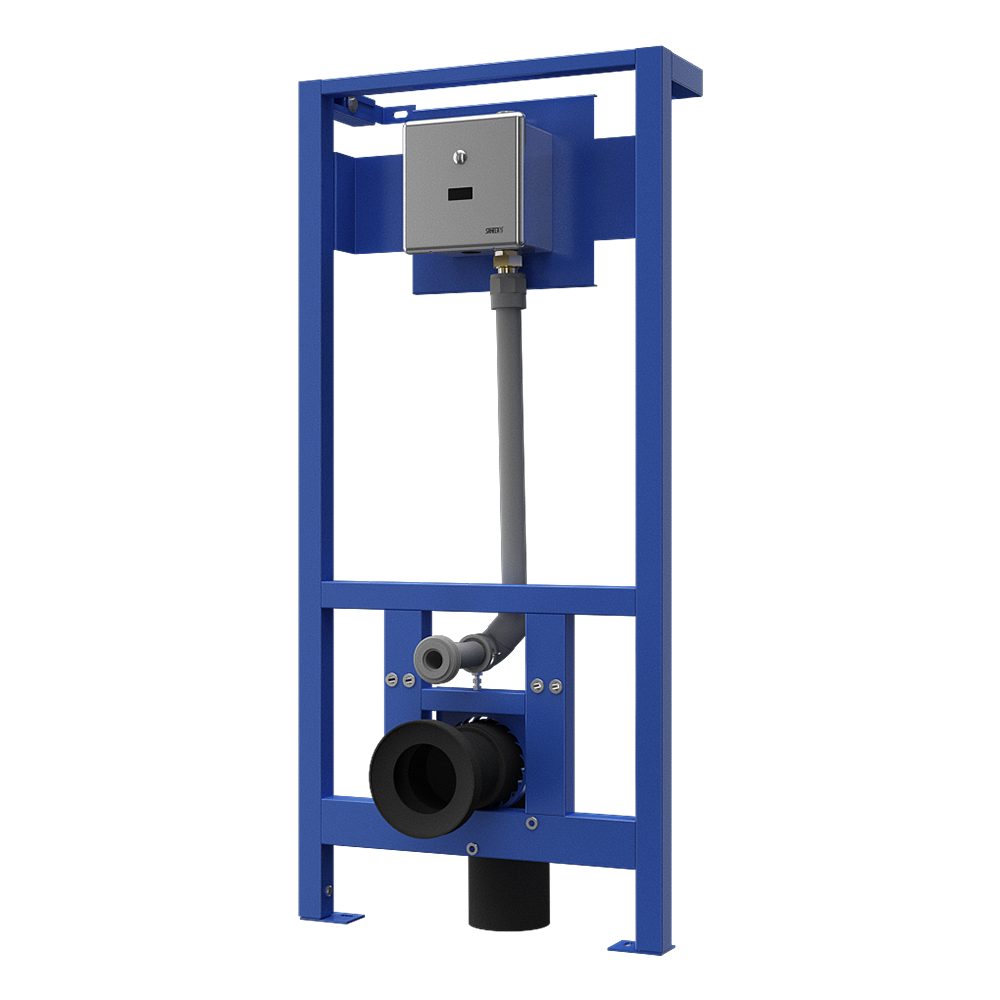

SLW 10NKX
Toilet flushing unit for pressured water, brushed, 24 V DC
Characteristics
- includes Bluetooth control (paid Sanela Control app for download)
- including mounting frame SLR 03
- frame designed for brick partition
- five-point system for mounting stainless steel WC
- metal frame structure with blue surface finish powder coating
- mounting screws M10, waste holder with connection kit Ø 50 mm and waste holder with elbow Ø 110 mm
- is intended for pressurized water from the supply, cannot be used for toilets with cistern
- responds to the presence of a person in front of the sensor at a distance of max. 0.7 m from the sensor for longer than 7.5 s
- flushing occurs after the person leaves the monitored zone “short flush” (2 s) = the presence time of a person in the monitored zone is from 7.5 s to 45 s “long flush” (5 s) = the presence time of a person in the monitored zone is longer than 45 s
- the duration of the long flush is adjustable from 0.5 to 15.5 s
- possibility of additional manual flushing by electro-mechanical button (e.g. during cleaning)
- automatic flushing automatic flushing after 24 hours non-use
- parameter setting and communication with electronics via Sanela Control application (Bluetooth) or remote control SLD 03
- brushed finish
- Order number: 04107
- EAN: 8591385041075
I am interested in more information:
Supply specification
SLW 10NKX - Supply No. 04107 - stainless steel cover with electronics including Bluetooth module, stainless steel mounting box with union and with solenoid valve, outlet fitting with gasket, mounting frame SLR 03
Technical information
| Stainless steel cover dimensions: |
170 x 170 x 10 mm |
| Mounting box dimensions: |
150 x 150 x 100 mm |
| Frame dimensions: |
1120 - 1290 x 510
x 155 - 235 mm |
| Operating voltage: |
24 V DC |
| Power input: |
7 W |
| Active range: |
0,6 - 0,75 m |
| Recommended flow pressure: |
0.15 - 0.6 MPa |
| Rate of flow: |
70 l/min. (inf. data) |
| Water inlet: |
cross-section
min. 32 mm
(PN 16) external
thread min. G 1″ |
| Water outlet: |
outlet fitting
with gasket |
Downloads
- Mounting instructions (8.11 MB)
- Catalogue list (175.5 kB)
- 2D Drawing (512.42 kB)
Accessories
