SLW 01NK

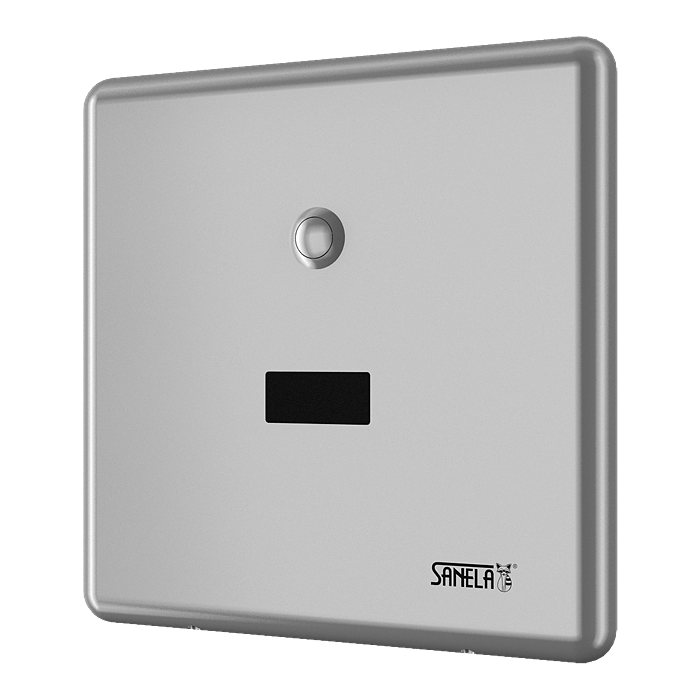

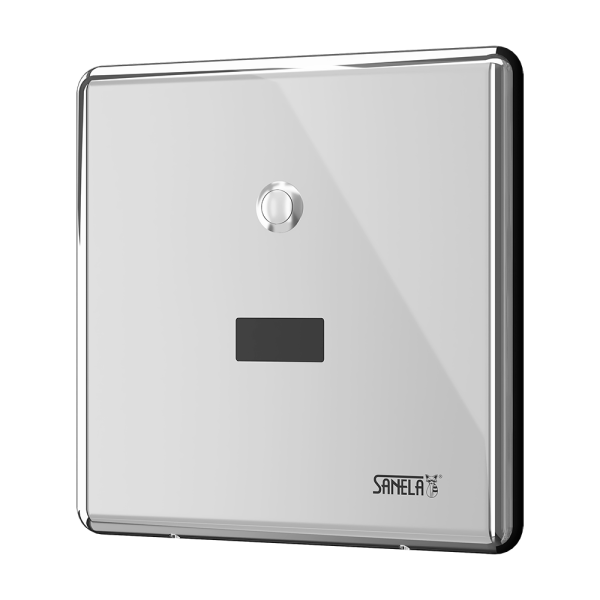

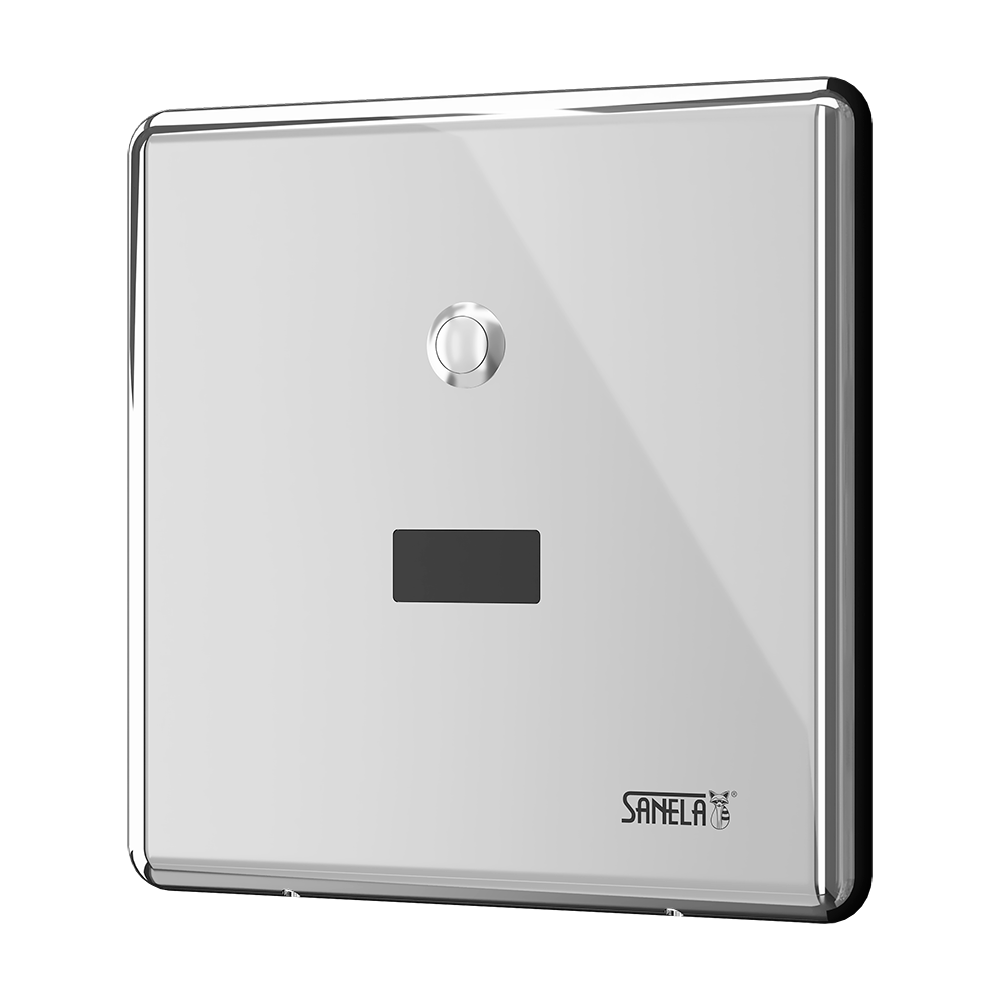

Toilet flushing unit for pressured water, 24 V DC

Characteristics

toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
system reacts to the user attendance in active range of the sensor at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
water flows after the user leaves active range
adjustable flushing time 0,5 - 15,5 s
possibility of additional manual flush by push-button (f.e. during the cleaning)
automatic hygiene flush after each 8 use of toilet and after 24 hours non-use
electromagnetic valve with a possibility to regulate rate of flow, possibility to flush a toilet by turn of coil of the electromagnetic valve (f.e. in the case of electricity blackout)
parameters adjustment by remote control SLD 03

Order number	04015
Code	SLW 01NK

Supply specification

SLW 01NK - Supply No. 04015 - stainless steel cover with electronics, stainless steel mounting box with brass screw coupling and electromagnetic valve, inlet fitting with a rubber sealing

Technical information

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,8 MPa
Rate of flow: 60 l/min. (inf. data)
Water inlet: male thread G 1″
Water outlet: inlet fitting with a rubber sealing
