SLW 01NKB
Toilet flushing unit for pressured water, 6 V
Characteristics
- toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
- system reacts to the user attendance in active range of the sensor at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- possibility of additional manual flush by push-button (f.e. during the cleaning)
- automatic hygiene flush after each 8 use of toilet and after 24 hours non-use
- electromagnetic valve with a possibility to regulate rate of flow, possibility to flush a toilet by turn of coil of the electromagnetic valve (f.e. in the case of electricity blackout)
- monitoring of battery capacity
- parameters adjustment by remote control SLD 03
- Order number: 04017
I am interested in more information:
Supply specification

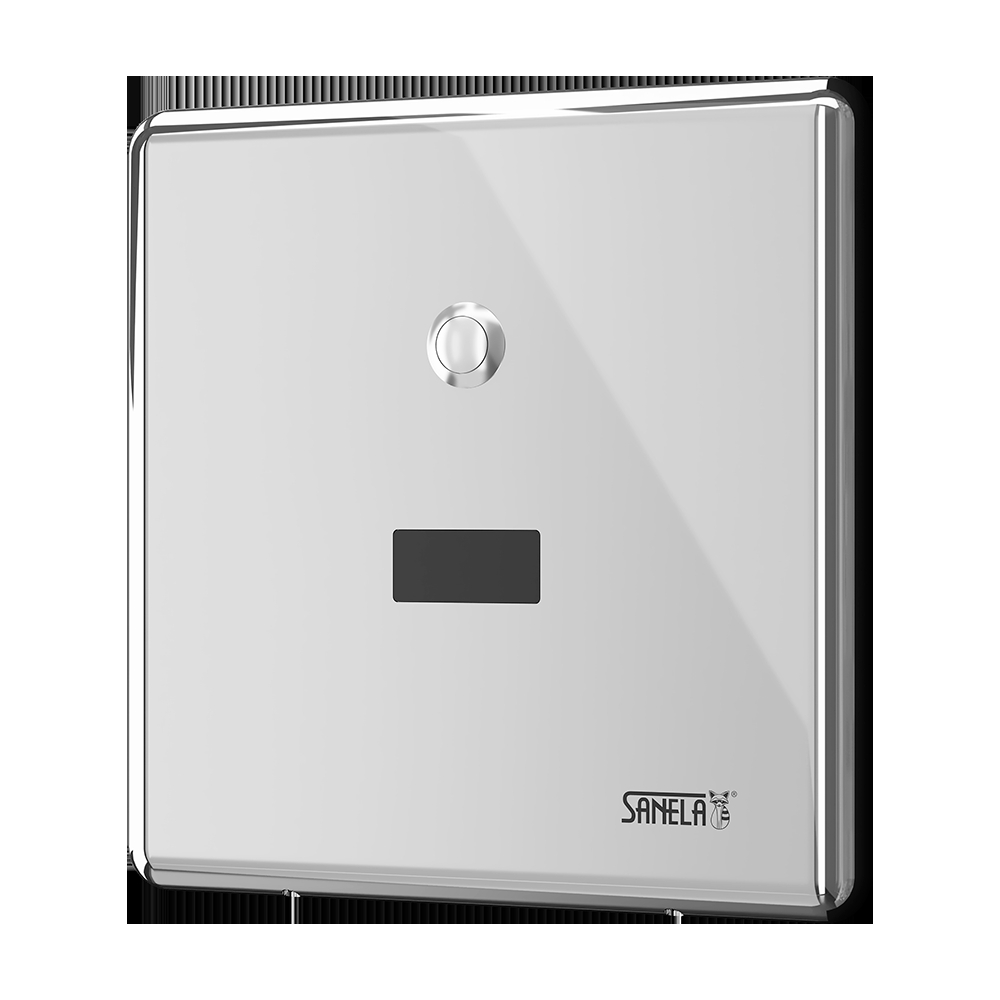

SLW 01NKB - Supply No. 04017 - stainless steel cover with electronics, stainless steel mounting box with brass screw coupling and electromagnetic valve, inlet fitting with a rubber sealing, 4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh
Technical information
Flushing type: | for a pressured water |
Material: | stainless steel |
Power supply: | battery operated |
Control: | infra-red |
Stainless steel cover dimension: | 170 x 170 x 10 mm |
Mounting box dimension: | 145 x 155 x 100 mm |
Operating voltage: | 6 V |
Active range: | 0,6 - 0,75 m |
Recommended flow pressure: | 0,15 - 0,6 MPa |
Rate of flow: | 70 l/min. by the pressure 0,15 MPa (inf. data) |
Water inlet: | Ø min. 32 mm (PN 16) male thread G 1″ |
Water outlet: | male thread G 1″ |
Downloads
- Mounting instructions (2.73 MB)
- Catalogue list (279.37 kB)
- 2D Drawing (114.08 kB)
