SLUN 81P

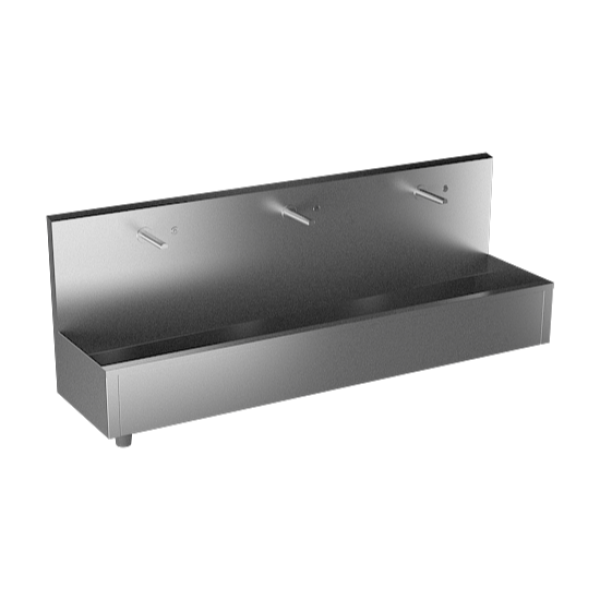

Stainless steel wall hung trough with 3 integrated piezo electronics, length 1900 mm, brushed, 24 V DC
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- vandal-proof
- suitable for medical facilities
- stainless steel wall hung washing troughs with integrated piezo electronics
- vandal-proof stainless steel spouts
- SLUN 81P, PT - length 1900 mm (3 pcs. of electronics, 1 pc. of bracket)
- water flows after soft push of the piezo button
- water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
- water could be stopped by follow-up soft push of piezo button
- parameter adjustment using by the remote control SLD 04
- temperature is regulated by angle valves
- different lengths could be made to order
- material AISI - 304
- could be made to order from stainless steel AISI - 316L
- brushed finish
- Order number: 93814
- EAN: 8591385938146
I am interested in more information:
Supply specification
SLUN 81P - Supply No. 93814 - stainless steel washing trough with piezo electronics and spouts, electromagnetic valve (3 pcs.), connecting hoses, angle valve with filter (2 pcs.), siphon, mounting set, supportive stainless steel bracket (1 pc.)
Technical information
| Operating voltage: | 24 V DC |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (3.32 MB)
- Catalogue list (231.52 kB)
- 2D Drawing (221.47 kB)
