SLUN 80PA

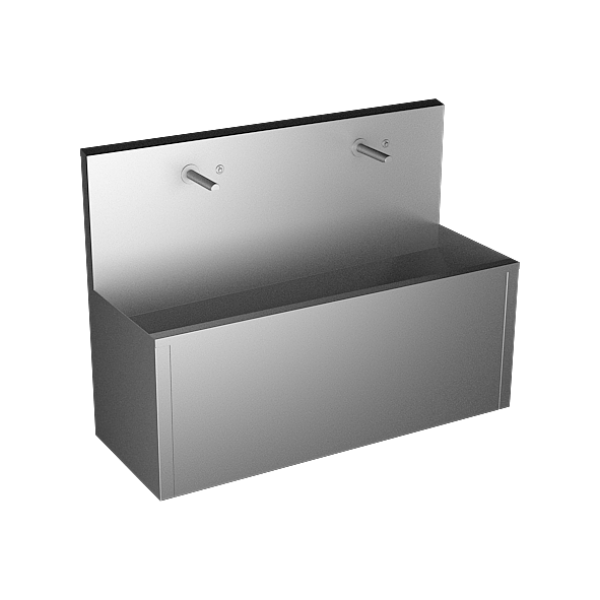

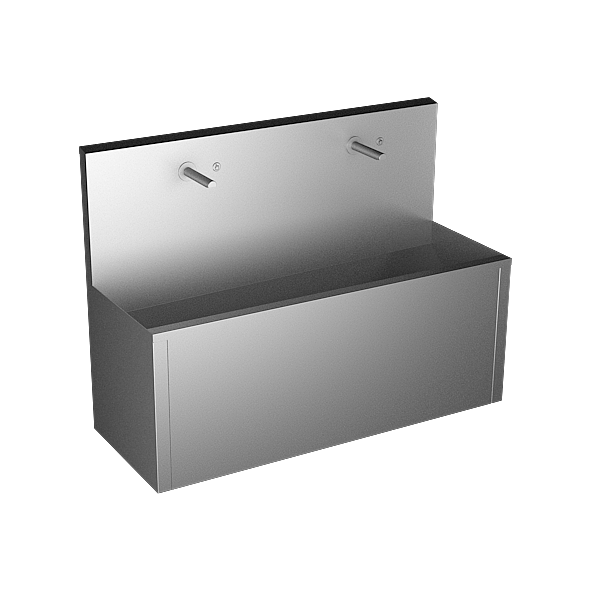

Vandal-proof stainless steel wall hung trough with 2 integrated piezo electronics, length 1250 mm, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • suitable for a prison
  • with a complete apron
  • stainless steel wall hung washing trough with integrated piezo electronics
  • vandal-proof stainless steel spouts
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
  • water could be stopped by follow-up soft push of piezo button
  • parameter adjustment using by the remote control SLD 04
  • different lengths could be made to order
  • material AISI - 304
  • could be made to order from stainless steel AISI - 316L
  • brushed finish
  • Order number: 93800
I am interested in more information:

Supply specification

SLUN 80PA - Supply No. 93800 - stainless steel washing trough with piezo electronics (2 pcs.), spout (2 pcs.), electromagnetic valve (2 pcs.), connecting hoses, angle valve with filter (2 pcs.), siphon, mounting set

Technical information

Temperature regulation: for cold and hot water
Installation: wall hung
Category: trough
Control: piezo
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
