SLUN 51ET

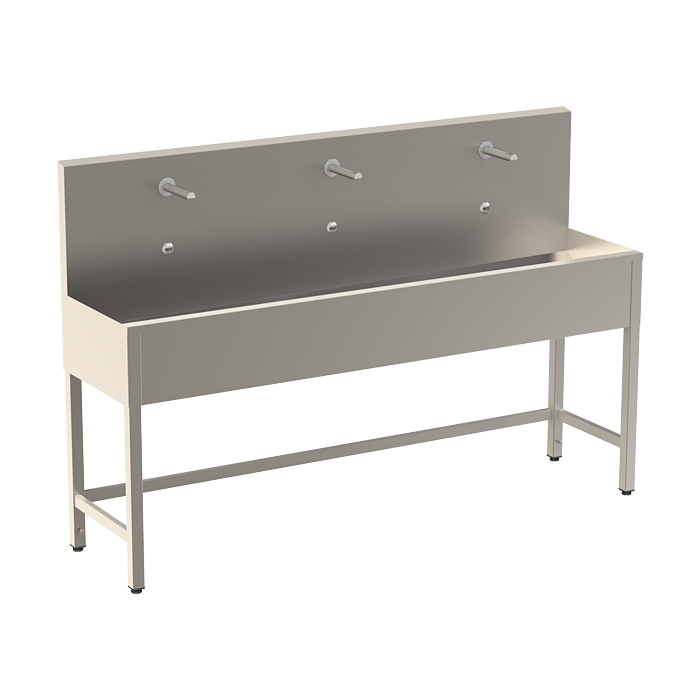

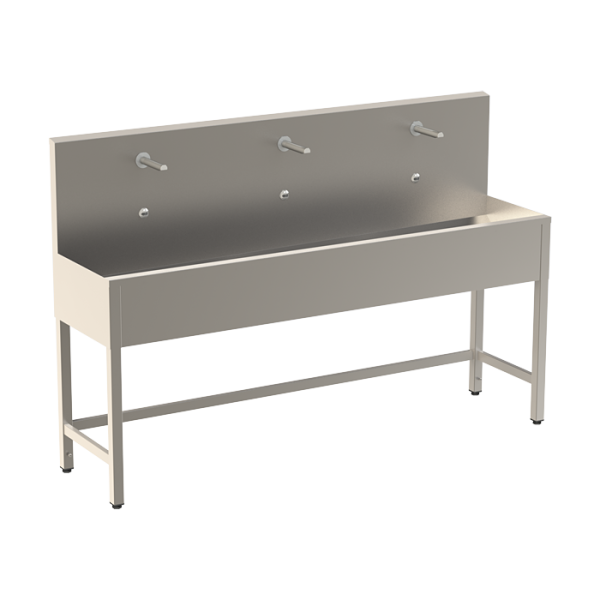

Stainless steel trough with 3 integrated electronics, thermostatic valve, length 1900 mm, 24 V DC

Characteristics

  • economical aerator, rate of flow 6l/min
  • hygienic flush
  • suitable for medical facilities
  • stainless steel floor standing washing troughs with integrated electronics
  • vandal-proof stainless steel spouts and sensing heads
  • SLUN 51E, ET - length 1900 mm (3 pcs. of electronics)
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • temperature is regulated by thermostatic valve
  • different lenghts could be made to order
  • material AISI - 304
  • could be made to order from stainless steel AISI - 316L
  • brushed finish
Order number 93513
Code SLUN 51ET

Supply specification

SLUN 51ET - Supply No. 93513 - stainless steel washing trough with electronics and spouts, electromagnetic valve (pcs. according to number of electronics), connecting hoses, angle valve with filter and check valve (2 pcs.), siphon, thermostatic valve

Technical information

Operating voltage: 24 V DC
Active range: 0,23 - 0,31 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
  • Print

Accessories

Remote control for an adjustment of…
External power supply 230/24 V DC
External power supply 230/24 V DC
External power supply 24 V DC for mounting…
External power supply 24 V DC for mounting…
External power supply 24 V DC for mounting…
