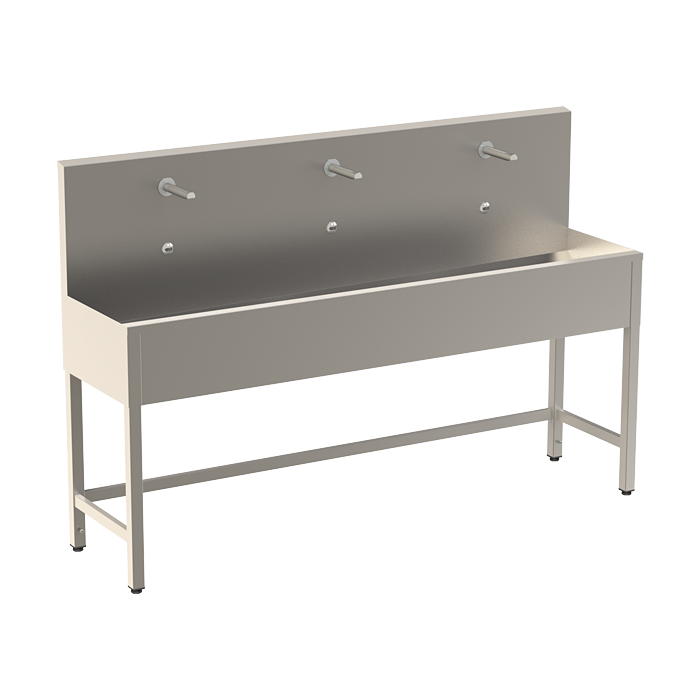

SLUN 51E

Stainless steel trough with 3 integrated electronics, length 1900 mm, 24 V DC

Characteristics

  • economical aerator, rate of flow 6l/min
  • hygienic flush
  • suitable for medical facilities
  • stainless steel floor standing washing troughs with integrated electronics
  • vandal-proof stainless steel spouts and sensing heads
  • SLUN 51E, ET - length 1900 mm (3 pcs. of electronics)
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • temperature is regulated by angle valves
  • different lenghts could be made to order
  • material AISI - 304
  • could be made to order from stainless steel AISI - 316L
  • brushed finish
Order number 93511
Code SLUN 51E

Supply specification

SLUN 51E - Supply No. 93511 - stainless steel washing trough with electronics and spouts, electromagnetic valve (pcs. according to number of electronics), connecting hoses, angle valve with filter and check valve (2 pcs.), siphon

Technical information

Operating voltage: 24 V DC
Active range: 0,23 - 0,31 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
  • Print

Accessories

Remote control for an adjustment of…
External power supply 230/24 V DC
External power supply 230/24 V DC
External power supply 24 V DC for mounting…
External power supply 24 V DC for mounting…
External power supply 24 V DC for mounting…
