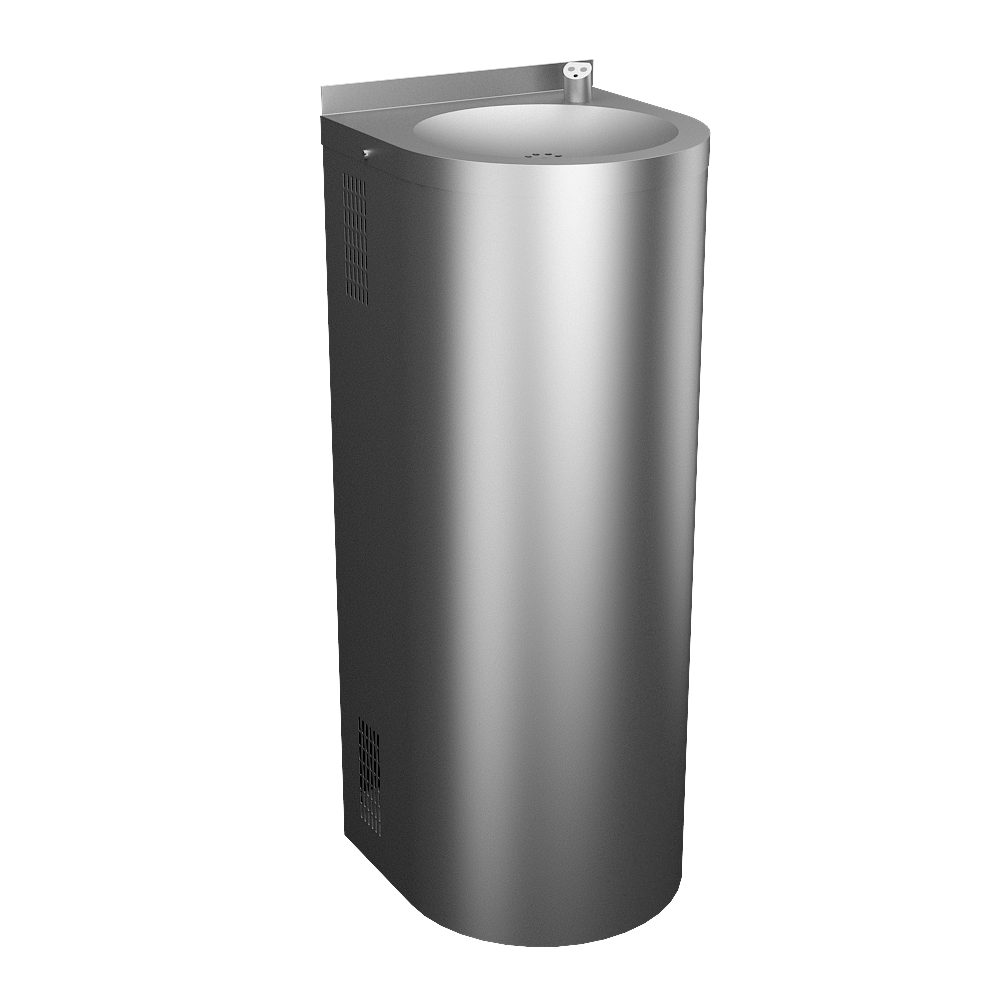

SLUN 43E

Stainless steel floor mounted automatic drinking fountain, 24 V DC

Characteristics

hygienic flush
stainless steel floor standing drinking fountain with automatic infra-red drinking spout
mounting to the wall
system reacts to the user‘s face in front of the sensor
water stops after user leaving the active range of the sensor
function of automatic water stop after 5 minut of continuous flow
START/STOP program
parameter adjustment using by the remote control SLD 03
water flow regulation on drinking spout
filled with expanded polyurethane (to avoid dents and typical metal noise)
material AISI - 304
inner bowl high polished finish, sheating brushed finish

Code	SLUN 43E
Order number	83437

Supply specification

SLUN 43E - Supply No. 83437 - stainless steel drinking fountain, drinking spout with electronics, electromagnetic valve (1 pc.), angle valve with filter and check valve (1 pc.), connecting hoses, siphon

Technical information

Operating voltage: 24 V DC
Active range: 0,23 - 0,31 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 0,4 l/min. (inf. data)
Water inlet: male thread G 1/2"
