SLUN 43EB

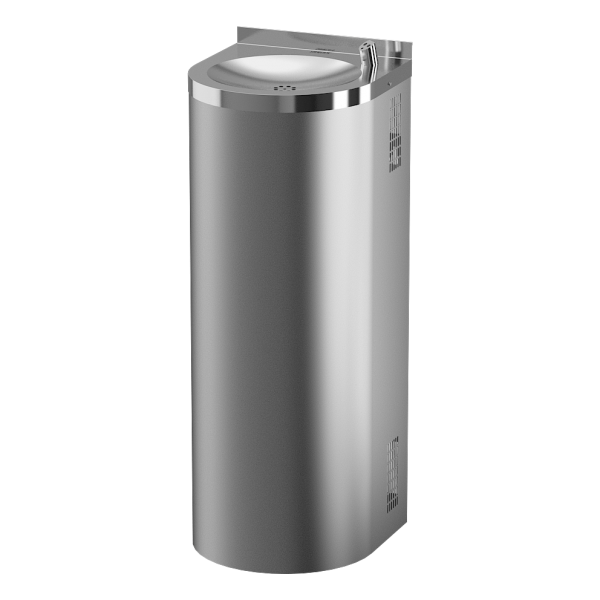

Stainless steel floor mounted automatic drinking fountain, 6 V
Characteristics
- hygienic flush
- stainless steel floor standing drinking fountain with automatic infra-red drinking spout
- mounting to the wall
- system reacts to the user‘s face in front of the sensor
- water stops after user leaving the active range of the sensor
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- water flow regulation on drinking spout
- filled with expanded polyurethane (to avoid dents and typical metal noise)
- material AISI - 304
- inner bowl high polished finish, apron brushed finish
- Order number: 83436
I am interested in more information:
Supply specification
SLUN 43EB - Supply No. 83436 - stainless steel drinking fountain, drinking spout with electronics, electromagnetic valve (1 pc.), angle valve with filter and check valve (1 pc.), connecting hoses, siphon, 4 pcs. AA alkaline batteries 1,5 V. 2700 mAh
Technical information
| Temperature regulation: | for cold or premixed water |
| Power supply: | battery operated |
| Installation: | near by the wall |
| Installation: | standing |
| Control: | infra-red |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day) |
| Active range: | 0,23 - 0,31 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 1,4 l/min. (inf. data) |
| Water inlet: | male thread G 1/2" |
Downloads
- Mounting instructions (3.43 MB)
- Catalogue list (218.94 kB)
- 2D Drawing (160.25 kB)
