SLUN 14EN

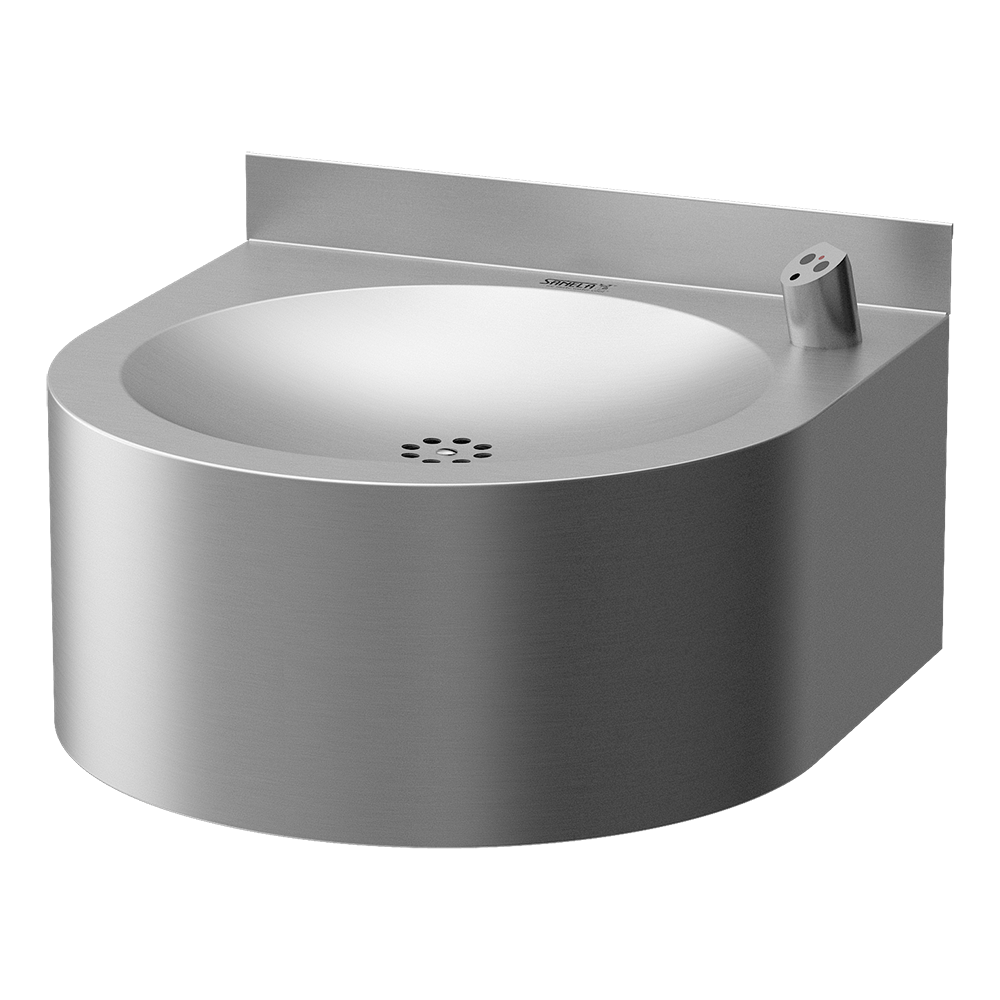

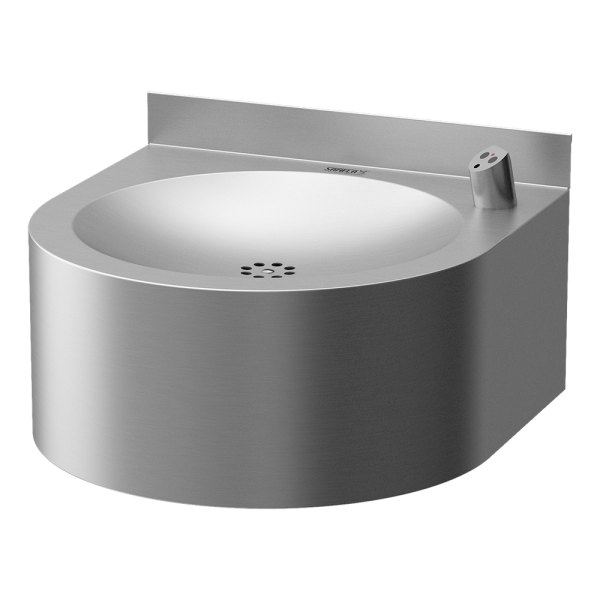

Stainless Steel Automatic Drinking Fountain, 24 V DC
Characteristics
- hygienic flush
- stainless steel wall hung drinking fountain with automatic infra-red drinking spout
- system reacts to the user‘s face in front of the sensor
- water stops after user leaving the active range of the sensor
- function of automatic water stop after 5 minutes of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- water flow regulation on drinking spout
- material stainless steel AISI 304 (1.4301)
- brushed finish
- Order number: 93145
- EAN: 8591385931451
I am interested in more information:
Supply specification
SLUN 14EN - Supply No. 93145 - stainless steel drinking fountain, drinking spout with electronics, electromagnetic valve (1 pc.), angle valve with filter (1 pc.), connecting hoses, siphon, mounting set
Technical information
| Dimensions: | 350 x 350 x 200 mm |
| Weight: | 2,5 kg |
| Operating voltage: | 24 V DC |
| Power input: | 7 W |
| Active range: | 0,23 - 0,31 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 1,4 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Catalogue list (143.11 kB)
- 2D Drawing (87.99 kB)
