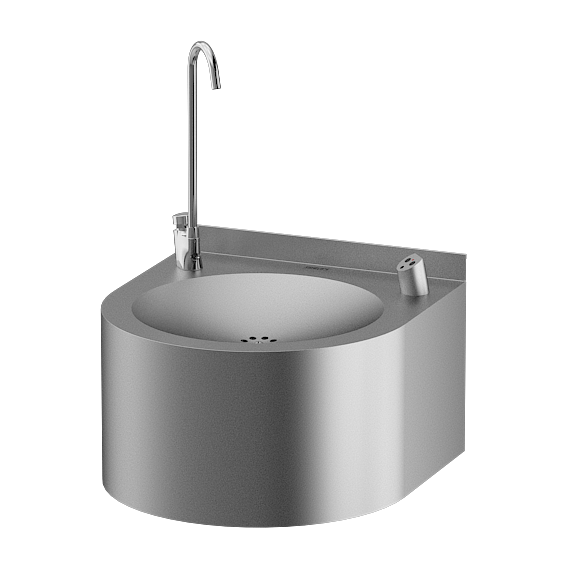

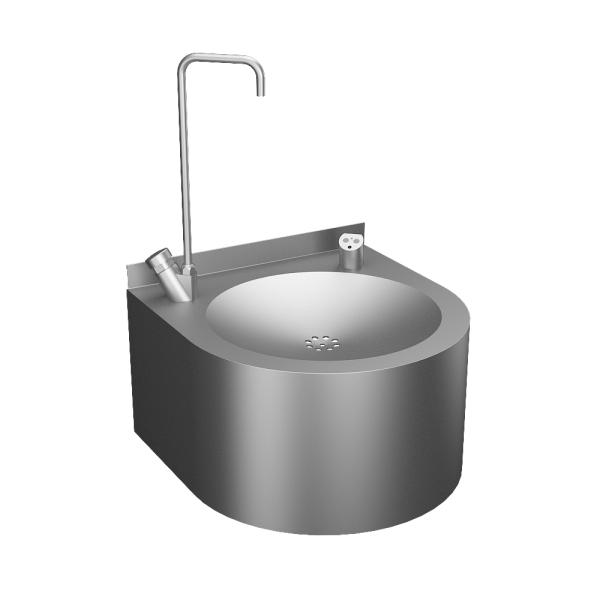

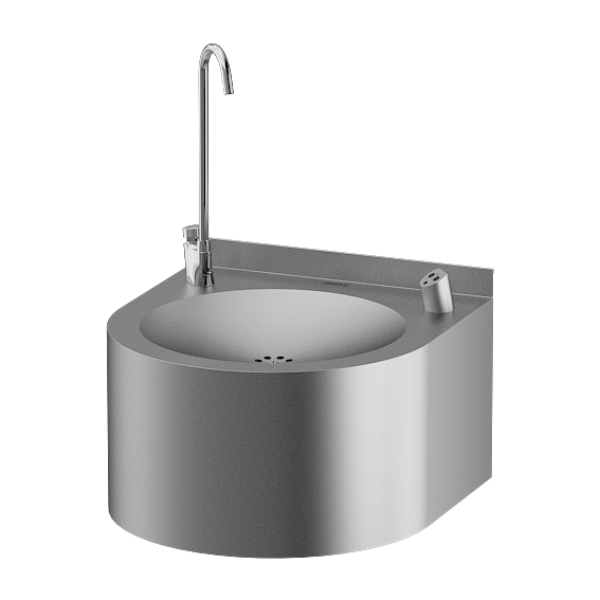

SLUN 62ESB
Stainless steel wall hung automatic drinking fountain and bottle filler, brushed, 6 V
Characteristics
- hygienic flush
- stainless steel wall hung drinking fountain with automatic infra-red drinking spout and bottle filler
- system reacts to the user‘s face in front of the sensor
- water stops after user leaving the active range of the sensor
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity (for models with index B)
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- water flow regulation on drinking spout
- material AISI - 304
- brushed finish
- Order number: 83627
- EAN: 8591385836275
I am interested in more information:
Supply specification
SLUN 62ESB - Supply No. 83627 - stainless steel drinking fountain, drinking spout with electronics, bottle filler, electromagnetic valve (1 pc.), angle valve with fi lter (1 pc.), connecting hoses, siphon, mounting set, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Technical information
Installation: | wall hung |
Control: | infra-red |
Material: | brushed stainless steel |
Power supply: | battery operated |
Other: | with bottle filler |
Operating voltage | 6 V |
Battery life | 4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh approx. 2 years (100 uses per day) |
Active range | 0,23 - 0,31 m |
Recommended flow pressure | 0,1 - 0,6 MPa |
Rate of flow | 0,4 l/min. (inf. data) |
Water inlet | male thread G 1/2" |
Downloads
- Mounting instructions (3.44 MB)
- Catalogue list (266.95 kB)
- 2D Drawing (237.64 kB)
