SLU 63

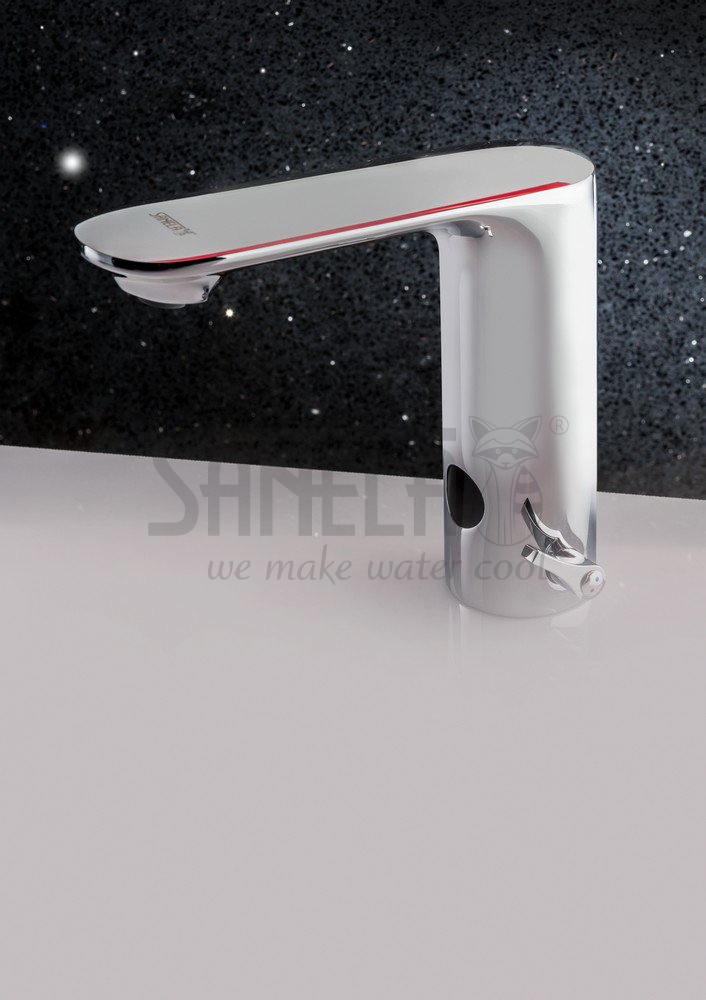

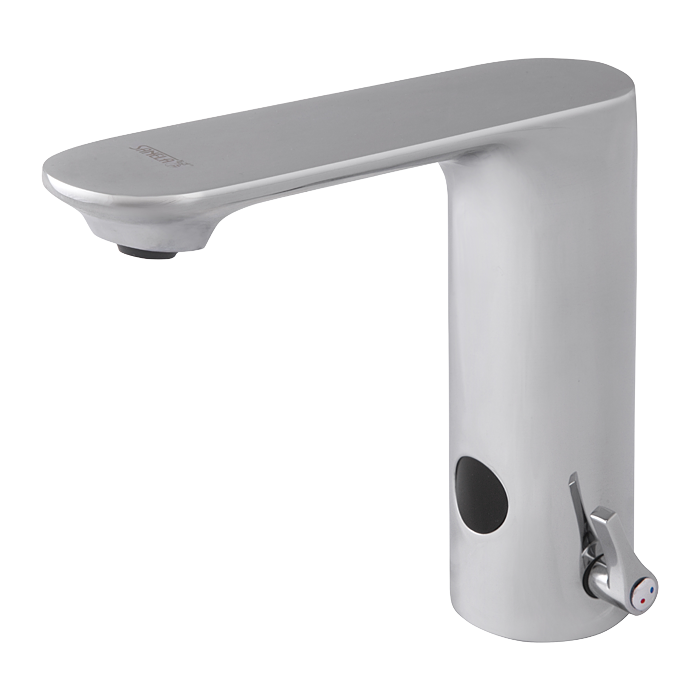

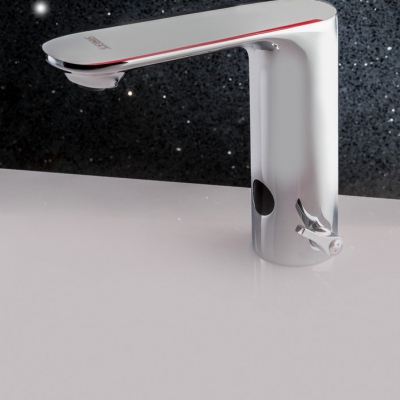

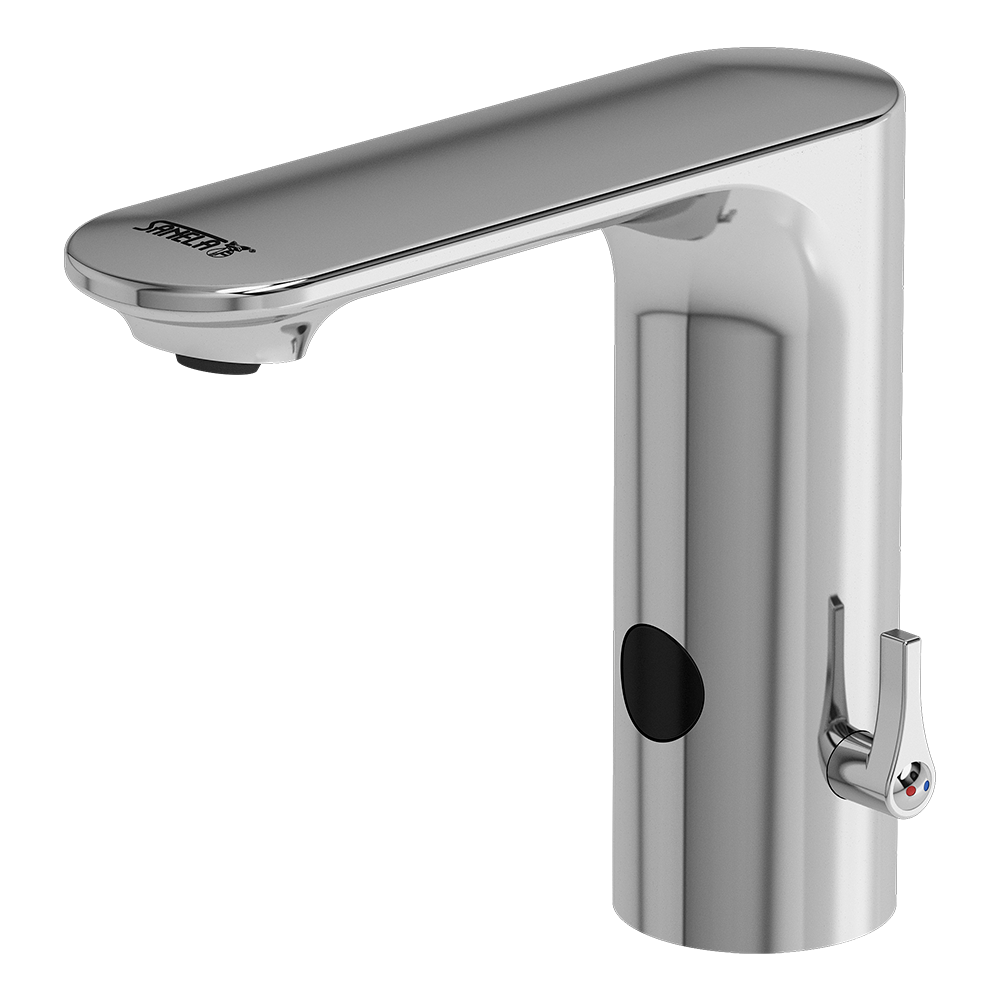

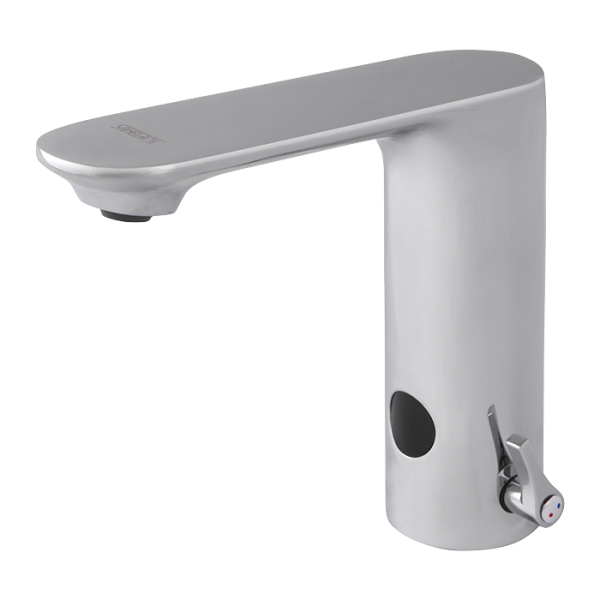

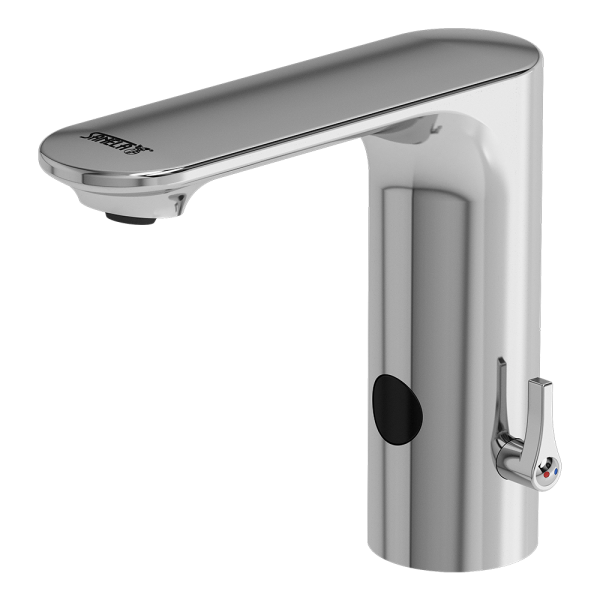

Automatic washbasin mixer, 24 V DC

Characteristics

  • includes Bluetooth control (paid Sanela control app available for download)
  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • possibility of water temperature adjustment by mixer and follow-up plug by cover
  • electromagnetic valve is in the tap body
  • is destined for cold and hot water, temperature is regulated by mixer
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 03
  • Order number: 03630
I am interested in more information:

Supply specification

SLU 63 - Supply No. 03630 - faucet with mixer, electronics and electromagnetic valve, connecting hoses, angle valve with filter and check valve (2 pcs.), cover for temperature mixer

Technical information

Material: chrome
Temperature regulation: with mixer
Power supply: 24V DC
Control: infra-red
Operating voltage: 24 V DC
Active range: standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
