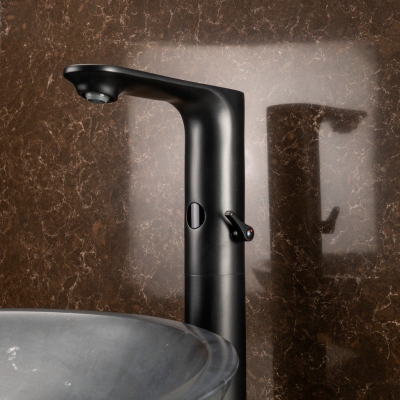

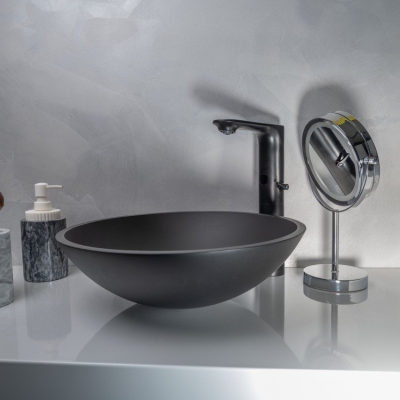

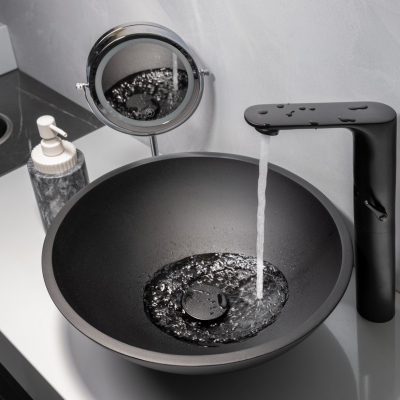

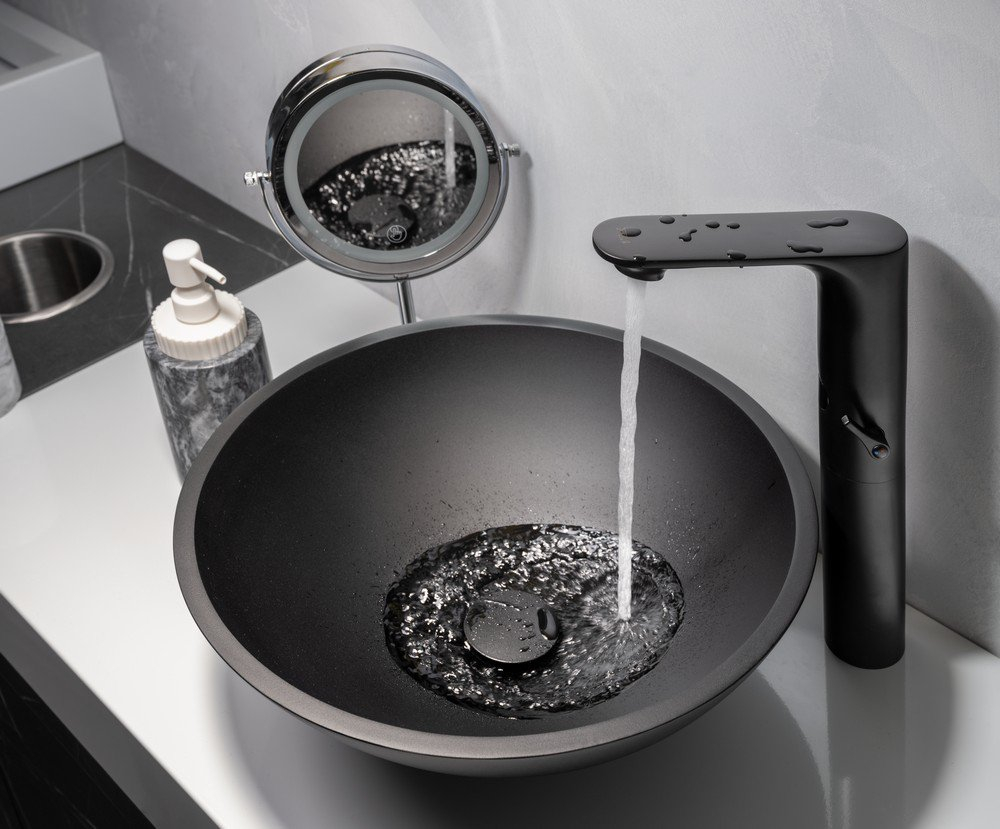

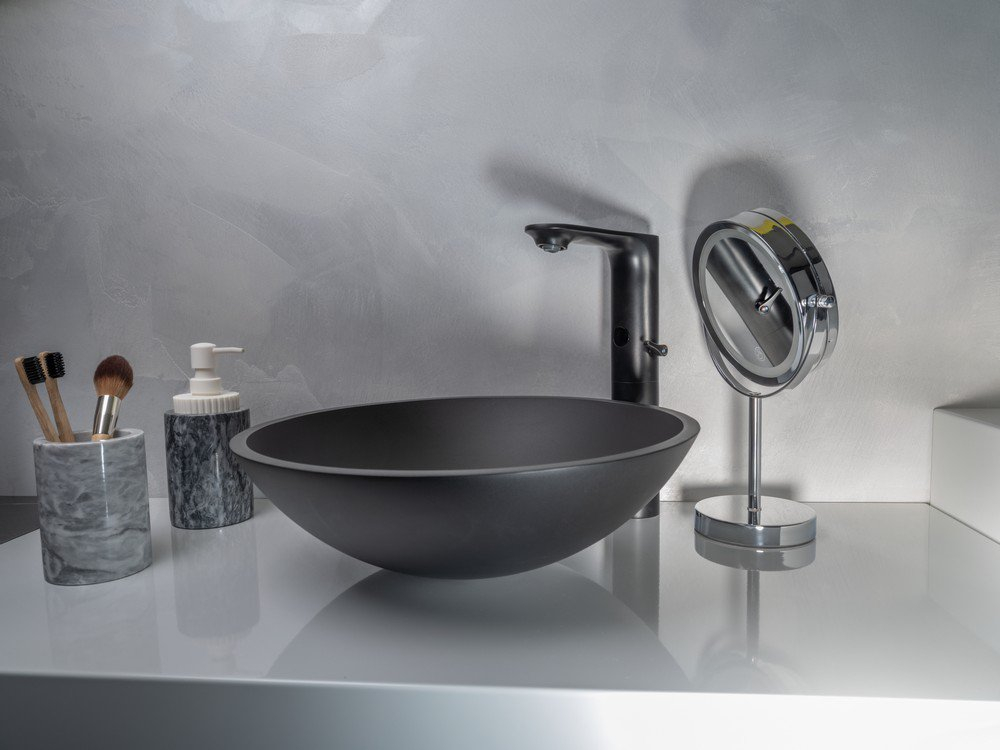

SLU 60VB
Automatic washbasin mixer, black, 6 V
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- possibility of water temperature adjustment by mixer and follow-up plug by cover
- is destined for washbasins on the desk
- max. height of washbasin is 150 mm
- electromagnetic valve is in the tap body
- is destined for cold and hot water, temperature is regulated by mixer
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity (for models with index B)
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 03607
- EAN: 8591385036071
I am interested in more information:
Supply specification
SLU 60VB - Supply No. 03607 - faucet with mixer, electronics and electromagnetic valve, connecting hoses, angle valve with filter and check valve (2 pcs.), cover for temperature mixer, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case
Technical information
Temperature regulation: | with mixer |
Power supply: | battery operated |
Control: | infra-red |
Operating voltage | 6 V |
Battery life | 4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh approx. 2 years (100 uses per day) |
Active range | standard 0,13 - 0,19 m |
START/STOP program 0,05 - 0,15 m | |
Recommended flow pressure | 0,1 - 0,6 MPa |
Rate of flow | 6 l/min. (inf. data) |
Water inlet | male thread G 1/2“ |
Downloads
- Mounting instructions (3 MB)
- Catalogue list (139.47 kB)
- 2D Drawing (261.22 kB)
