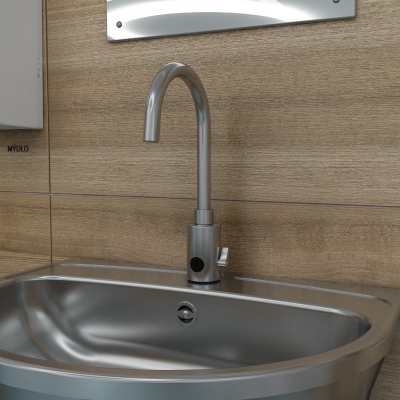

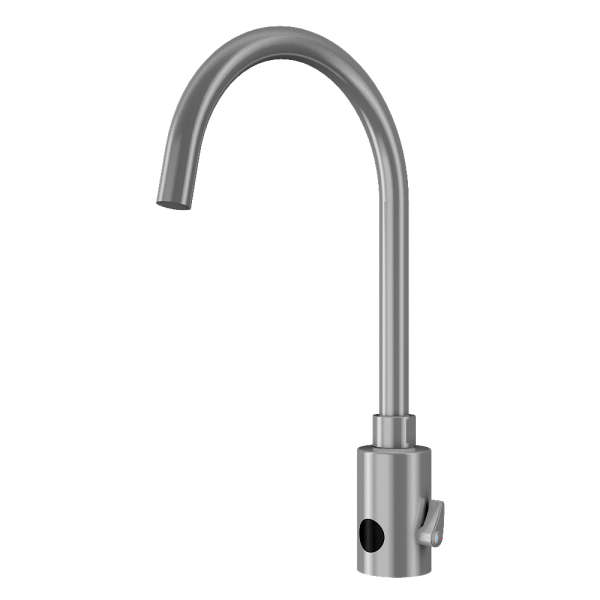

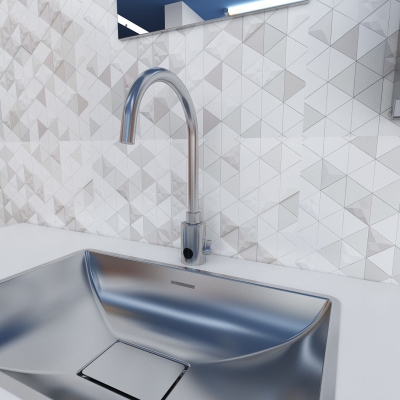

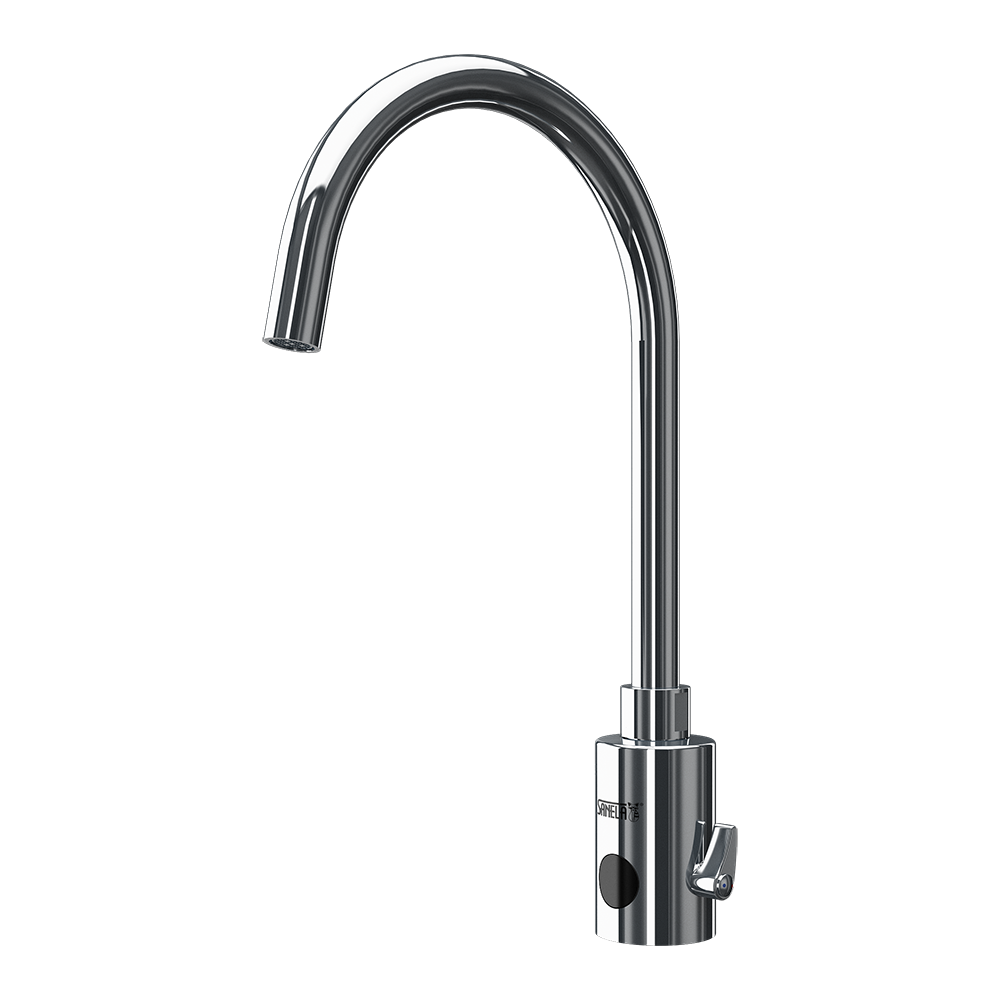

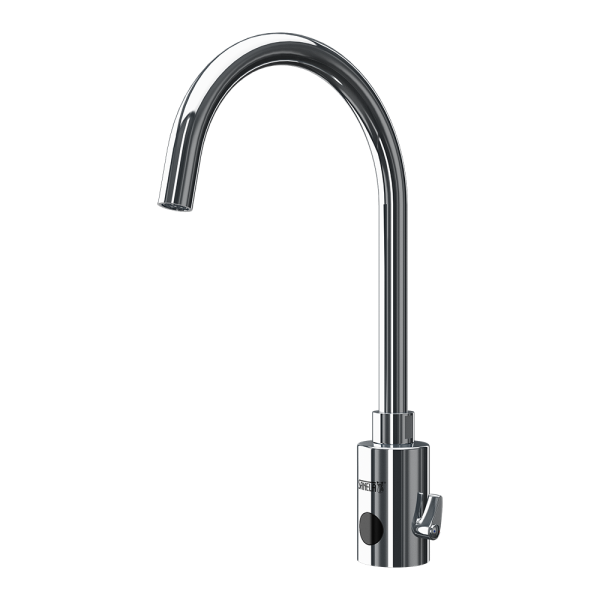

SLU 08LND
Washbasin elongated mixer, 24 V DC
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- suitable for medical facilities
- swivel faucet
- index „D“ - higher faucet
- are destined for cold and hot water, temperature is regulated by mixer
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 13183
- EAN: 8591385131837
I am interested in more information:
Supply specification
SLU 08LND - Supply No. 13183 - faucet with mixer and electronics and electromagnetic valve, connecting hoses, angle valve with filter and check valve (2 pcs.)
Technical information
| Material: | chrome |
| Temperature regulation: | with mixer |
| Power supply: | 24V DC |
| Control: | infra-red |
| Operating voltage: | 24 V DC |
| Active range: | standard 0,2 - 0,26 m |
| START/STOP program 0,05 - 0,15 m | |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (2.45 MB)
- Catalogue list (217.67 kB)
- 2D Drawing (92.37 kB)
