SLU 08LDB

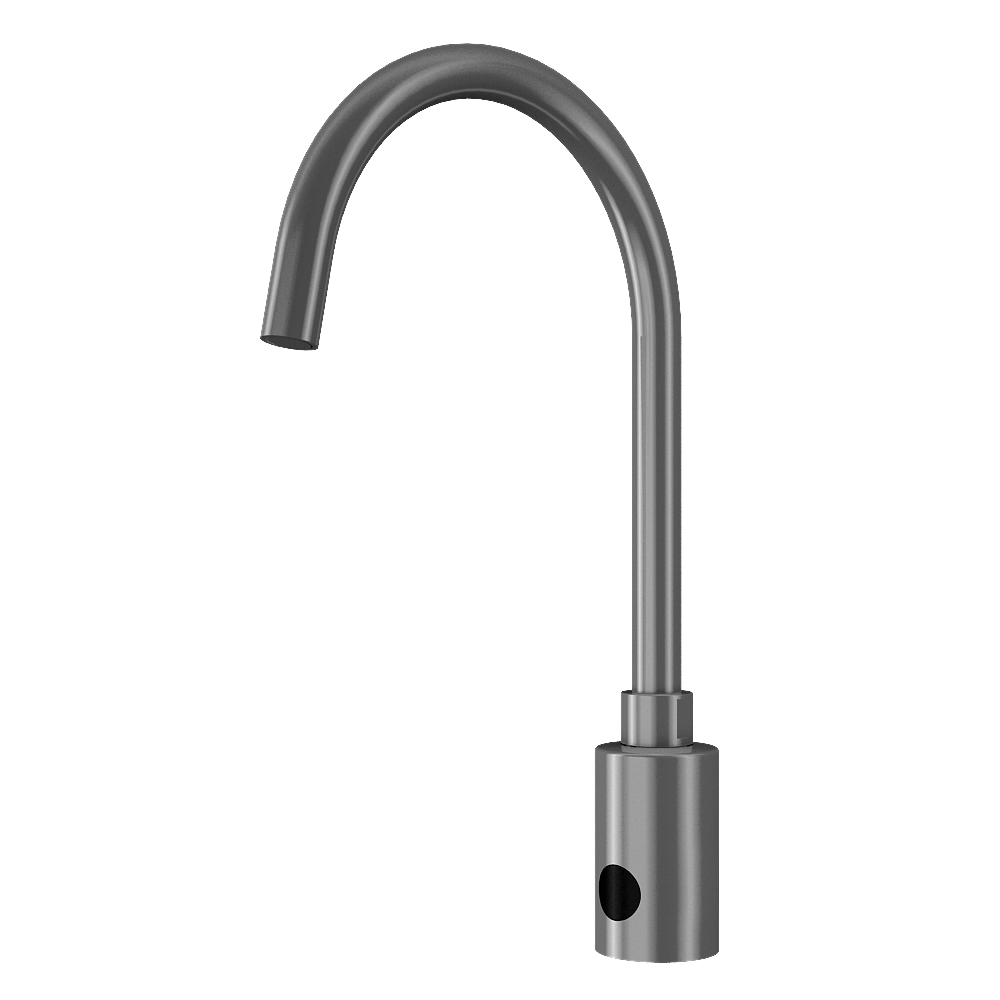

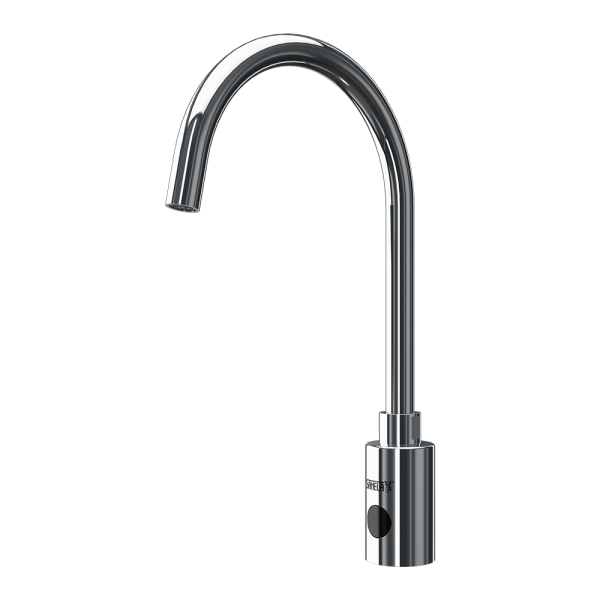

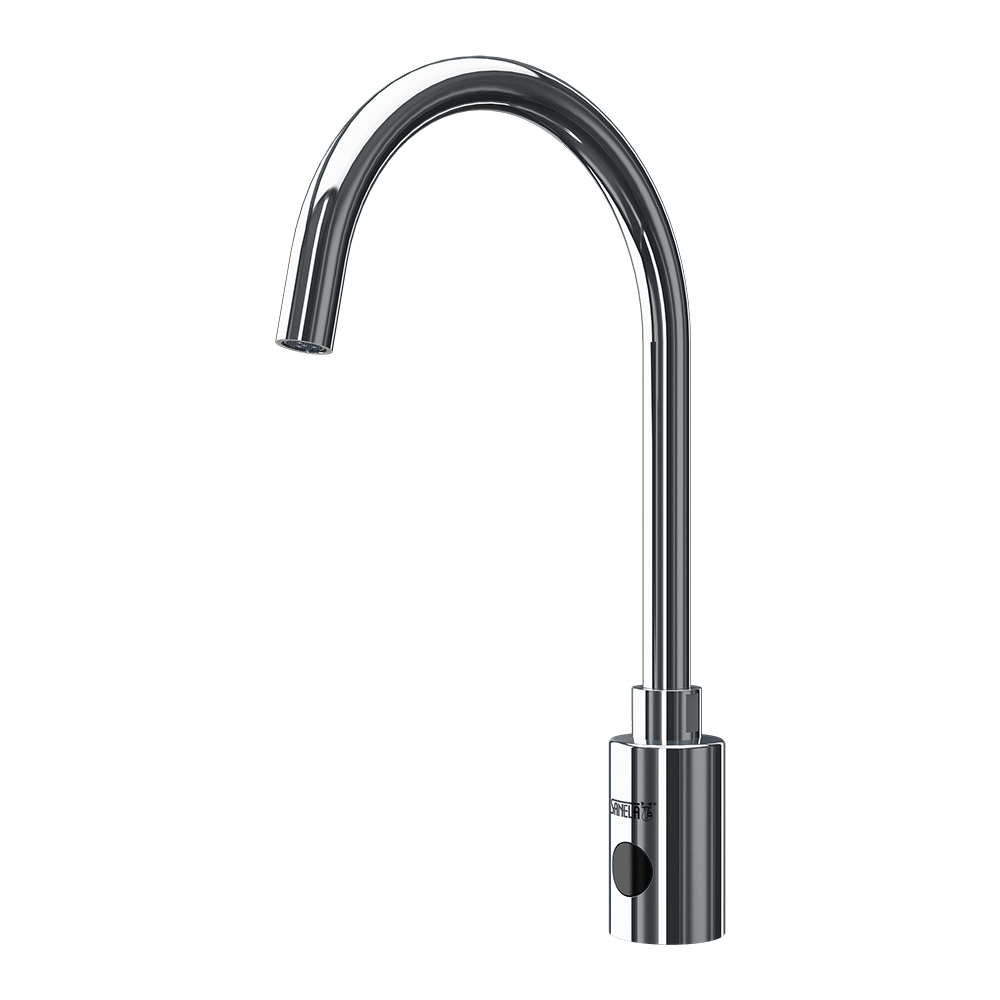

Washbasin elongated tap for cold and hot water, 6 V

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • suitable for medical facilities
  • swivel faucet
  • index „D“ - higher faucet
  • are destined for cold and hot water, temperature is regulated by angle valves
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in
  • range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 13180
  • EAN: 8591385131806
I am interested in more information:

Supply specification

SLU 08LDB - Supply No. 13180 - faucet with electronics and electromagnetic valve, Y-piece, connecting hoses, angle valve with filter and check valve (2 pcs.), aerator 6 l/min, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case

Technical information

Material: chrome
Temperature regulation: for cold and hot water
Power supply: battery operated
Control: infra-red
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries AA, 1,5 V, 2700 mAh (approx. 2 years 100 uses per day)
Active range: standard 0,2 - 0,26 m
  START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 13 l/min. or 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
