View category

SLU 04HT25B

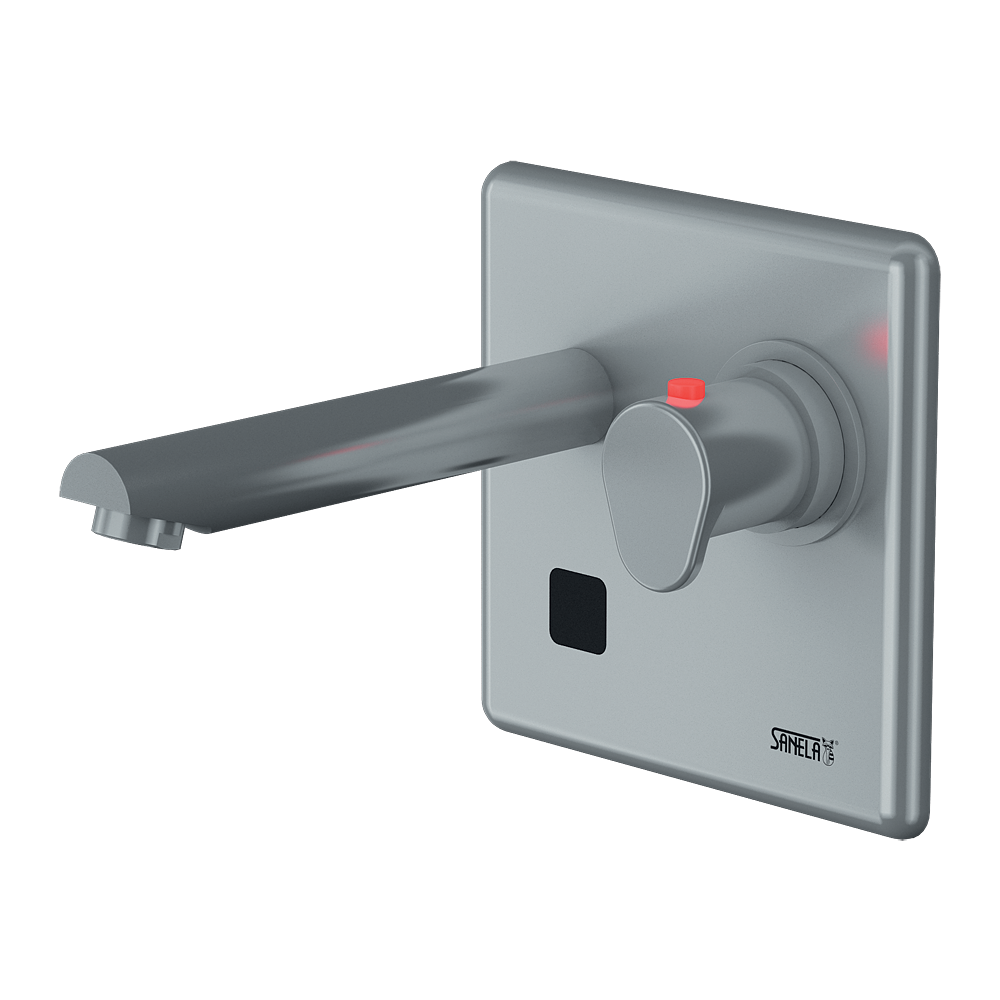

Wall-mounted thermostatic mixer, spout of 250 mm, 6 V

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • suitable for medical facilities
  • is destined for cold and hot water, temperature is regulated by thermostatic mixer
  • safety fuse against scalding
  • stop flowing of hot water till 1 s in case of cold water failure
  • pressure of hot and cold water must be same
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • water flow can be regulated by ball valve
  • Order number: 65044

Supply specification

SLU 04HT25B - Supply No. 65044 - spout, stainless steel cover with electronics, stainless steel mounting box with thermostat, electromagnetic valve, ball valve and screw coupling, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh

Technical information

material: stainless steel
temperature regulation: with thermostat
power supply: battery operated
control: infra-red
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 155 x 155 x 82 mm
Length of the spout: 250 mm
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh approx. 2 years (100 uses per day)
Active range: standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 3/4“
