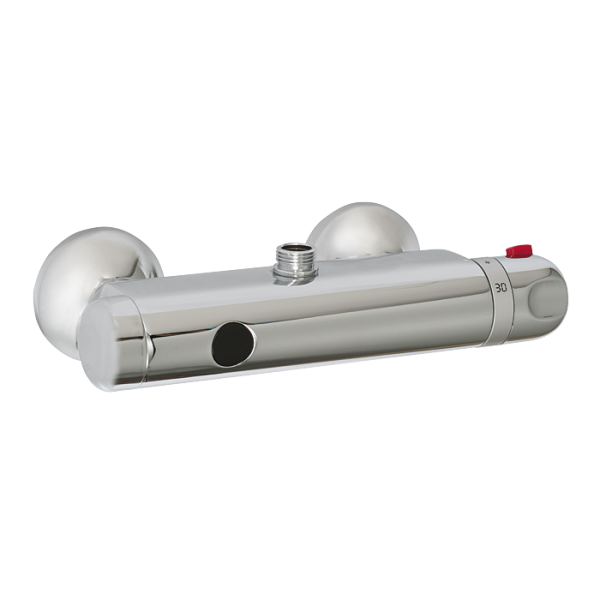

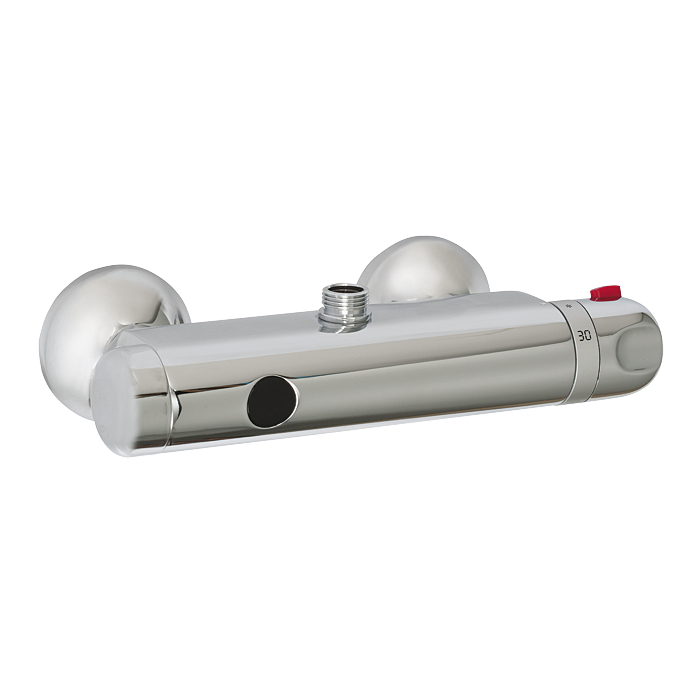

SLS 03
Wall-mounted shower control with thermostatic mixer, upper outlet, 24 V DC
Characteristics
- hygienic flush
- is destined for cold and hot water, temperature is regulated by thermostatic mixer
- with upper outlet
- safety fuse against scalding
- water is flowing as long as an user is in the active range
- water stops flowing after the user leaves the active range sensor after adjustable time delay (can be set in range 0,25 - 7,75 s), standard 2 s
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 02030
I am interested in more information:
Supply specification
SLS 03 - Supply No. 02030 - shower control with electronics, thermostat and electromagnetic valve, rosette (2 pcs.), chrome cover (2 pcs.), filter (2 pcs.), Alley key
Technical information
| Material: | chrome |
| Temperature regulation: | with thermostat |
| Power supply: | 24V DC |
| Control: | infra-red |
| Water inlet spacing: | 150 mm |
| Operating voltage: | 24 V DC |
| Active range: | standard 0,6 - 0,75 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Water inlet: | male thread G 1/2“ |
| Water outlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (1.58 MB)
- Catalogue list (189.11 kB)
- 2D Drawing (584.74 kB)
