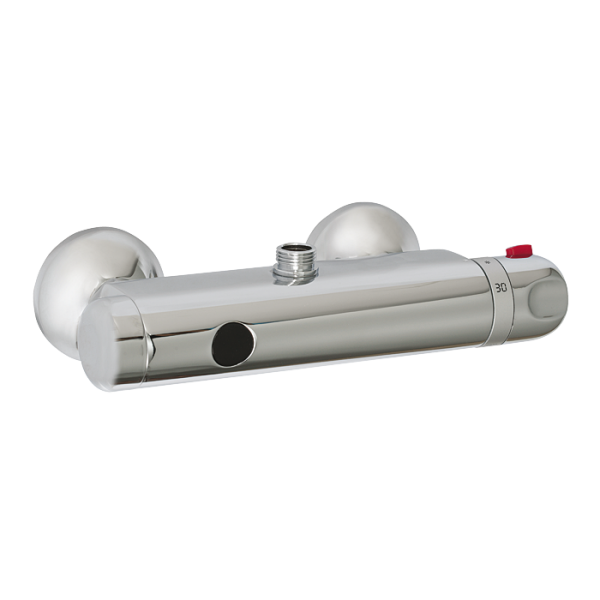

SLS 03B

Wall-mounted shower control with thermostatic mixer, upper outlet, 9 V

Characteristics

  • hygienic flush
  • is destined for cold and hot water, temperature is regulated by thermostatic mixer
  • with upper outlet
  • safety fuse against scalding
  • water is flowing as long as an user is in the active range
  • water stops flowing after the user leaves the active range sensor after adjustable time delay (can be set in range 0,25 - 7,75 s), standard 3 s
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
Order number 02036
Code SLS 03B

Supply specification

SLS 03B - Supply No. 02036 - shower control with electronics, thermostat and electromagnetic valve, rosette (2 pcs.), chrome cover (2 pcs.), filter (2 pcs.), Alley key, lithium battery SLA 09

Technical information

Water inlet spacing: 150 mm
Operating voltage: 9 V
Battery life: lithium 9 V, type U9VL (approx. 2 years (100 uses per day)
Active range: standard 0,6 - 0,75 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Water inlet: male thread G 1/2“
Water outlet: male thread G 1/2“
  • Print

Accessories

Lithium battery 9 V/1200 mAh, type U9VL
Remote control for an adjustment of…
