SLS 02P

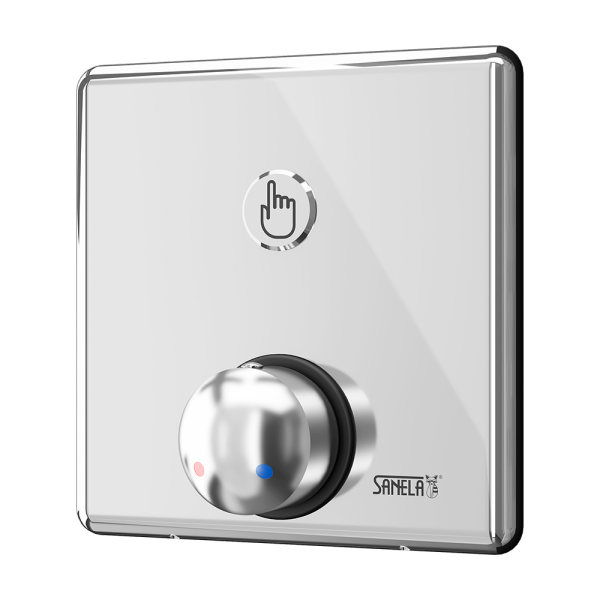

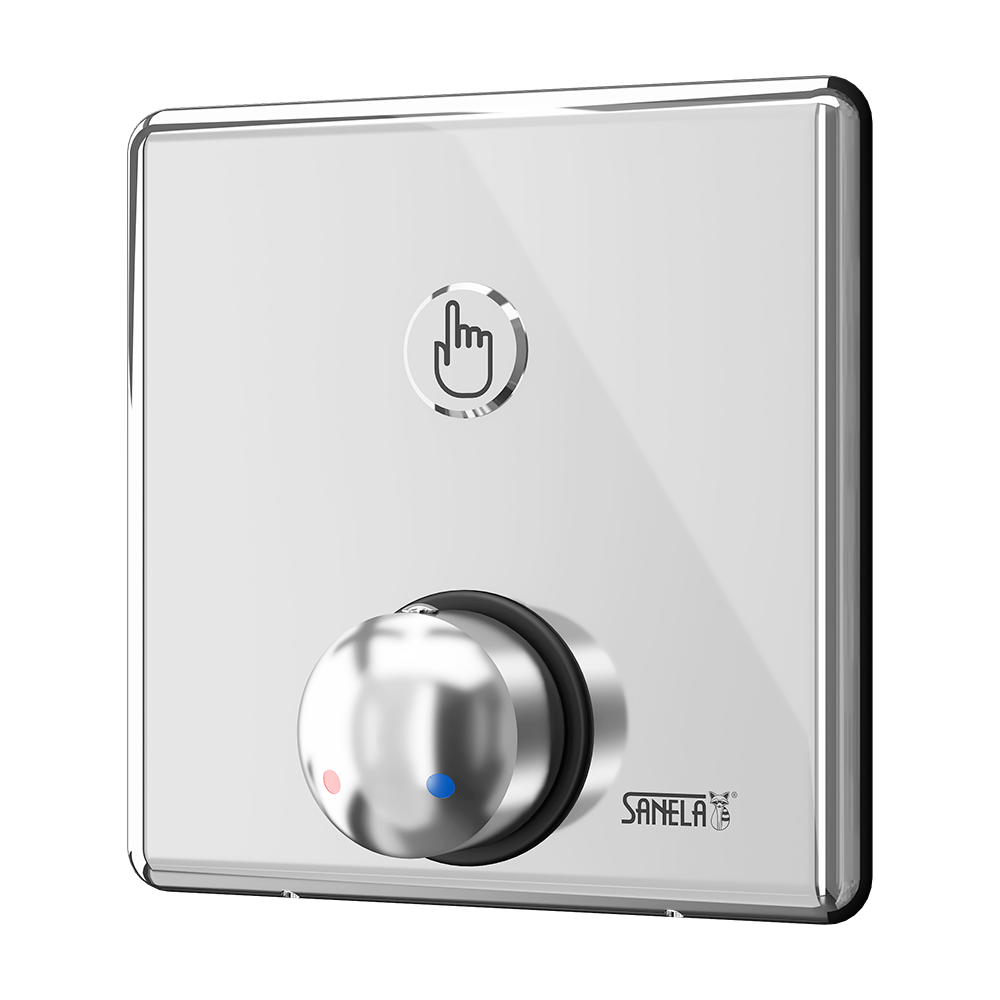

Piezo shower control with mixer for cold and hot water, 24 V DC

Characteristics

hygienic flush
vandal-proof
SLS 02P, SLS 02PB are destined for cold and hot water, temperature is regulated by mixer
safety fuse against scalding
water flows after soft push of the piezo button
water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
water could be stopped by follow-up soft push of piezo button
parameter adjustment using by the remote control SLD 04

Order number	12022
Code	SLS 02P

Supply specification

SLS 02P - Supply No. 12022 - stainless steel cover with electronics, stainelss steel mounting box with brass screw coupling, electromagnetic valve, ball valve and mixer

Technical information

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 150 x 160 x 65 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
