SLS 02PB

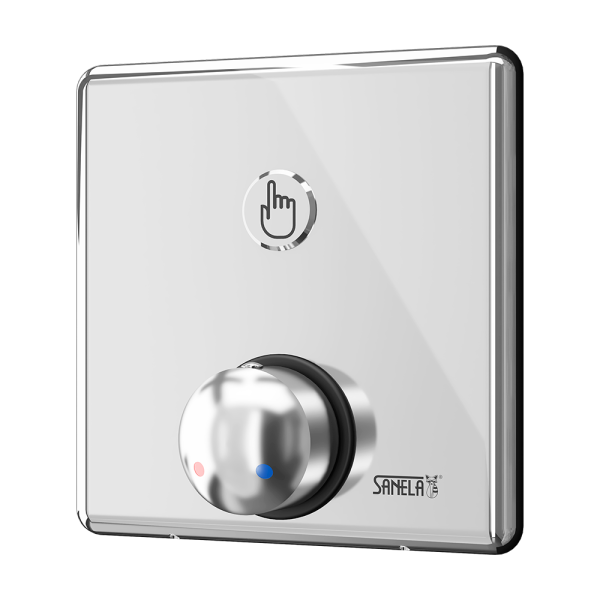

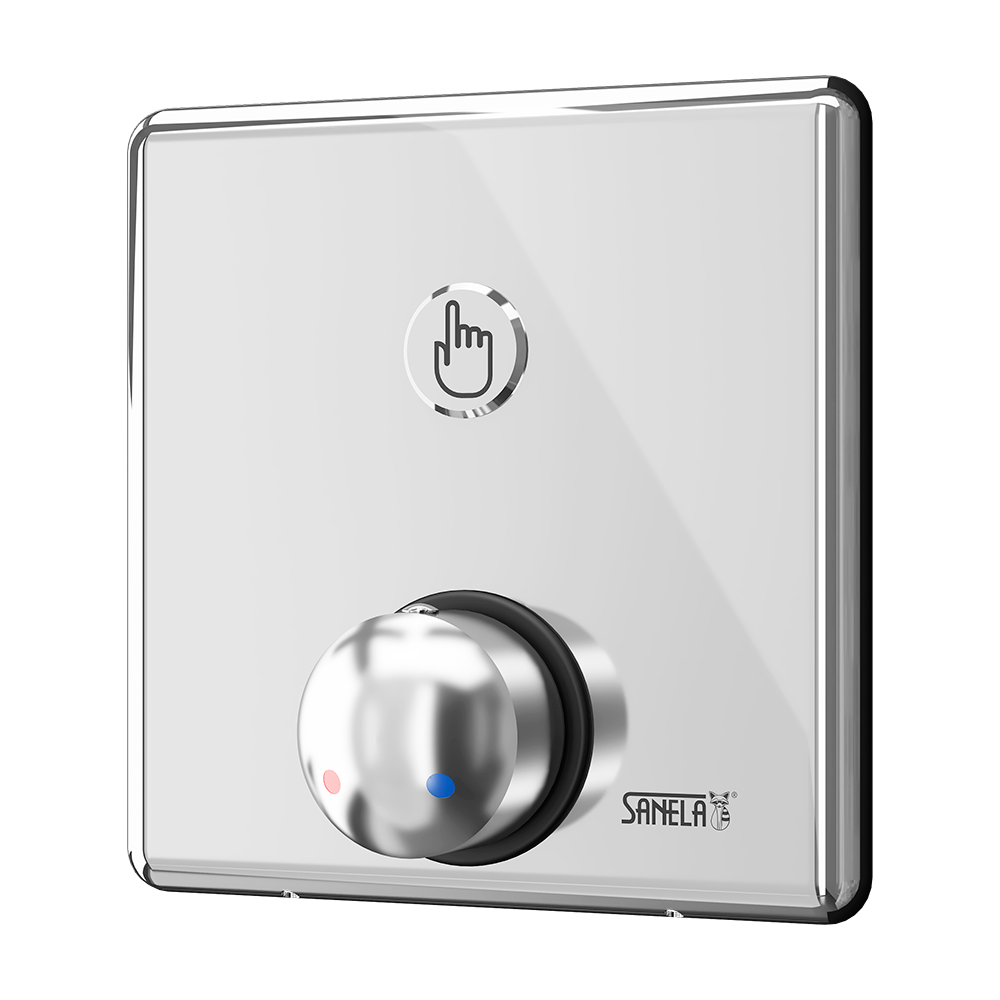

Piezo shower control with mixer for cold and hot water, 6 V

Characteristics

  • hygienic flush
  • vandal-proof
  • SLS 02P, SLS 02PB are destined for cold and hot water, temperature is regulated by mixer
  • safety fuse against scalding
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
  • water could be stopped by follow-up soft push of piezo button
  • monitoring of battery capacity
  • parameter adjustment using by the remote control SLD 04
  • Order number: 12023

Supply specification

SLS 02PB - Supply No. 12023 - stainless steel cover with electronics, stainelss steel mounting box with brass screw coupling, electromagnetic valve, ball valve and mixer, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh

Technical information

material: stainless steel
temperature regulation: with mixer
power supply: battery operated
control: piezo
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 150 x 160 x 65 mm
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day)
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
