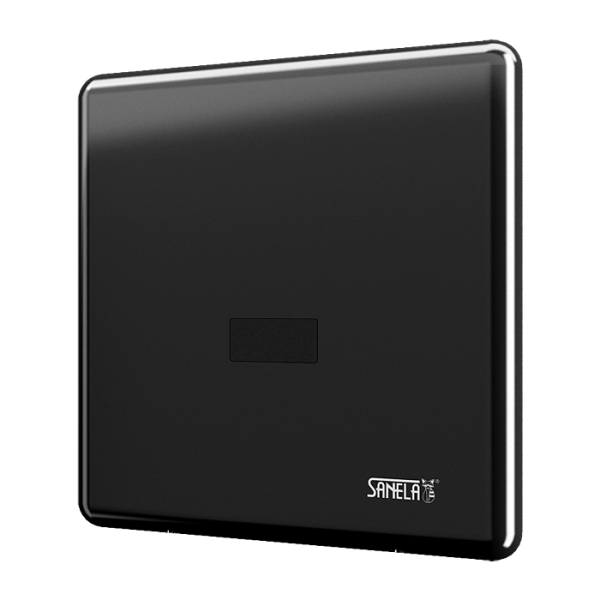

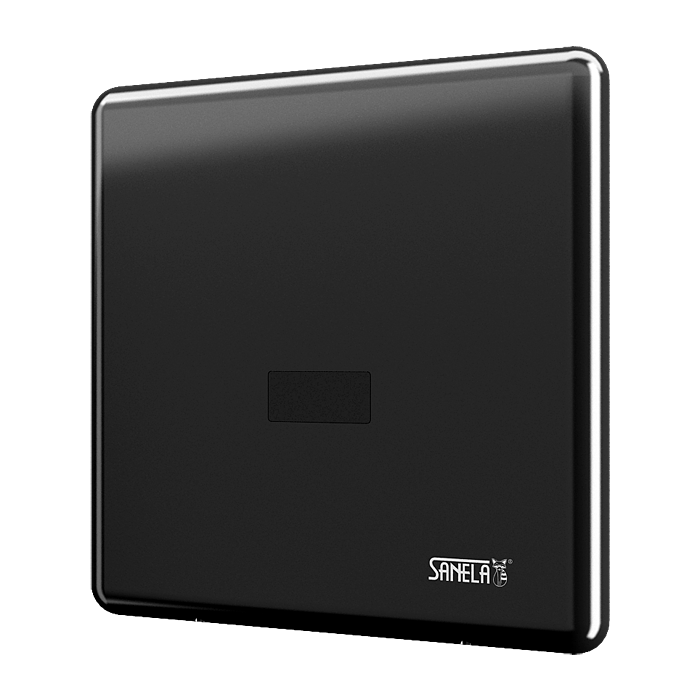

SLS 01AKVB
Shower control with mounting box, black, 6 V
Characteristics
- hygienic flush
- is destined for cold or premixed water
- water is flowing as long as an user is in the active range
- water stops flowing after the user leaves the active range sensor after adjustable time delay (can be set in range 0,25 - 7,75 s), standard 2 s
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 12007
I am interested in more information:
Supply specification
SLS 01AKVB - Supply No. 12007 - black stainless steel cover with electronics, plastic mounting box with brass screw, coupling, electromagnetic valve and ball valve, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Technical information
| Material: | stainless steel |
| Temperature regulation: | for cold or premixed water |
| Power supply: | battery operated |
| Control: | infra-red |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 140 x 140 x 75 mm |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V 2700 mAh (approx. 2 years (100 uses per day) |
| Active range: | standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 12 l/min. (inf. data) |
| Water inlet: | male thread G 3/4“ |
| Water outlet: | male thread G 3/4“ |
Downloads
- Mounting instructions (2.62 MB)
- Catalogue list (207.75 kB)
- 2D Drawing (155.49 kB)
