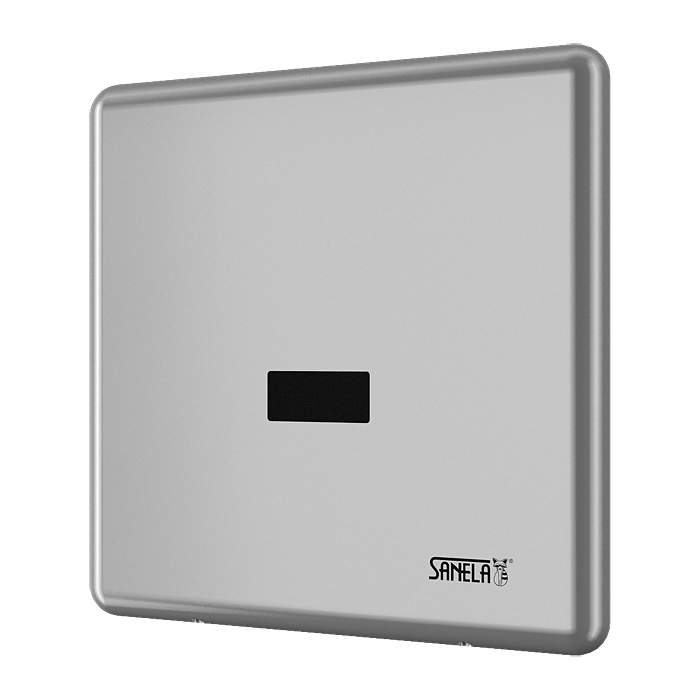

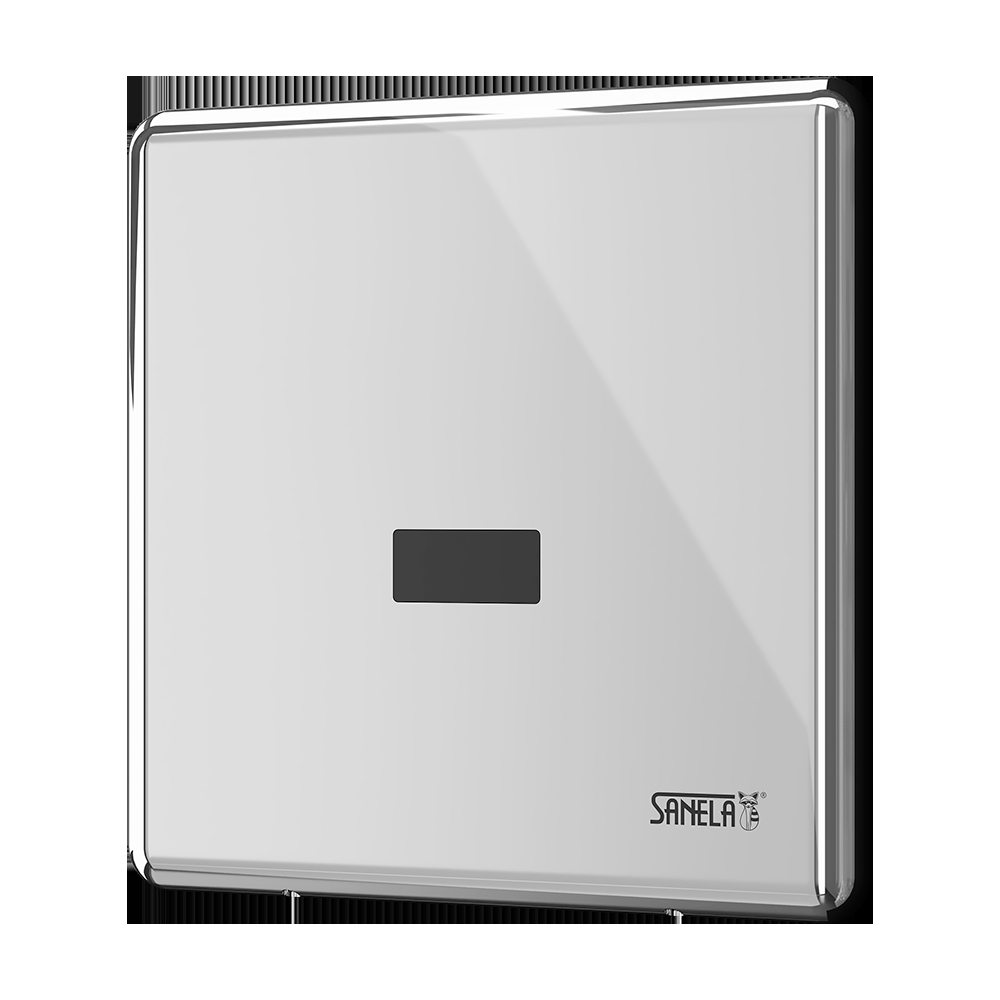

SLS 01AKB

Shower control with mounting box, 6 V

Characteristics

  • hygienic flush
  • is destined for cold or premixed water
  • water is flowing as long as an user is in the active range
  • water stops flowing after the user leaves the active range sensor after adjustable time delay (can be set in range 0,25 - 7,75 s), standard 3 s
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 12017
I am interested in more information:

Supply specification

SLS 01AKB - Supply No. 12017 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, 4 pcs. AA alkaline bateries 1,5 V, 2700 mAh

Technical information

material: stainless steel
temperature regulation: for cold or premixed water
power supply: battery operated
control: infra-red
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAH (approx. 2 years (100 uses per day)
Active range: standard 0,27 - 0,35 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
