SLPN 04C

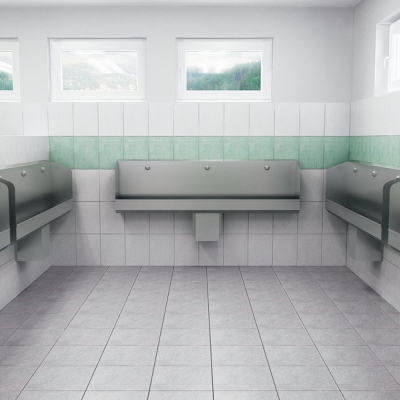

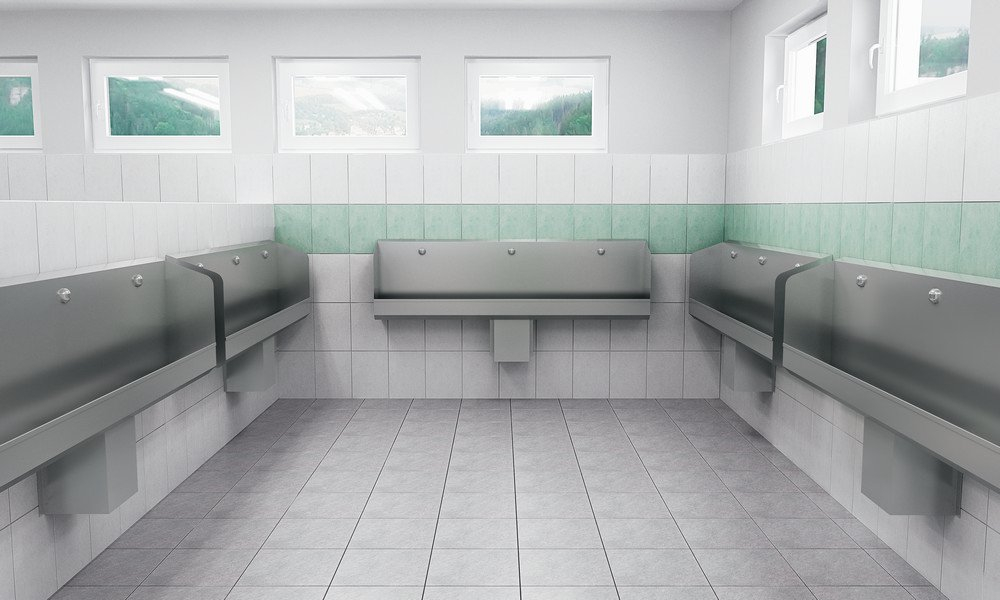

Stainless steel automatic urinal through with integrated thermic flushing unit, 1800 mm, 24 V DC

Characteristics

  • vandal-proof
  • stainless steel wall hung urinal trough with integrated electronics
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04
  • automatic hygiene flushing after 24 hours non-use
  • different lenghts could be made to order
  • material AISI - 304
  • brushed finish
  • Order number: 91043
I am interested in more information:

Supply specification

SLPN 04C - Supply No. 91043 - stainless steel urinal trough 1800 mm with flushing head (3 pcs.), electronics (1 pc.), electromagnetic valve (1 pc.), angle valve with a filter, mounting set, cover for siphon, siphon

Technical information

trough type: wall hung
category: urinal trough
power supply: 24V DC
control: thermic
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Remote control for an adjustment of…
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply for 1 washbasin…
