SLPN 04CB

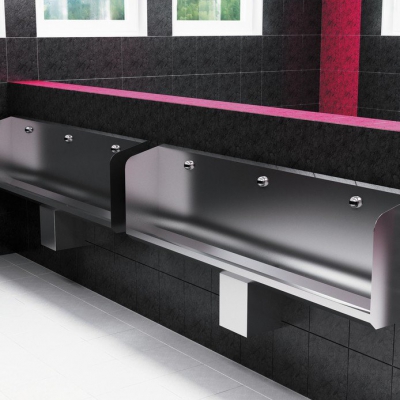

Stainless steel automatic urinal through with integrated thermic flushing unit, 1800 mm, 6 V

Characteristics

  • vandal-proof
  • stainless steel wall hung urinal trough with integrated electronics
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04
  • automatic hygiene flushing after 24 hours non-use
  • different lenghts could be made to order
  • material AISI - 304
  • brushed finish
  • Order number: 91044

Supply specification

SLPN 04CB - Supply No. 91044 - stainless steel urinal trough 1800 mm with flushing head (3 pcs.), electronics (1 pc.), electromagnetic valve (1 pc.), angle valve with a filter, mounting set, cover for siphon, siphon, 4 pcs. AA alkaline batteries 1,5 V 2700 mAh

Technical information

trough type: wall hung
category: urinal trough
power supply: battery operated
control: thermic
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries approx. 2 years AA, 1,5 V, 2700 mAh (100 uses per day)
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Set of 4 pcs. of alcaline batteries
Remote control for an adjustment of…
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
