SLP 99 Verity 2.0 7500

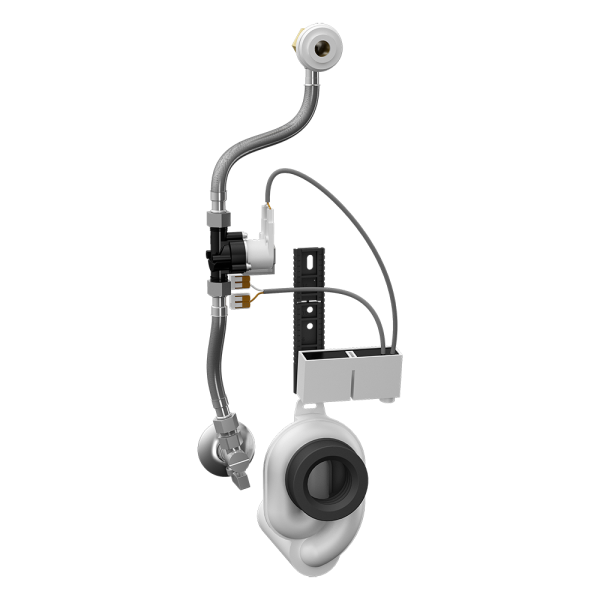

Radar flushing unit for urinal Verity 2.0 7500
Characteristics

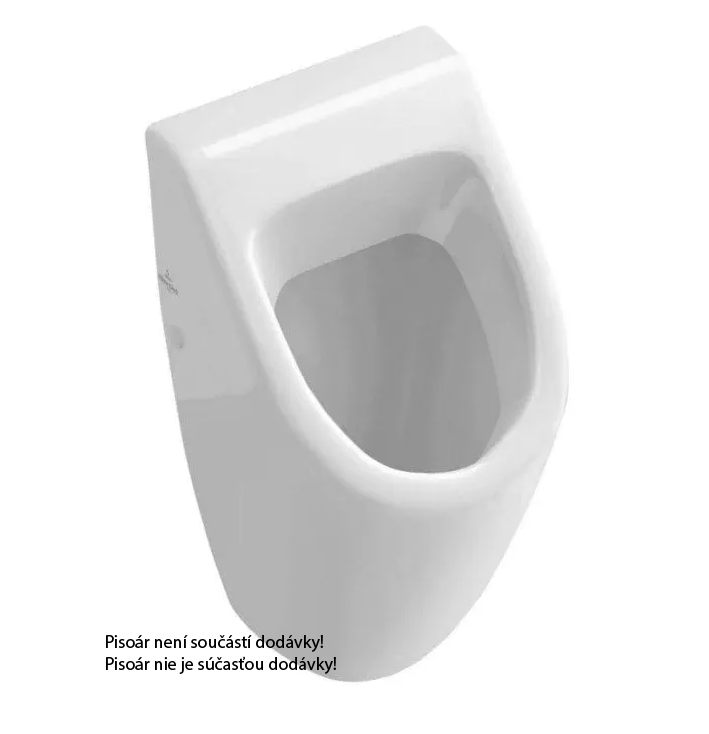

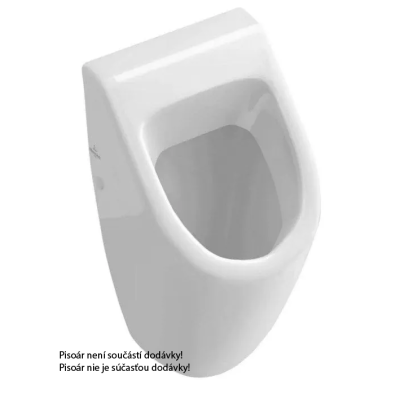

- DESIGNED FOR URINAL VERITY 2.0 7500 (Villeroy & Boch)
- includes Bluetooth Control (Sanela Control app available for download)
- THE URINAL DOES NOT NEED TO BE SENT FOR ASSEMBLY (RADAR UNIT IS SUPPLIED SEPARATELY)
- SLP 99S - pre-wall assembly (water inlet is provided by flexible hoses)
- SLP 99Z - 230 V AC, including power supply
- SLP 99B - 6 V, including case with 4 pcs of power supply batteries
- economical flushing with one liter of water
- the entire flushing system is located behind the urinal
- responds only to urinal use (evaluates changes, that occur inside the urinal during fluid flow)
- flushing duration is adjustable from 0.5 to 15.5 seconds
- parameter settings and communication with electronics via Sanela Control application (Bluetooth) or remote control SLD 04 without the need to dismantle the urinal (acoustic indication of setting)
- automatic flushing 6 hours after the last activation of the valve
- possibility to regulate water flow with an angle valve
- The product meets the water consumption parameters for class 1 according to the criteria of the EU Water Label program
I am interested in more information:
Supply specification

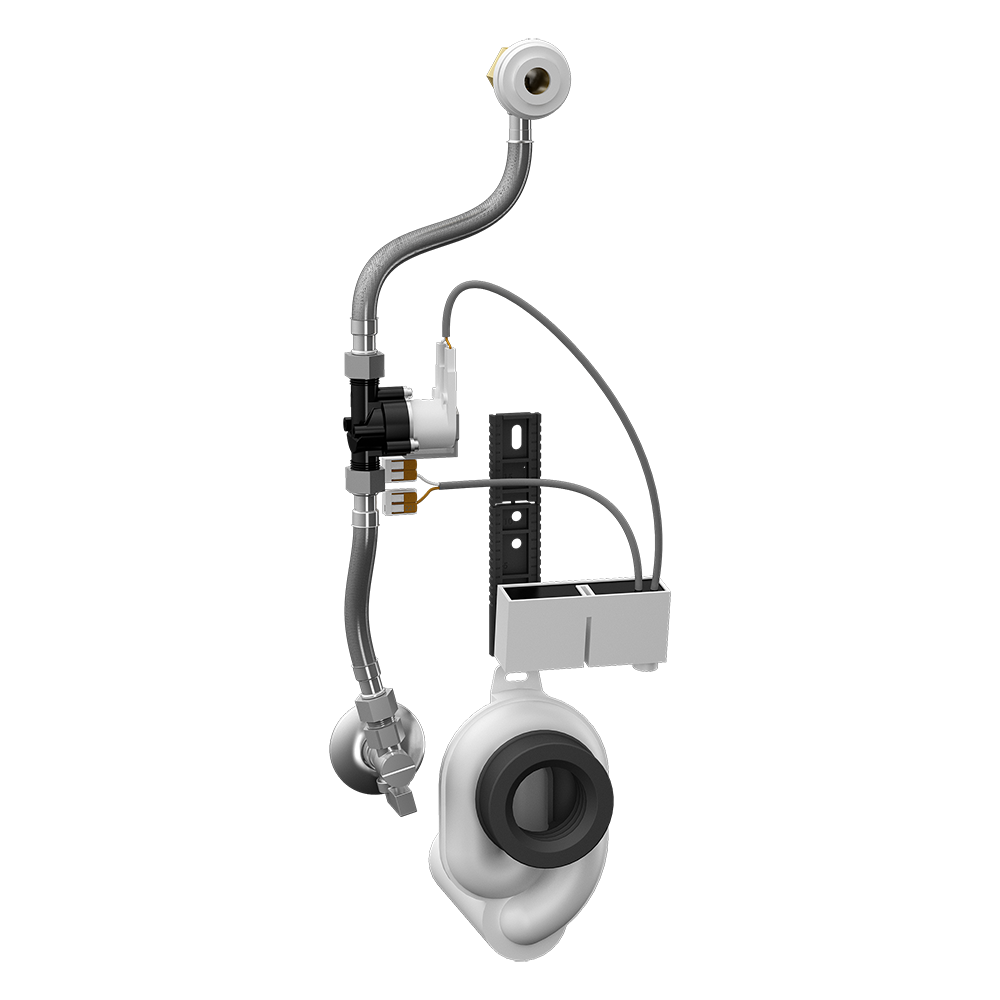

SLP 99S - Supply No. 21992 - radar flush including Bluetooth module on mounting rail, solenoid valve, connecting hose, angle valve, outlet fitting with gasket, trap
SLP 99Z - Supply No. 21994 - radar flush including Bluetooth module on mounting rail, solenoid valve, connecting hose, angle valve, outlet fitting with gasket, trap, power supply
SLP 99B - Supply No. 21996 - radar flush including Bluetooth module on mounting rail, solenoid valve, connecting hose, angle valve, outlet fitting with gasket, trap, 4 pcs AA alkaline batteries 1.5 V, 2700 mAh with case
Technical information
| Supply voltage: | SLP 99S - 24 V DC |
| |
SLP 99Z - 230 V AC/50 Hz |
| |
SLP 99B - 6 V |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (inf. data) |
| Water inlet: | external thread G 1/2“ |
| Water outlet: | outlet fitting with gasket |
Downloads
- Catalogue list (493.3 kB)
- Mounting diagram (395.67 kB)
