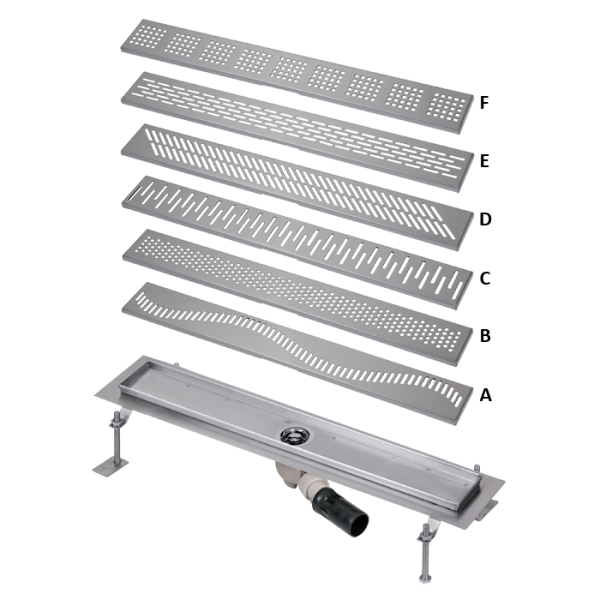

SLKN 17A(X) - SLKN 17F(X)

Bathroom floor drain assembled in the open space, 850 mm

Characteristics

BATHROOM DRAIN

  • length L = 850 mm
  • collar serves for a tight and reliable connection to hydro-isolation
  • collar with the frame sealed up against the moisture
  • mounting legs with M10 screws for better seating of the drain to the floor (horizontal position)
  • 2 pcs. of waterproofing tapes for fixation to base, including screws and wall plugs
  • side bends for better stability
  • bond screw for connection with bonding conductor
  • different lenghts could be made to order (till 1200 mm - depression to the waste, over 1200 mm - decline to the waste)
  • load class K3 (till 300 kg)
  • material AISI-304

WASTE OUTLET

  • plastic siphon DN 50 mm
  • according to the norm DIN EN 274; rate of flow 42 l/min
  • possibility od adjustment of the direction and the slope of the drain to 20°
  • different siphon positions could be made to order

GRID

  • design of grids A - F
  • index X - brushed finish
  • material stainless steel AISI - 304
  • other designs could be made to order
  • Order number: 69171

Supply specification

SLKN 17A - Supply No. 69171
SLKN 17AX- Supply No. 68171
SLKN 17B - Supply No. 69172
SLKN 17BX- Supply No. 68172
SLKN 17C - Supply No. 69173
SLKN 17CX- Supply No. 68173
SLKN 17D - Supply No. 69174
SLKN 17DX- Supply No. 68174
SLKN 17E - Supply No. 69175
SLKN 17EX - Supply No. 68175
SLKN 17F - Supply No. 69176
SLKN 17FX - Supply No. 68176

drain, siphon, mounting legs with M10 screw (4 pcs.), tool for grid remove, waterproofing tape, mounting set

Technical information

type: bathroom
installation: in the open space
length: 850 mm
