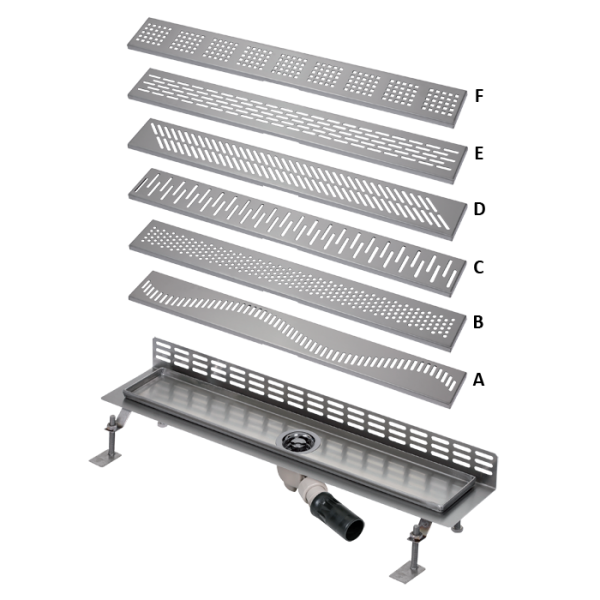

SLKN 06A(X) - SLKN 06F(X)

Bathroom floor drain assembled near by the wall, 750 mm

Characteristics

BATHROOM DRAIN

  • length L = 750 mm
  • collar serves for a tight and reliable connection to hydro-isolation
  • collar with the frame sealed up against the moisture
  • mounting legs with M10 screws for better seating of the drain to the floor (horizontal position)
  • 2 pcs. of waterproofing tapes for fixation to base, including screws and wall plugs
  • side bends for better stability
  • bond screw for connection with bonding conductor
  • different lenghts could be made to order (till 1200 mm - depression to the waste, over 1200 mm - decline to the waste)
  • load class K3 (till 300 kg)
  • material AISI-304

WASTE OUTLET

  • plastic siphon DN 50 mm
  • according to the norm DIN EN 274; rate of flow 42 l/min
  • possibility od adjustment of the direction and the slope of the drain to 20°
  • different siphon positions could be made to order

GRID

  • design of grids A - F
  • index X - brushed finish
  • material stainless steel AISI - 304
  • other designs could be made to order
  • Order number: 69061
I am interested in more information:

Supply specification

SLKN 06A - Supply No. 69061
SLKN 06AX- Supply No. 68061
SLKN 06B - Supply No. 69062
SLKN 06BX- Supply No. 68062
SLKN 06C - Supply No. 69063
SLKN 06CX- Supply No. 68063
SLKN 06D - Supply No. 69064
SLKN 06DX- Supply No. 68064
SLKN 06E - Supply No. 69065
SLKN 06EX - Supply No. 68065
SLKN 06F - Supply No. 69066
SLKN 06FX - Supply No. 68066

drain, siphon, mounting legs with M10 screw (4 pcs.), tool for grid remove, waterproofing tape, mounting set

Technical information

Type: bathroom
Length: 750 mm
Installation: near by the wall

Downloads
