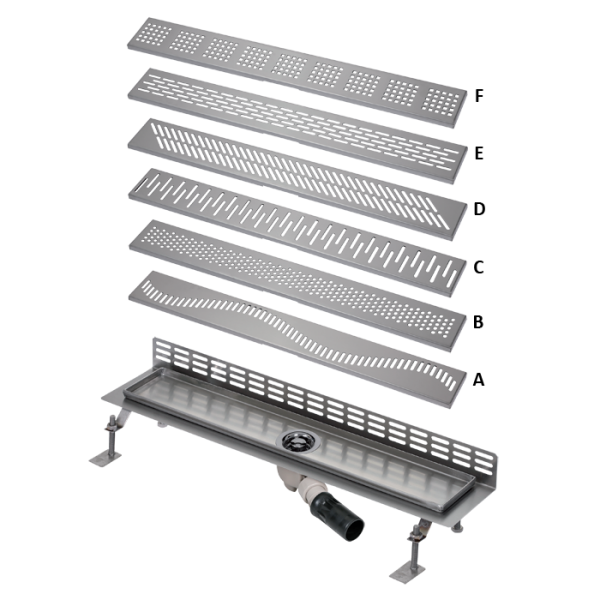

SLKN 08A(X) - SLKN 08F(X)
Bathroom floor drain assembled near by the wall, 1150 mm
Characteristics
BATHROOM DRAIN
- length L = 1150 mm
- collar serves for a tight and reliable connection to hydro-isolation
- collar with the frame sealed up against the moisture
- mounting legs with M10 screws for better seating of the drain to the floor (horizontal position)
- 2 pcs. of waterproofing tapes for fixation to base, including screws and wall plugs
- side bends for better stability
- bond screw for connection with bonding conductor
- different lenghts could be made to order (till 1200 mm - depression to the waste, over 1200 mm - decline to the waste)
- load class K3 (till 300 kg)
- material AISI-304
WASTE OUTLET
- plastic siphon DN 50 mm
- according to the norm DIN EN 274; rate of flow 42 l/min
- possibility od adjustment of the direction and the slope of the drain to 20°
- different siphon positions could be made to order
GRID
- design of grids A - F
- index X - brushed finish
- material stainless steel AISI - 304
- other designs could be made to order
- Order number: 69081
I am interested in more information:
Supply specification
SLKN 08A - Supply No. 69081
SLKN 08AX- Supply No. 68081
SLKN 08B - Supply No. 69082
SLKN 08BX- Supply No. 68082
SLKN 08C - Supply No. 69083
SLKN 08CX- Supply No. 68083
SLKN 08D - Supply No. 69084
SLKN 08DX- Supply No. 68084
SLKN 08E - Supply No. 69085
SLKN 08EX - Supply No. 68085
SLKN 08F - Supply No. 69086
SLKN 08FX - Supply No. 68086
drain, siphon, mounting legs with M10 screw (4 pcs.), tool for grid remove, waterproofing tape, mounting set
Technical information
| Type: | bathroom |
| Length: | 1150 mm |
| Installation: | near by the wall |
Downloads
- Mounting instructions (1.62 MB)
- Catalogue list (373.93 kB)
- 2D Drawing (353.25 kB)
