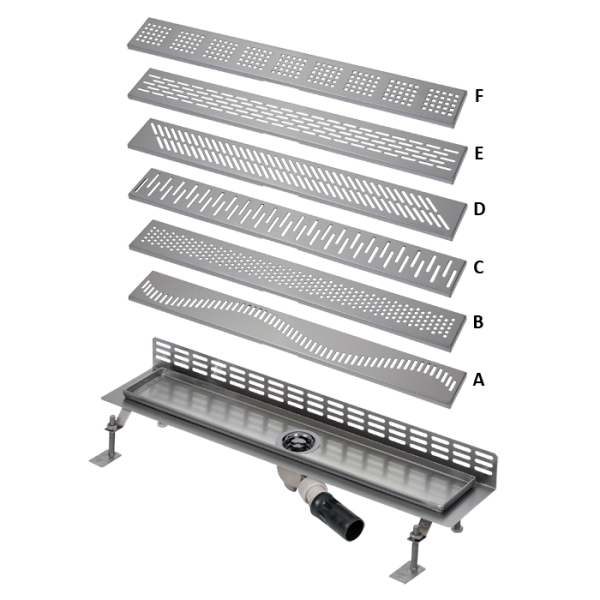

SLKN 07A(X) - SLKN 07F(X)
Bathroom floor drain assembled near by the wall, 950 mm
Characteristics
BATHROOM DRAIN
- length L = 950 mm
- collar serves for a tight and reliable connection to hydro-isolation
- collar with the frame sealed up against the moisture
- mounting legs with M10 screws for better seating of the drain to the floor (horizontal position)
- 2 pcs. of waterproofing tapes for fixation to base, including screws and wall plugs
- side bends for better stability
- bond screw for connection with bonding conductor
- different lenghts could be made to order (till 1200 mm - depression to the waste, over 1200 mm - decline to the waste)
- load class K3 (till 300 kg)
- material AISI-304
WASTE OUTLET
- plastic siphon DN 50 mm
- according to the norm DIN EN 274; rate of flow 42 l/min
- possibility od adjustment of the direction and the slope of the drain to 20°
- different siphon positions could be made to order
GRID
- design of grids A - F
- index X - brushed finish
- material stainless steel AISI - 304
- other designs could be made to order
- Order number: 69071
I am interested in more information:
Supply specification
SLKN 07A - Supply No. 69071
SLKN 07AX- Supply No. 68071
SLKN 07B - Supply No. 69072
SLKN 07BX- Supply No. 68072
SLKN 07C - Supply No. 69073
SLKN 07CX- Supply No. 68073
SLKN 07D - Supply No. 69074
SLKN 07DX- Supply No. 68074
SLKN 07E - Supply No. 69075
SLKN 07EX - Supply No. 68075
SLKN 07F - Supply No. 69076
SLKN 07FX - Supply No. 68076
drain, siphon, mounting legs with M10 screw (4 pcs.), tool for grid remove, waterproofing tape, mounting set
Technical information
| Type: | bathroom |
| Length: | 950 mm |
| Installation: | near by the wall |
Downloads
- Mounting instructions (1.62 MB)
- Catalogue list (373.78 kB)
- 2D Drawing (323.69 kB)
