SLZA 31

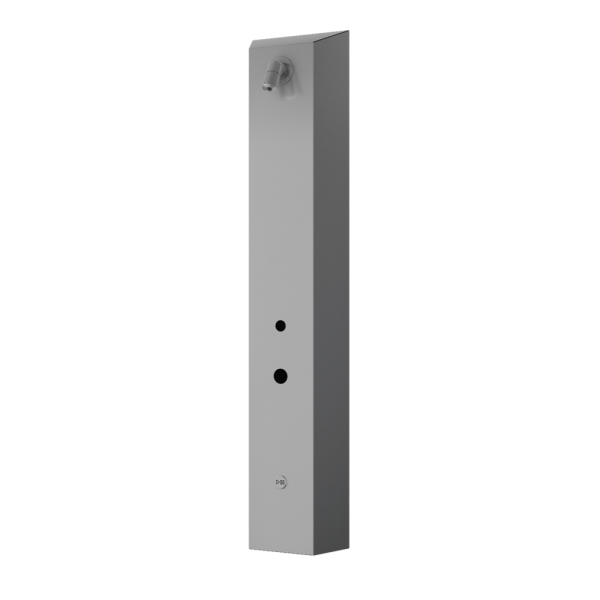

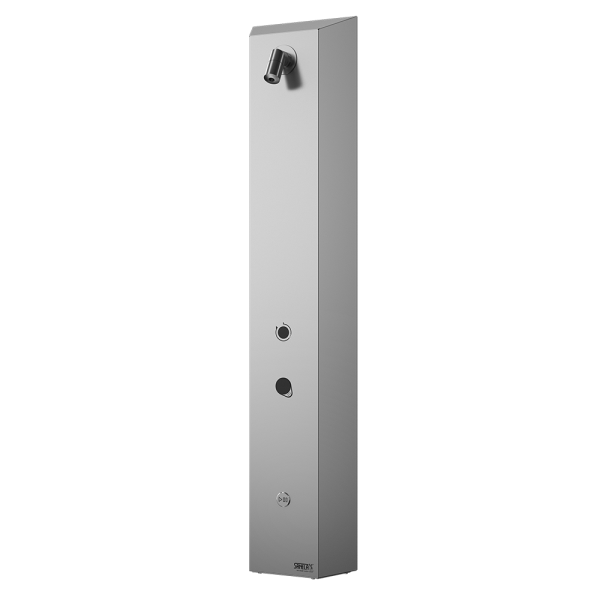

Stainless steel RFID token shower panel, for cold or premixed water, 24 V DC

Characteristics

  • hygienic flush
  • stainless steel RFID token wall hung panels with integrated mechanical control of water and reader of RFID tokens SLZA 51
  • SLZA 31 is destined for cold and premixed water
  • after inserting the charged token SLZA 51 into the panel, it is indicated by flashing the red diode
  • system reacts on the push of the button by immediate water flow and lighting on the ten red diods, which with gradual lighting off counts down the shower time
  • the user can start and stop the water directly in the shower
  • 30 % of the time paid before the end of the water supply, the user is notified by interruption of the water flow
  • by taking out the token during the shower the whole sequence restarts and after repeated inserting the process starts again from beginning
  • parameter adjustment using by the setting token
  • material AISI - 304
  • brushed finish
  • Order number: 89310

Supply specification

SLZA 31 - Supply No. 89310 - stainless steel shower planel with electronics and credit value reader on token, shower head with a possibility to set an angle of water flow, electromagnetic valve (1 pc.), connecting hoses, angle valve with filter (1 pc.)

Technical information

Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2"
