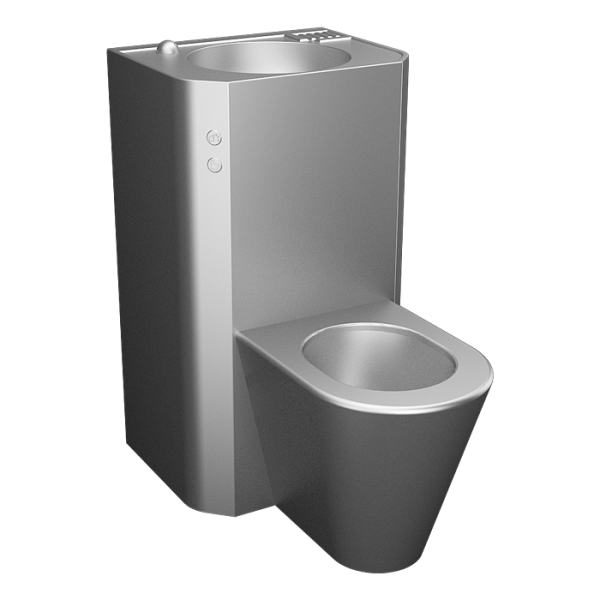

Vandal-proof piezo combination unit, hanging toilet, threaded rods, 24 V DC​


  • vandal-proof
  • suitable for prison
  • piezo combination with toilet, washbasin, washbasin spout and a toilet paper hole
  • piezo button for washbasin spout
  • piezo button for toilet flushing
  • SLWN 28ZP - hanging toilet
  • filled with expanded polyurethane (to avoid dents and typical metal noise)
  • rear assembling by screws (M10, length 190 mm) from the service room
  • water flows (or flushing the toilet) after soft push of the piezo button
  • water stops flowing after adjustable flowing time (by washbasin can be set in 2 - 62 s, standard 10 s and by toilet can be set in 0,5 – 15,5 s, standard 8 s)
  • water could be stopped by follow-up soft push of piezo button
  • automatic hygiene flush after each eight flush or 24 hours non using of toilet
  • parameters adjustment by remote control SLD 04
  • material AISI - 304
  • brushed finish
  • Order number: 94285
I am interested in more information:

Supply specification

SLWN 28ZP - Supply No. 94285 - stainless steel combination unit with toilet and washbasin, piezo electronics (2 pcs.), washbasin spout, screws M6 (6 pcs.)

Technical information

Installation: from the service room (M10 screws)
Combi unit type: straight
Combi unit type: with piezo
Toilet type: hanging
Category: combination unit
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 70 l/min. by the pressure 0,15 MPa (inf. data)
Water inlet: Ø min. 32 mm (PN 16) male thread G 1″



Remote control for an adjustment of…
External power supply 230 V AC/24 V DC,…
External power supply 230 V AC/24 V DC,…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
