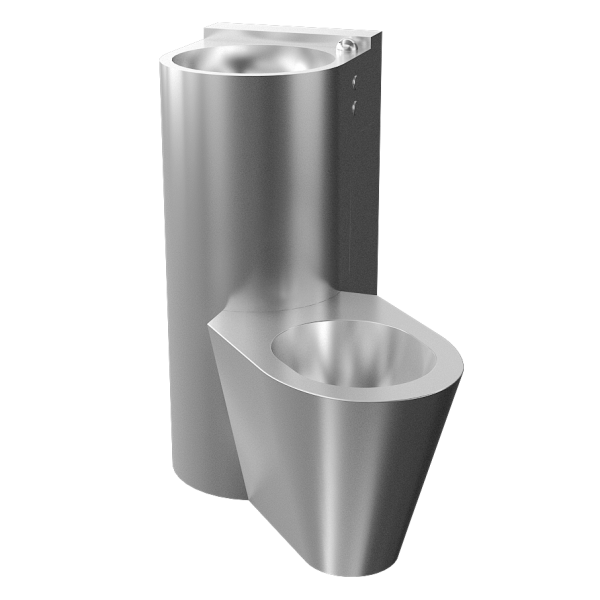

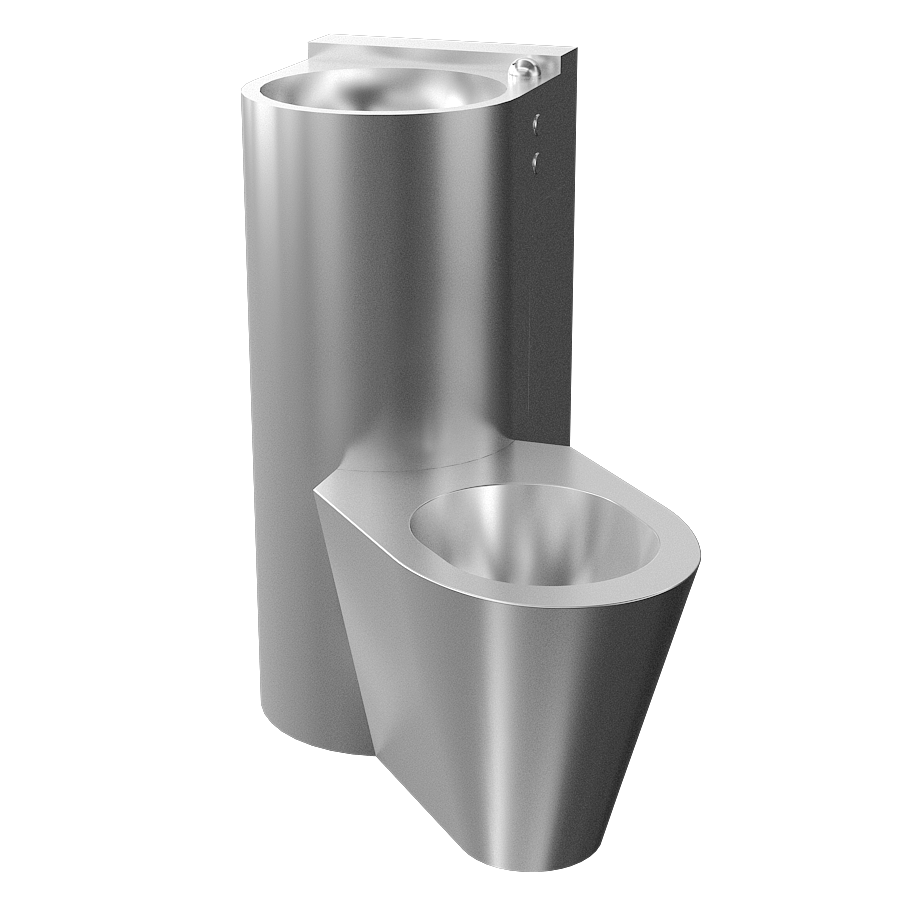

SLWN 18PP
Vandal-proof piezo corner combination unit, floor standing toilet on the right side
Characteristics
- vandal-proof
- suitable for prison
- piezo corner combination with toilet, washbasin and washbasin spout
- piezo button for washbasin spout
- piezo button for toilet flushing
- SLWN 18PP - floor standing toilet on the right side
- filled with expanded polyurethane (to avoid dents and typical metal noise)
- rear assembling through the service hatch
- water flows (or flushing the toilet) after soft push of the piezo button
- water stops flowing after adjustable flowing time (by washbasin can be set in 2 - 62 s, standard 10 s and by toilet can be set in 0,5 – 15,5 s, standard 8 s)
- water could be stopped by follow-up soft push of piezo button
- automatic hygiene flush after each eight flush or 24 hours non using of toilet
- parameters adjustment by remote control SLD 04
- material AISI - 304
- brushed finish
- Order number: 94185
I am interested in more information:
Supply specification
SLWN 18PP - Supply No. 94185 - stainless steel combination unit with toilet and washbasin, piezo electronics (2 pcs.), washbasin spout, mounting set
Technical information
Combi unit type: | corner |
Combi unit type: | with piezo |
Toilet type: | standing |
Installation: | wall hung |
Category: | combination unit |
Operating voltage: | 24 V DC |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 70 l/min. by the pressure 0,15 MPa (inf. data) |
Water inlet: | Ø min. 32 mm (PN 16) male thread G 1″ |
Downloads
- Mounting instructions (5.36 MB)
- Catalogue list (385.54 kB)
- 2D Drawing (244.41 kB)
