SLW 10P

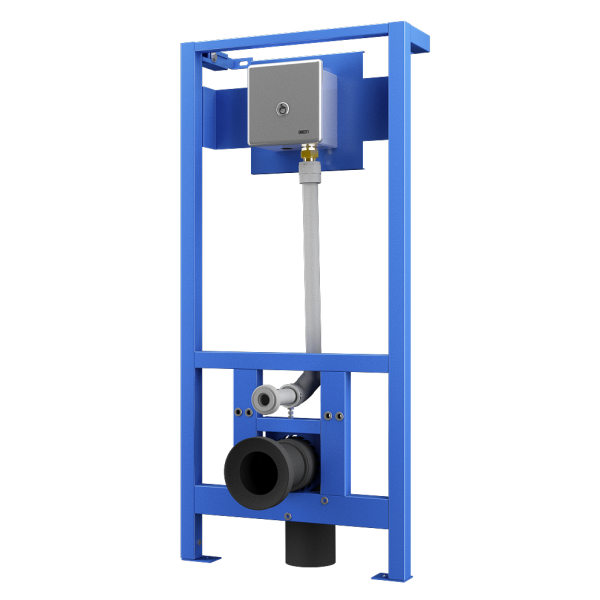

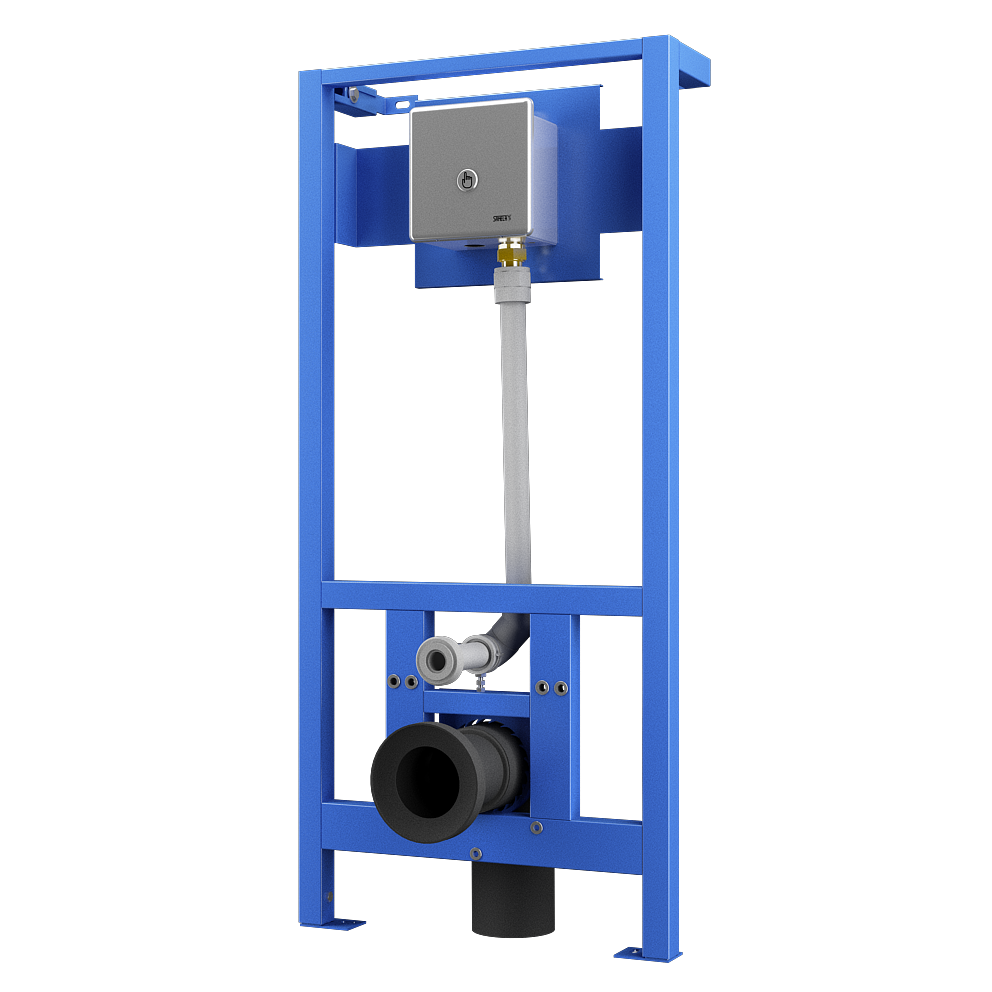

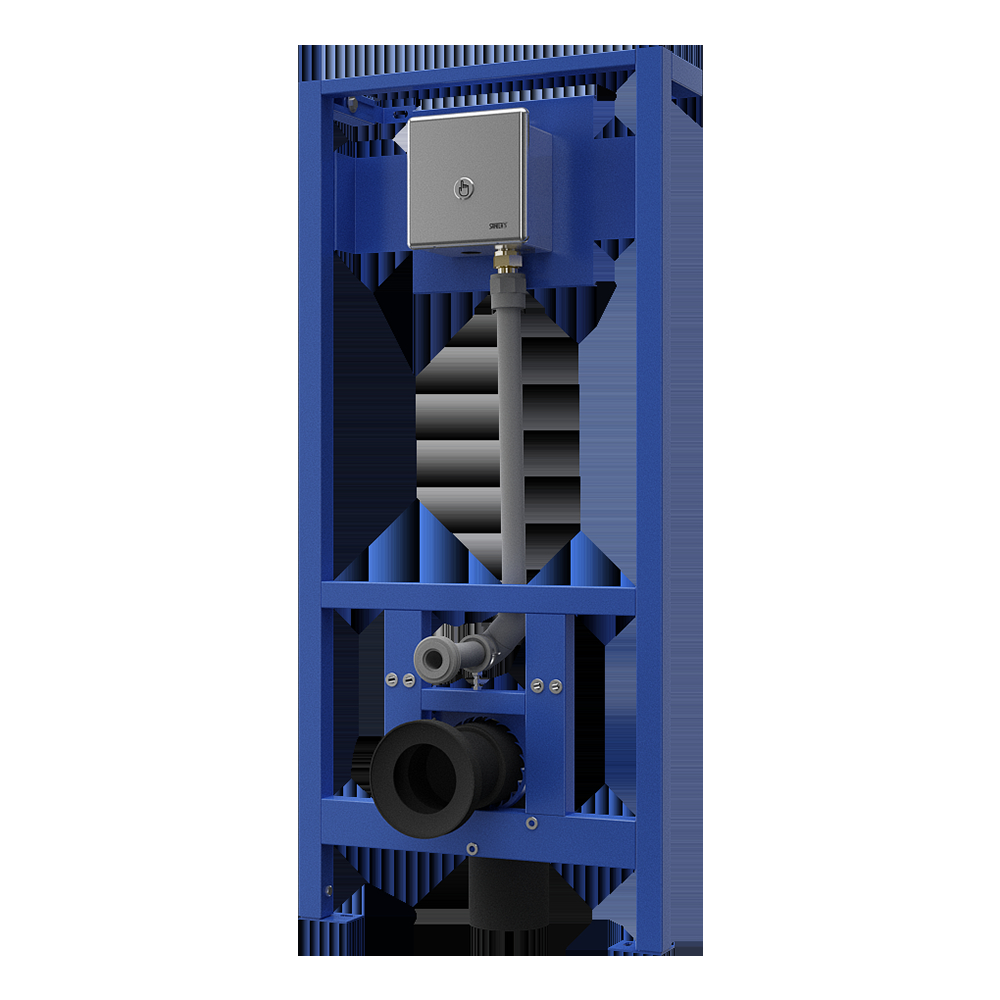

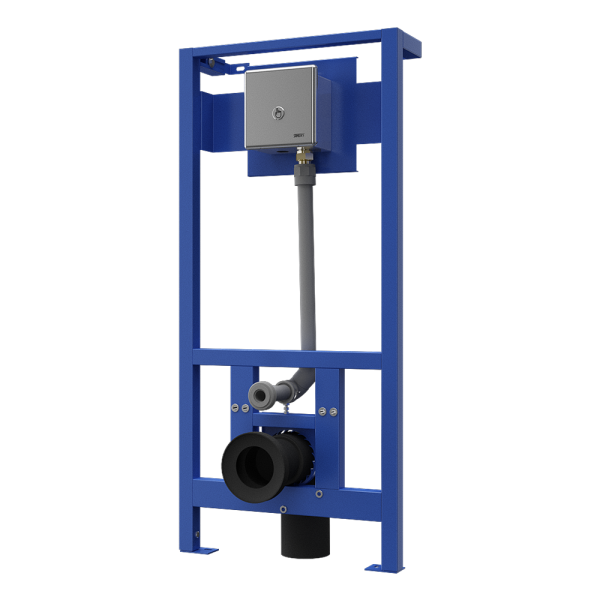

Set of SLW 01P and SLR 03, 24 V DC

Characteristics

  • vandal-proof
  • including pre-installed mounting frame SLR 03
  • is destined for the brick wall
  • five-point system for fixing of stainless steel toilets
  • metal frame construction with surface finishing - blue powder coated
  • mounting screws M10, waste pipe holder with connecting set Ø 50 mm and waste pipe holder with the elbow pipe Ø 110 mm
  • toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
  • water flows after soft push of the piezo button
  • adjustable flushing time 0,5 - 15,5 s, standard 8 s
  • automatic hygiene flush after each eighth flush or 24 hours non using of toilet
  • parameters adjustment by remote control SLD 04
  • Order number: 04103
I am interested in more information:

Supply specification

SLW 10P - Supply No. 04103 - stainless steel cover with electronics, stainless steel mounting box with brass screw coupling and electromagnetic valve, inlet fitting with a rubber sealing, mounting frame SLR 03

Technical information

flushing type: for a pressured water
material: stainless steel
power supply: 24V DC
control: piezo
Stainless steel cover dimension: 170 x 160 x 10 mm
Mounting box dimension: 150 x 150 x 100 mm
Mounting frame dimensions: 1120 - 1290 x 510 x 155 - 235 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,15 - 0,6 MPa
Rate of flow: 60 l/min. (inf. data)
Water inlet: male thread G 1″
Water outlet: inlet fitting with a rubber sealing
